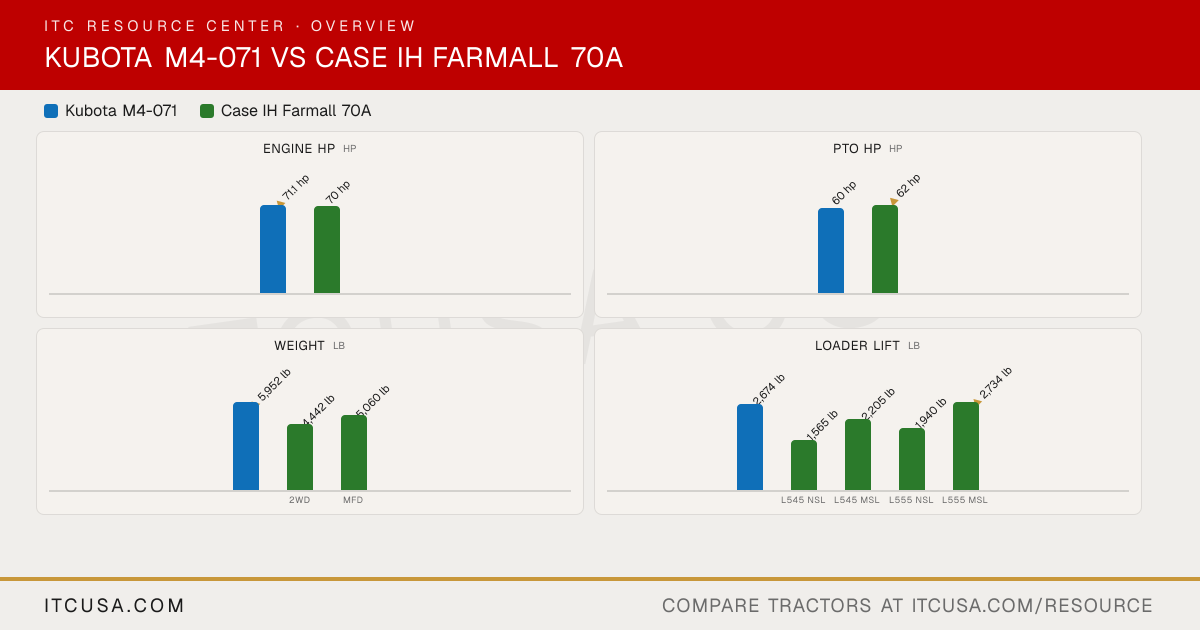

▶ EngineEngine Manufacturer Kubota FPT Engine Model V3307-CR-TE4 R 753 IE4 Engine Type 4-cylinder, turbocharged, common-rail diesel 3-cylinder, FPT turbocharged & aftercooled No. of Cylinders 4 3 Displacement 203 in³ 135.9 in³ Rated Engine Speed 2400 rpm 2600 rpm Engine Power (Gross) 71.1 hp 70 hp PTO Power 60 hp 62 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Dry Fuel System Common rail direct injection Electronic high pressure common rail Alternator 130 A 75 A ▶ HydraulicsPump Type Not Published Engine-driven dual gear-type Implement Flow 16.7 gpm 11.9 gpm Steering Flow 6.3 gpm 5.5 gpm Total Hydraulic Flow 23.0 gpm (16.7 + 6.3, computed) 17.4 gpm (11.9 + 5.5, computed) Overall Hydraulic Pump Flow 23.0 gpm (16.7 + 6.3, computed) Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 (SCD) 1 No. of Optional Remote Valves Max. 3 2 ▶ Fluid CapacityFuel Tank Capacity 23.8 gal 17.2 gal Coolant Capacity 10.6 qt Not Published Crankcase Capacity 12.7 qt Not Published Transmission / Hydraulic System Capacity 49.6 qt Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Live-independent PTO, electro-hydraulic clutch with brake Independent PTO Rear 540 rpm (540/540E optional) 540 / 540E Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I / II Category I/II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 3,307 lb 2,701 lb Lift Control Type Position, draft (top link sensing) and mixed control Mechanical Draft Control (MDC), top link sensing ▶ Transmission & DrivetrainTransmission Type Fully synchronized 6-speed main gear shift with electro-hydraulic shuttle, 12F/12R (option: 18F/18R with creep) 8x8 mechanical shuttle (dry clutch) No. of Speeds F12 / R12 (option: F18 / R18 with creep) 8F/8R Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Multiple wet disc Dry clutch Differential Lock & Limited Slip Options Front: limited-slip differential; Rear: mechanical differential lock Mechanical rear differential lock; MFD engagement mechanical; limited-slip MFD front axle ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Brakes Hydraulic wet disc Wet disc Seat Suspension & Adjustability Not Published Contoured seat, adjustable Front Axle Type Bevel gear type (4WD, mechanical on-the-go 4WD clutch) 2WD or MFD with limited slip Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 75.6 in 67.5 in Wheelbase 84.1 in 2WD: 77.5 in; MFD: 77.7 in Ground Clearance 18.1 in (front axle crop clearance) Not Published Min. Turn Radius without Brakes 11.8 ft 2WD: 135.8 in; MFD: 190.9 in Height to Top of ROPS Not Published 2WD: 92.7 in; MFD: 97.4 in Height to Top of ROPS (folded) Not Published 77 in Height to Top of Cab Model 101 in Not Published Overall Length 144 in 2WD: 129.5 in; MFD: 134.0 in ▶ WeightTractor Weight (Base) 5,952 lb 2WD: 4,442 lb; MFD: 5,060 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard: 320/70R24 front, 420/75R34 rear R1 (bar tread) 2WD or MFD; R4 (industrial tread) MFD R1 Agricultural - Front 320/70R24 2WD: 7.5x16; MFD: 8.3x24 R1 Agricultural - Rear 420/75R34 13.6x28 R3 Turf - Front 9.50-24 Not Published R3 Turf - Rear 18.4-26 Not Published R4 Industrial - Front 14-17.5 MFD: 12.5x18 R4 Industrial - Rear 16.9-24 MFD: 18.4x24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Compatible loaders: L545, L555 Loader Model LA1154A L545; L555 Loader Lift Height LA1154A: 133.0 in (height position); 117.6 in (power position) L545: 106 in; L555: 105 in Loader Lift Capacity (Full Height) LA1154A: 2,674 lb (height position); 2,928 lb (power position) L545 NSL: 1,565 lb; L545 MSL: 2,205 lb; L555 NSL: 1,940 lb; L555 MSL: 2,734 lb Loader Breakout Force LA1154A: 4,079 lbf (height position); 5,128 lbf (power position) L545: 3,131 lb; L555: 3,527 lb ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours, all usage Not Published
