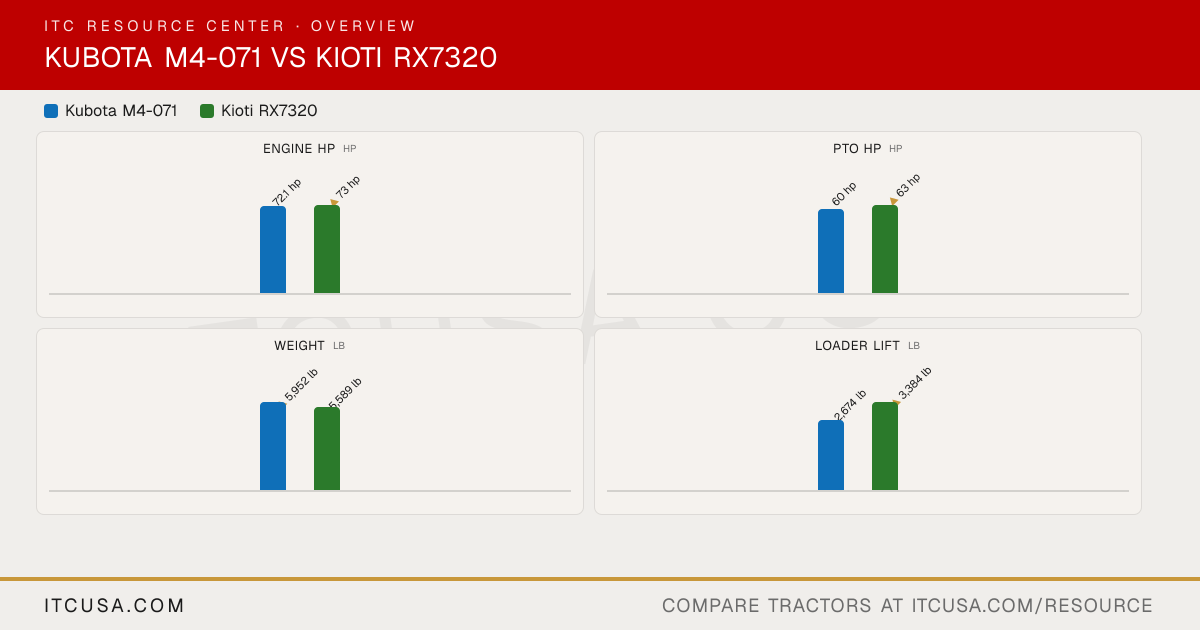

▶ EngineEngine Manufacturer Kubota KIOTI Engine Model V3307-CR-TE4 4F243T Engine Type 4-cylinder in-line, common rail direct injection, turbocharged diesel In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI (4F243T) No. of Cylinders 4 4 Displacement 203 in³ 148.6 in³ Rated Engine Speed 2400 rpm 2600 rpm Engine Power (Gross) 72.1 hp 73 hp PTO Power 60 hp 63 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published Dry element Fuel System Common rail direct injection Common Rail Direct Injection (CRDI) Alternator 130 A Not Published ▶ HydraulicsPump Type Not Published Gear Implement Flow 16.7 gpm 11.0 gpm Steering Flow 6.3 gpm 8.2 gpm Total Hydraulic Flow 23.0 gpm (16.7 + 6.3, computed) 19.2 gpm Overall Hydraulic Pump Flow 23.0 gpm (16.7 + 6.3, computed) 19.2 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 (SCD) 1 No. of Optional Remote Valves Max. 3 2 ▶ Fluid CapacityFuel Tank Capacity 23.8 gal 22.5 gal Coolant Capacity 10.6 qt 2.40 gal Crankcase Capacity 12.7 qt 2.2 gal Transmission / Hydraulic System Capacity 10.6 gal 15.9 gal Front Axle Fluid Capacity Not Published 2.2 gal ▶ PTO & HitchPTO Type Live-independent PTO, electro-hydraulic clutch with brake Independent PTO Rear 540 rpm (540/540E optional) 540 / 540E rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I / II Category II Hitch Lift Capacity Not Published 4,974 lb Hitch Lift Capacity (at 24”) 3307 lb 3,898 lb Lift Control Type Position, draft (top link sensing) and mixed control Position, Draft, Mixed Control ▶ Transmission & DrivetrainTransmission Type Fully synchronized 6-speed main gear shift with electro-hydraulic shuttle, 12F/12R (option: 18F/18R with creep) Manual: Synchro Shuttle No. of Speeds F12 / R12 (option: F18 / R18 with creep) 12 forward / 12 reverse Max Travel Speed (Forward) Not Published 23.53 mph Max Travel Speed (Reverse) Not Published 23.13 mph Clutch Multiple wet disc Dry Single Plate Differential Lock & Limited Slip Options Front: limited slip differential; Rear: mechanical differential lock Rear differential lock (standard) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Power Steering Brakes Hydraulic wet disc Wet Multi Disc Seat Suspension & Adjustability Not Published Adjustable Seat Front Axle Type Bevel gear type (4WD, mechanical on-the-go 4WD clutch) Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 142 in 146.3 in Overall Width 75.6 in 77.2 in Wheelbase 84.1 in 83.9 in Ground Clearance 18.1 in (front axle crop clearance) 17.3 in Min. Turn Radius without Brakes 11.8 ft 11.2 ft (with brake applied) Height to Top of ROPS Not Published 107.5 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 101 in Not Published ▶ WeightTractor Weight (Base) 5952 lb 5,589 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard: 320/85R20 front, 420/85R30 rear R1 Agricultural, R4 Industrial R1 Agricultural - Front 320/85R20 11.2-24 R1 Agricultural - Rear 420/85R30 16.9-30 R3 Turf - Front 9.50-24 Not Published R3 Turf - Rear 18.4-26 Not Published R4 Industrial - Front 14-17.5 12.5/80-18 R4 Industrial - Rear 16.9-24 18.4-24/8 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Built-in parking stand; designed to be quickly and easily attached and detached. Loader Model LA1154A KL7320 Loader Lift Height LA1154A: 133.0 in (height position); 117.6 in (power position) KL7320: 133.9 in (to pivot pin) Loader Lift Capacity (Full Height) LA1154A: 2674 lb (height position); 2928 lb (power position) KL7320: 3,384 lb (to full height at pivot pins) Loader Breakout Force LA1154A: 4079 lbf (height position); 5128 lbf (power position) KL7320: 5,359 lb (at pivot pins) ▶ WarrantyWarranty Length & Coverage All usage - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours. Tractors (Non-Commercial Application): 24 months parts & labor; Extended (Non-Commercial, driveline/powertrain): 48 months parts & labor; Limited time: eligible units receive total 6 years (72 months) extended powertrain warranty coverage.
