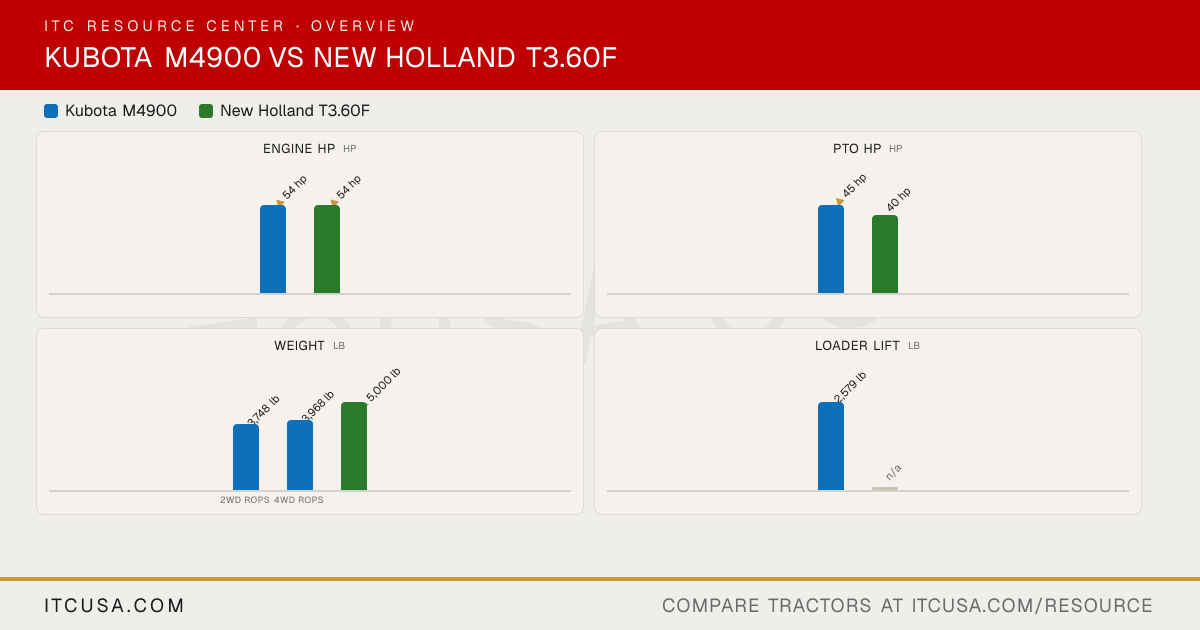

▶ EngineEngine Manufacturer Kubota Not Published Engine Model F2803-ELA S8000 Engine Type Vertical, water-cooled, 4-cycle diesel, 5-cylinder Turbocharged, intercooled 3-cylinder diesel No. of Cylinders 5 3 Displacement 167.6 in³ 179 in³ Rated Engine Speed 2600 rpm 2300 rpm Engine Power (Gross) 54 hp 54 hp PTO Power 45 hp 40 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Not Published Air Cleaner Dual dry elements Not Published Fuel System Not Published Common rail fuel injection Alternator Not Published Not Published ▶ HydraulicsPump Type Not Published Dual-pump Implement Flow Not Published 12.6 gpm Steering Flow Not Published 7.6 gpm Total Hydraulic Flow 17.1 gpm 20.2 gpm Overall Hydraulic Pump Flow Not Published 20.2 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 2 No. of Optional Remote Valves Not Published 3 ▶ Fluid CapacityFuel Tank Capacity ROPS: 17.2 gal; Cab: 25.1 gal Not Published Coolant Capacity 7.7 qt Not Published Crankcase Capacity 8.5 qt Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Live Not Published PTO Rear 540 rpm 540/540E Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II/I Not Published Hitch Lift Capacity 4,200 lb Not Published Hitch Lift Capacity (at 24”) 3,307 lb 4,000 lb Lift Control Type Position, draft and mix control Lift-O-Matic ▶ Transmission & DrivetrainTransmission Type Synchronized shuttle, 8F/8R (12F/12R with creeper) 12x12 Mechanical Shuttle No. of Speeds 8F/8R (12F/12R with creeper) 12F/12R Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Straddle-deck platform Steering Hydrostatic power steering Not Published Brakes Mechanical wet disc Not Published Seat Suspension & Adjustability Not Published Vinyl suspension seat Front Axle Type Not Published 4WD front axle, electronic engagement Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 67.2 in (minimum) 57 in Wheelbase ROPS: 78.7 in; Cab: 81.7 in 73 in Ground Clearance 16.9 in Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 93.0 in 97 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 98.1 in Not Published Overall Length 2WD ROPS: 137.6 in; 4WD ROPS: 134.1 in; 2WD cab: 140.6 in; 4WD cab: 137.1 in 143 in ▶ WeightTractor Weight (Base) 2WD ROPS: 3,748 lb; 4WD ROPS: 3,968 lb 5,000 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard: 6.5-16 front (2WD), 9.5-22 front (4WD), 14.9-28 rear Not Published R1 Agricultural - Front 8.3-24 Not Published R1 Agricultural - Rear 14.9-28 320/70R20 R3 Turf - Front 2WD: 9.00-10; 4WD: 29x12.5-15 Not Published R3 Turf - Rear 21.5L-16.1 R3 Not Published R4 Industrial - Front 12.5/80-18 R4 Not Published R4 Industrial - Rear 16.9-24 R4 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model LA1002 Not Published Loader Lift Height LA1002: 115.6 in Not Published Loader Lift Capacity (Full Height) LA1002: 2,579 lb (at pivot pin) Not Published Loader Breakout Force LA1002: 3,330 lbf Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
