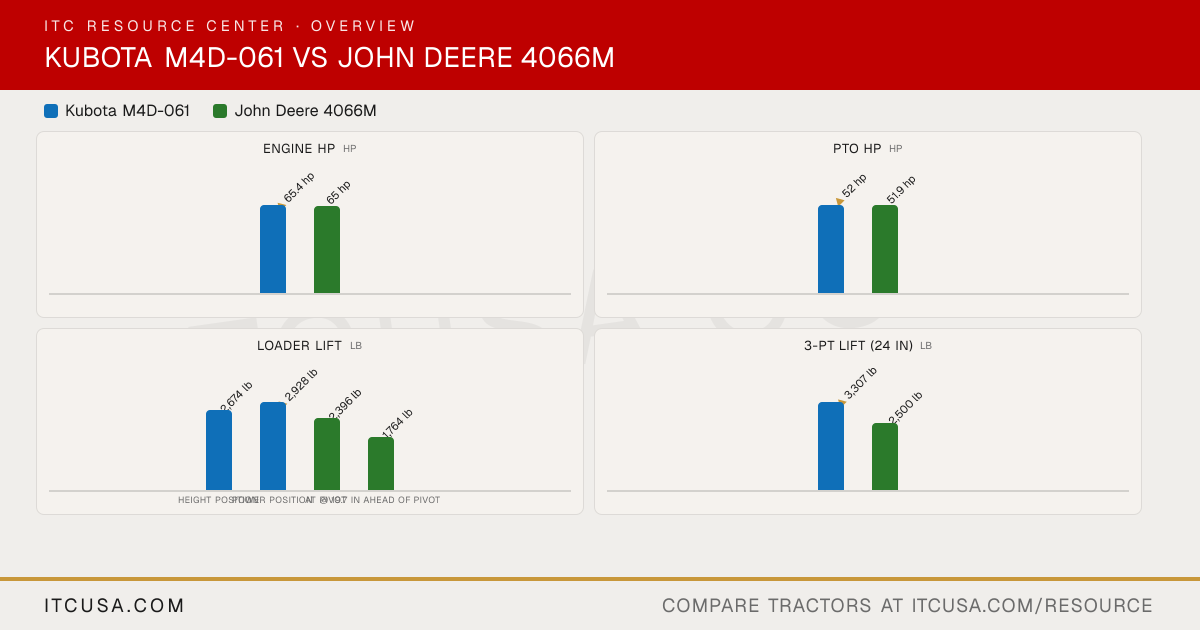

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model V3307-CR-TE4 4TNV86CHT-MJT Engine Type Liquid-cooled, diesel, 4-cylinder Turbocharged 4-cylinder Diesel No. of Cylinders 4 4 Displacement 203 in³ 127.6 in³ Rated Engine Speed 2400 rpm 2600 rpm Engine Power (Gross) 65.4 hp 65 hp PTO Power 52 hp 58 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dual element (primary and secondary elements) Dual element (dry type with safety element) Fuel System Common Rail System (CRS) High-pressure common rail direct injection Alternator 130 A 75 A, 12 V ▶ HydraulicsPump Type Not Published Dual Independent Implement Flow 16.7 gpm 10.2 gpm Steering Flow 6.3 gpm 5.7 gpm Total Hydraulic Flow 23.0 gpm (16.7 gpm implement + 6.3 gpm steering, computed) 15.9 gpm Overall Hydraulic Pump Flow 23.0 gpm (16.7 + 6.3, computed) 15.9 gpm Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 (SCD / FD) Not Published No. of Optional Remote Valves Max. 3 3rd, 4th, and 5th optional (up to 5 total) ▶ Fluid CapacityFuel Tank Capacity 23.8 gal 13 gal Coolant Capacity 10.6 qt 1.5 gal Crankcase Capacity 12.7 qt 1.4 gal (with filter) Transmission / Hydraulic System Capacity 49.6 qt 12.5 gal Front Axle Fluid Capacity 5.8 qt (front differential case) plus 3.7 qt (front axle gear case) 5.3 qt ▶ PTO & HitchPTO Type Live-independent PTO, electro-hydraulic clutch with brake Independent, 540 rpm (wet disc clutch) PTO Rear 540/540E rpm 540 rpm Mid-PTO Availability Not Published No mid-PTO offered Category, 3-Point Hitch I / II Category I Hitch Lift Capacity 4,189 lb 3,130 lb Hitch Lift Capacity (at 24”) 3,307 lb 2,500 lb Lift Control Type Position, draft (top link sensing) & mixed control Position control ▶ Transmission & DrivetrainTransmission Type Fully synchronized 6-speed main gear shift with electro-hydraulic shuttle, 12F/12R (option: 18F/18R with creep) Standard: 12F/12R PowrReverser; Optional: eHydro (3-range hydrostatic) No. of Speeds F12/R12 (option: F18/R18 with creep) 12F/12R Max Travel Speed (Forward) 24.9 mph 18.6 mph Max Travel Speed (Reverse) 24.7 mph 18.6 mph Clutch Multiple wet disc Wet disc Differential Lock & Limited Slip Options Front: limited-slip differential; Rear: mechanical differential lock Differential lock ▶ Chassis, Steering & ControlsFrame Type Ultra Grand Cab II ROPS - Foldable Steering Hydrostatic power steering Power Brakes Hydraulic wet disc Wet disc Seat Suspension & Adjustability Mechanical-suspension seat with adjustable armrest, seat height, weight (suspension) and backrest tilt; optional air-suspension seat Adjustable vinyl seat with retractable seat belt; optional premium seat kit with mechanical suspension base Front Axle Type Bevel gear type (4WD) Mechanical front wheel drive (MFWD) - Standard Front Axle Rating Not Published (Continuous) 3,307 lb Drawbar Capacity 2,200 lb Max vertical load 1,103 lb ▶ Dimensions & ManeuverabilityOverall Width 75.6 in 78.2 in Wheelbase 84.1 in 73.0 in Ground Clearance 18.1 in (front axle crop clearance) Front axle: 15.6 in Min. Turn Radius without Brakes 11.8 ft 17.1 ft Height to Top of ROPS Not Published 100.2 in Height to Top of ROPS (folded) Not Published 80.5 in Height to Top of Cab Model 101 in Not Published Overall Length 144 in 130.6 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 6,008 lb 3,770 lb (operating weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard: 320/70R24 front, 420/75R34 rear R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 320/70R24 8-16 (6PR) R1 Agricultural - Rear 420/75R34 13.6-28 R3 Turf - Front 9.50-24 27X10.50-15 R3 Turf - Rear 18.4-26 44X18.00-20 (4PR) R4 Industrial - Front 14-17.5 10-16.5 (6PR) R4 Industrial - Rear 16.9-24 16.9-24 (6PR) ▶ Loader & AttachmentsQuick Attach Loader System LA1154A: 2-Lever Quick Coupler Quik-Park easy-to-attach/detach loader Loader Model LA1154A 400E Loader Lift Height LA1154A: Height position: 133.0 in; Power position: 117.6 in 400E: 112 in (to pivot pin) Loader Lift Capacity (Full Height) LA1154A: Height position: 2,674 lb; Power position: 2,928 lb 400E: 2,396 lb (at pivot, full height) Loader Breakout Force LA1154A: Height position: 4,079 lbf; Power position: 5,128 lbf 400E: 3,853 lbf at pivot; 2,902 lbf at 500 mm forward of pivot ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours Basic 24 months or 2,000 hours; powertrain 72 months or 2,000 hours
