Kubota M4D-061 vs John Deere 5065E | Side-by-side comparison | ITC Resource Center
Compare Tractors

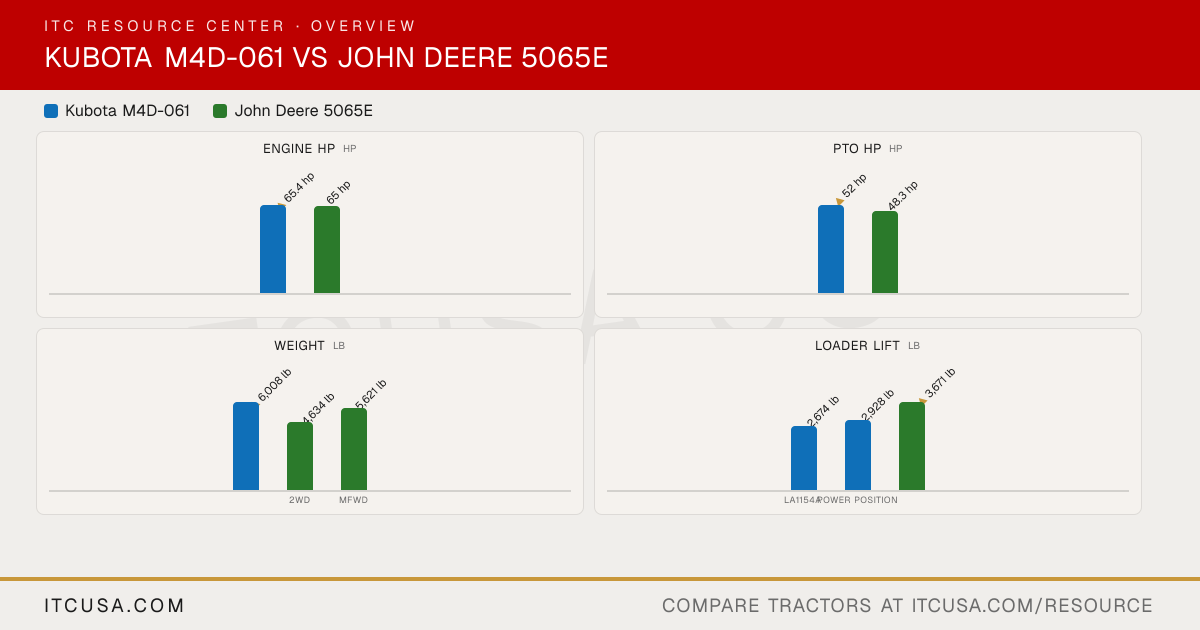

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Dry (SyncShuttle); Dry/Wet with 12F/12R PowrReverser
Differential Lock & Limited Slip Options
Front limited slip differential; Rear differential lock (mechanical)
Rear diff lock, standard
Frame Type
Ultra Grand Cab II
Not Published
Steering
Hydrostatic power steering
Power steering
Brakes
Hydraulic wet disc
Hydraulic wet disc brakes
Seat Suspension & Adjustability
Deluxe mechanical suspension seat with adjustable armrest, seat height, weight (suspension) and backrest tilt; optional air ride seat
Not Published
Front Axle Type
Bevel gear type (4WD)
2WD or MFWD
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
2200 lb
Not Published
Overall Length with 3-Point Hitch
142 in
137.8 in
Overall Width
75.6 in
57.3 in
Wheelbase
84.1 in
80.7 in
Ground Clearance
18.1 in
2WD: 18.8 in; MFWD: 13.4 in
Min. Turn Radius without Brakes
11.8 ft
138 in
Height to Top of ROPS
Not Published
98.4 in
Height to Top of ROPS (folded)
Not Published
78.5 in
Height to Top of Cab Model
101 in
95.6 in
Tractor Weight (Base)
6008 lb
2WD: 4,634 lb; MFWD: 5,621 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
7,165 lb
Tire Size & Options
Standard: 320/70R24 front, 420/75R34 rear
Not Published
R1 Agricultural - Front
320/70R24
2WD: 7.5-16; MFWD: 9.5-24
R1 Agricultural - Rear
420/75R34
16.9-28
R3 Turf - Front
9.50-24
9.5-16 (4WD)
R3 Turf - Rear
18.4-26
21.5L-16.1
R4 Industrial - Front
14-17.5
12.5-80-18 (4WD)
R4 Industrial - Rear
16.9-24
16.9-24
Quick Attach Loader System
LA1154A: 2-Lever Quick Coupler
H240 (NSL or MSL)
Loader Model
LA1154A
H240NSL
Loader Lift Height
LA1154A: Height position: 133.0 in; Power position: 117.6 in
131 in
Loader Lift Capacity (Full Height)
LA1154A: Height position: 2674 lb; Power position: 2928 lb
3,671 lb
Loader Breakout Force
LA1154A: Height position: 4079 lbf; Power position: 5128 lbf
4,504 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
