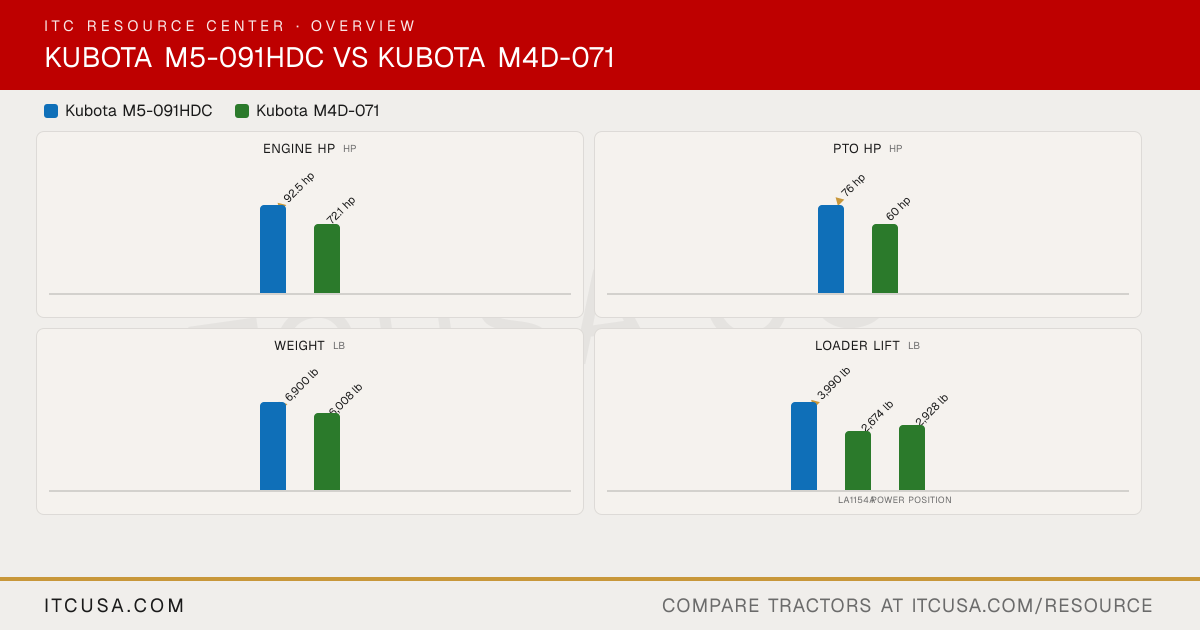

▶ EngineEngine Manufacturer Kubota Kubota Engine Model V3800CR-TIEF4 V3307-CR-TE4 Engine Type 4-cylinder in-line, common rail direct injection, turbocharged with intercooler, DPF, DOC and SCR diesel Liquid-cooled, diesel, 4-cylinder No. of Cylinders 4 4 Displacement 230 in³ 203 in³ Rated Engine Speed 2600 rpm 2400 rpm Engine Power (Gross) 92.5 hp 72.1 hp PTO Power 76 hp 60 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry paper, dual element, 8 in diameter, with pre-cleaner Dual element (primary and secondary elements) Fuel System Common rail direct injection Common Rail System (CRS) Alternator 80 A, 12 V 130 A, 12 V ▶ HydraulicsPump Type Gear pump Gear Implement Flow 17.0 gpm 16.7 gpm Steering Flow 6.1 gpm 6.3 gpm Total Hydraulic Flow 23.1 gpm 23.0 gpm (16.7 gpm implement + 6.3 gpm steering, computed) Overall Hydraulic Pump Flow 23.1 gpm 23.0 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow 17.0 gpm Not Published No. of Standard Remote Valves 1 standard (3 maximum) 2 (SCD / FD) No. of Optional Remote Valves 2 optional (3 maximum) Max. 3 ▶ Fluid CapacityFuel Tank Capacity 27.7 gal 23.8 gal Coolant Capacity 11 qt 10.6 qt Crankcase Capacity 11.3 qt 12.7 qt Transmission / Hydraulic System Capacity 15.9 gal 12.4 gal Front Axle Fluid Capacity 6.3 qt (differential) plus 3.7 qt (each bevel gear case) 5.8 qt (front differential case) plus 3.7 qt (front axle gear case) ▶ PTO & HitchPTO Type Live-independent PTO, electro-hydraulic clutch with brake Live-independent PTO, electro-hydraulic clutch with brake PTO Rear 540 rpm (540/540E optional) 540/540E rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II I / II Hitch Lift Capacity 7055 lb (8860 lb optional) 4189 lb Hitch Lift Capacity (at 24”) 5181 lb 3307 lb Lift Control Type Position, draft (top link sensing) and mixed control Position, draft (top link sensing) & mixed control ▶ Transmission & DrivetrainTransmission Type Fully synchronized main gear shift with electro-hydraulic shuttle 12-speed electro-hydraulic shuttle (option: 18-speed with creep) No. of Speeds 8 forward, 8 reverse F12/R12 (option: F18/R18 with creep) Max Travel Speed (Forward) 18.6 mph 24.9 mph Max Travel Speed (Reverse) 18.4 mph 24.7 mph Clutch Multiple wet disc Multiple wet disc Differential Lock & Limited Slip Options Limited slip differential (front); mechanical differential lock (rear) Front limited slip differential; Rear differential lock (mechanical) ▶ Chassis, Steering & ControlsFrame Type Not Published Ultra Grand Cab II Steering Hydrostatic power steering Hydrostatic power steering Brakes Hydraulic wet disc Hydraulic wet disc Seat Suspension & Adjustability Suspension seat with fore and aft travel adjustment, suspension tension knob, backrest tilt adjustment and arm rest Deluxe mechanical suspension seat with adjustable armrest, seat height, weight (suspension) and backrest tilt; optional air ride seat Front Axle Type Bevel gear type with 55 degree turning angle (4WD) Bevel gear type (4WD) Front Axle Rating 5730 lb Not Published Drawbar Capacity 3300 lb 2200 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 155.9 in 142 in Overall Width 78.3 in 75.6 in Wheelbase 88.6 in 84.1 in Ground Clearance 18.7 in 18.1 in Min. Turn Radius without Brakes 13.8 ft 11.8 ft Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 100.2 in 101 in ▶ WeightTractor Weight (Base) 6900 lb 6008 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Front: 7.50-18, 9.5L-15, 9.5-22, 10.00-16, 11.2-24, 12.4-24; Rear: 16.9-30, 16.9-34, 18.4-30 Standard: 320/70R24 front, 420/75R34 rear R1 Agricultural - Front 11.2-24 320/70R24 R1 Agricultural - Rear 18.4-28 420/75R34 R3 Turf - Front 9.5L-15 F2 or 27x9.50-15 HF-1 (rib fronts paired with the R3 rears) 9.50-24 R3 Turf - Rear 18.4-26 R3 or 19.5L-24 R3 18.4-26 R4 Industrial - Front 9.5L-15 F2 (rib front paired with the R4 rear) 14-17.5 R4 Industrial - Rear 19.5L-24 R4 16.9-24 ▶ Loader & AttachmentsQuick Attach Loader System Quick coupler standard (Euro type optional); quick-mount loader attach and detach without tools; single-lever hydraulic hose quick coupler optional LA1154A: 2-Lever Quick Coupler Loader Model LA1854 LA1154A Loader Lift Height 145.7 in (height position); 131.9 in (power position) LA1154A: Height position: 133.0 in; Power position: 117.6 in Loader Lift Capacity (Full Height) 3990 lb (height position); 4144 lb (power position) LA1154A: Height position: 2674 lb; Power position: 2928 lb Loader Breakout Force Not Published LA1154A: Height position: 4079 lbf; Power position: 5128 lbf ▶ WarrantyWarranty Length & Coverage All Usage - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours. Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
