Kubota M5-111 vs Kubota B2601HSD | Side-by-side comparison | ITC Resource Center
Compare Tractors

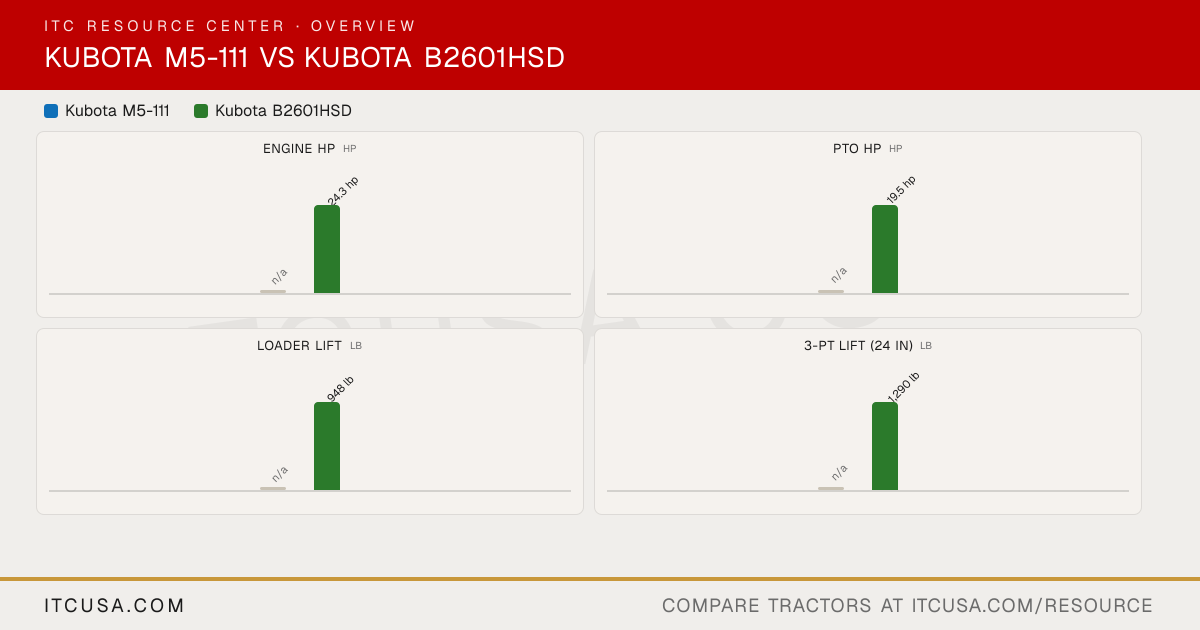

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaM5-111
KubotaB2601HSD
PTO Power
n/a
19.5 hp
Alternator
n/a
Not Published
Air Cleaner
n/a
Dual paper element
Engine Type
n/a
E-TVCS, liquid cooled, 3-cylinder diesel
Fuel System
n/a
diesel
Displacement
n/a
61.1 in³
No. of Cylinders
n/a
3
Rated Engine Speed
n/a
2800 rpm
Cooling System Type
n/a
Pressurized radiator
Engine Manufacturer
n/a
Kubota
Engine Power (Gross)
n/a
24.3 hp
Engine Emissions Constraints
n/a
Tier 4
Weight with ROPS and Loader
n/a
Not explicitly published as a combined ROPS+loader figure in sources found. Tractor-only weight is 1,632 lb (740 kg).
Weight with Cab and Loader
n/a
Not Applicable
Warranty Length & Coverage
n/a
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
n/a
Dual pump
Steering Flow
n/a
Not Published
Implement Flow
n/a
8.3 gal/min total - open center dual pump system shared between steering and implement circuits; individual split not published
Total Hydraulic Flow
n/a
8.3 gpm 31.4 lpm
Hydraulic System Type
n/a
open center
Rear Remote Hydraulic Flow
n/a
8.3 gal/min (total system - individual remote valve flow not separately published)
Overall Hydraulic Pump Flow
n/a
8.3 gpm
No. of Optional Remote Valves
n/a
1 (single rear remote is optional)
No. of Standard Remote Valves
n/a
Not Published
PTO Rear
n/a
540
PTO Type
n/a
Independent
Lift Control Type
n/a
position control
Hitch Lift Capacity
n/a
1808 lbs.
Mid-PTO Availability
n/a
independent, 2500
Category, 3-Point Hitch
n/a
I
Hitch Lift Capacity (at 24”)
n/a
1290 lb
R3 Turf - Rear
n/a
22x8.50-12
R3 Turf - Front
n/a
22x8.50-12
Tire Size & Options
n/a
Ag (R1): 7-12 front / 11.2-16 rear; Turf (R3): 22x8.50-12 front / 22x8.50-12 rear; Industrial (R4): 23x8.50-12 front / 12-16.5 rear; also Goodyear R14 hybrid multi-purpose tire available
R4 Industrial - Rear
n/a
12-16.5
R4 Industrial - Front
n/a
23x8.50-12
R1 Agricultural - Rear
n/a
11.2-16
R1 Agricultural - Front
n/a
7-12
Coolant Capacity
n/a
4.0 qts.
Crankcase Capacity
n/a
3.3 qts.
Fuel Tank Capacity
n/a
6.1 gal
Front Axle Fluid Capacity
n/a
Not Published
Transmission / Hydraulic System Capacity
n/a
4.0 gal
Loader Lift Height
n/a
78.5 in.
Loader Breakout Force
n/a
2146 lbs.
Quick Attach Loader System
n/a
LA435 Swift-Tach Loader (1-lever Quick Coupler)
Loader Lift Capacity (Full Height)
n/a
948 lbs.
Clutch
n/a
N/A
No. of Speeds
n/a
3 ranges (HST)
Transmission Type
n/a
HST (3 ranges)
Max Travel Speed (Forward)
n/a
0-12.7 mph (0-12.7 mph)
Max Travel Speed (Reverse)
n/a
0-9.5 mph (0-9.5 mph)
Differential Lock & Limited Slip Options
n/a
Standard
Brakes
n/a
Wet disc brakes
Steering
n/a
Power steering
Frame Type
n/a
Not explicitly published in sources found. Tractor uses standard compact utility tractor chassis construction.
Front Axle Type
n/a
Four-wheel drive
Drawbar Capacity
n/a
Drawbar included as standard; rated capacity not published in sources found
Front Axle Rating
n/a
Not Published
Seat Suspension & Adjustability
n/a
High-back seat with armrests; adjustable tilt-steering wheel; seat is not described as having mechanical suspension
Wheelbase
n/a
61.4 inches 61 in
Overall Width
n/a
49 in.
Ground Clearance
n/a
12.8 in.
Height to Top of ROPS
n/a
85.0 in.
Height to Top of Cab Model
n/a
Not Applicable
Height to Top of ROPS (folded)
n/a
85 in - this is the standing/unfolded height; folded height not separately published in sources found
