Kubota M5-111 vs Kubota BX1880 | Side-by-side comparison | ITC Resource Center
Compare Tractors

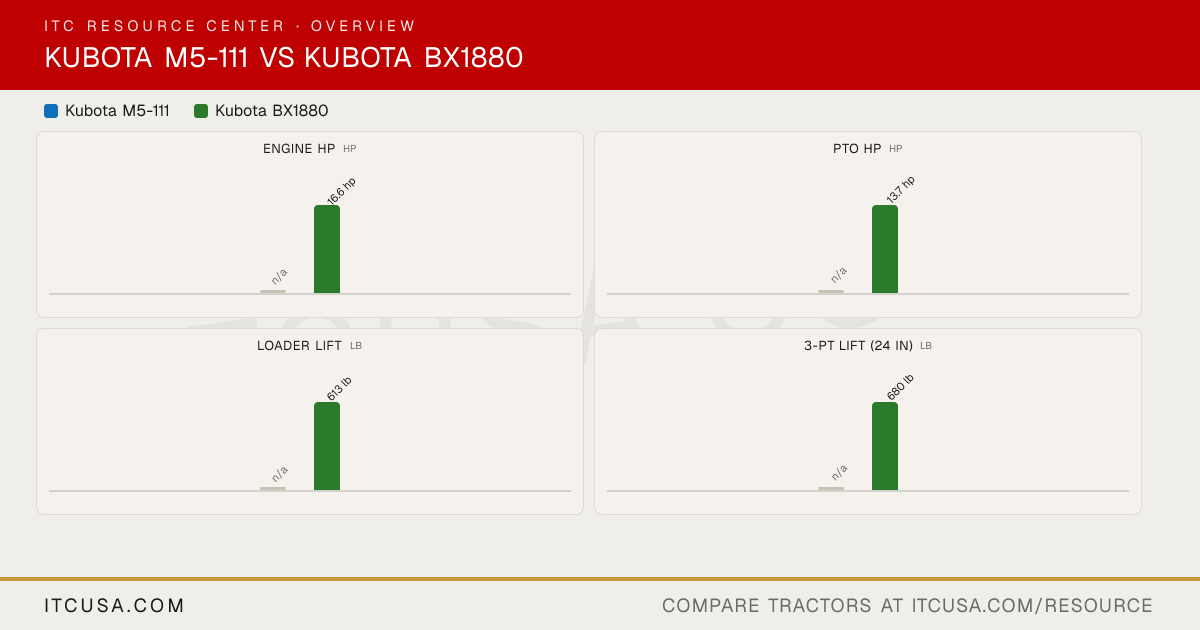

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaM5-111
KubotaBX1880
PTO Power
n/a
13.7 hp
Alternator
n/a
40 A, 12 V
Air Cleaner
n/a
Sheet net and replaceable treated paper element, spin on oil filter
Engine Type
n/a
Liquid cooled, 4-cycle, diesel
Fuel System
n/a
Direct injection
Displacement
n/a
43.9 in³
No. of Cylinders
n/a
3
Rated Engine Speed
n/a
3200 rpm
Cooling System Type
n/a
Water with pressurized radiator, reverse air-flow design
Engine Manufacturer
n/a
Kubota
Engine Power (Gross)
n/a
16.6 hp
Engine Emissions Constraints
n/a
Not Published
Weight with ROPS and Loader
n/a
Not Published
Weight with Cab and Loader
n/a
Not Applicable
Warranty Length & Coverage
n/a
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
n/a
Open center tandem pump gear type
Steering Flow
n/a
1.0 gpm
Implement Flow
n/a
5.2 gpm
Total Hydraulic Flow
n/a
6.2 gpm
Hydraulic System Type
n/a
Open center
Rear Remote Hydraulic Flow
n/a
Not Published
Overall Hydraulic Pump Flow
n/a
6.2 gpm
No. of Optional Remote Valves
n/a
2 (optional; ISO 7241-1 series A or B)
No. of Standard Remote Valves
n/a
Not Published
PTO Rear
n/a
STD (540 rpm)
PTO Type
n/a
Live independent PTO (with hydraulic clutch)
Lift Control Type
n/a
Not Published
Hitch Lift Capacity
n/a
Not Published
Mid-PTO Availability
n/a
STD (2500 rpm)
Category, 3-Point Hitch
n/a
SAE Category I Optional
Hitch Lift Capacity (at 24”)
n/a
680 lb
R3 Turf - Rear
n/a
24X12-12
R3 Turf - Front
n/a
16X7.5-8
Tire Size & Options
n/a
R1 Agricultural, R3 Turf
R4 Industrial - Rear
n/a
Not Applicable
R4 Industrial - Front
n/a
Not Applicable
R1 Agricultural - Rear
n/a
24X12-12
R1 Agricultural - Front
n/a
16X7.5-8
Coolant Capacity
n/a
Not Published
Crankcase Capacity
n/a
Not Published
Fuel Tank Capacity
n/a
6.6 gal
Front Axle Fluid Capacity
n/a
Not Published
Transmission / Hydraulic System Capacity
n/a
Not Published
Loader Lift Height
n/a
70.7 in
Loader Breakout Force
n/a
1,286 lbf (bucket pivot pin)
Quick Attach Loader System
n/a
Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
Loader Lift Capacity (Full Height)
n/a
613 lb
Clutch
n/a
Dry type single plate - Main clutch 9.45 in.
No. of Speeds
n/a
2 Range (Low-High)
Transmission Type
n/a
Hydrostatic transmission
Max Travel Speed (Forward)
n/a
7.5 mph
Max Travel Speed (Reverse)
n/a
5.6 mph
Differential Lock & Limited Slip Options
n/a
Rear differential lock standard
Brakes
n/a
Mechanical, wet disc type
Steering
n/a
Integral power steering
Frame Type
n/a
Not Published
Front Axle Type
n/a
4WD: Bevel gear front axle, non-adjustable tread spacing
