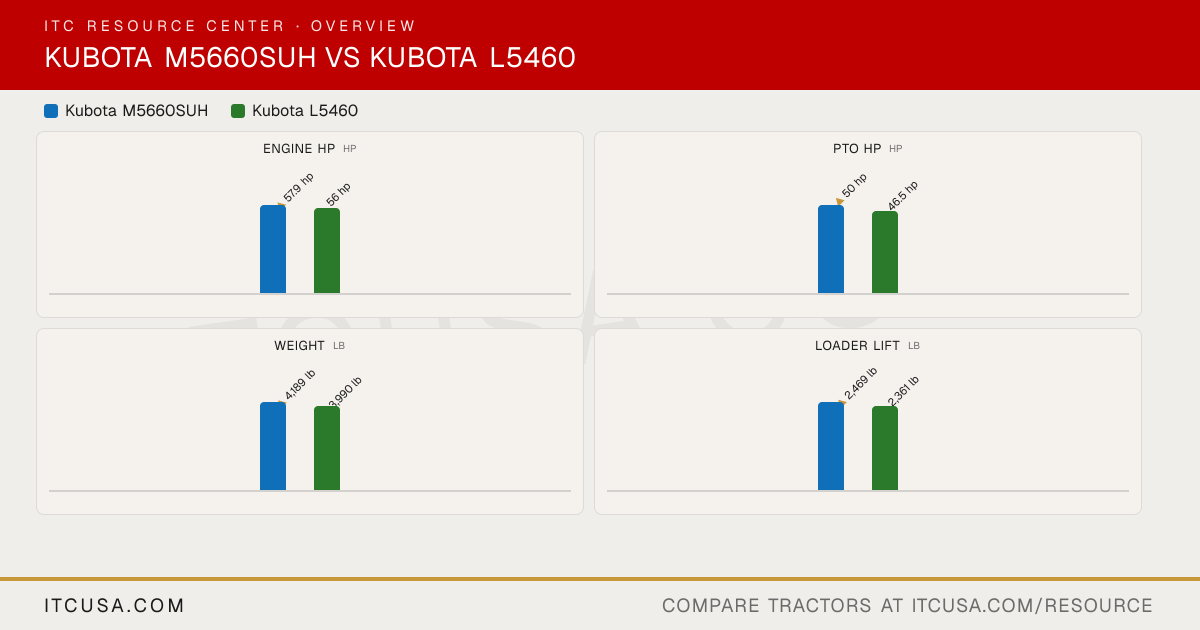

▶ EngineEngine Manufacturer Kubota Kubota Engine Model V2403-CR-TE4 V2403-CR-TE4-GL2 Engine Type 4-cylinder, turbocharged, common-rail diesel Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged No. of Cylinders 4 4 Displacement 148.5 in³ 148.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 58.7 hp 56 hp PTO Power 50 hp 46.5 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled, pressurized radiator with recovery tank Liquid-cooled Air Cleaner Dry paper dual element, 8 in diameter, pre-cleaner standard Dry paper, dual element Fuel System Common rail direct injection Electronic Common Rail System (CRS) Alternator 45 A 45 A, 12 V ▶ HydraulicsPump Type Gear pump Tandem pump - gear type Implement Flow 10.6 gpm 9.4 gpm Steering Flow 6.1 gpm 4.7 gpm Total Hydraulic Flow 16.5 gpm 14.1 gpm Overall Hydraulic Pump Flow 16.5 gpm 14.1 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 (SCD) Not Published No. of Optional Remote Valves 2 optional (3 maximum) Optional, up to 3: double-acting valve or float detent valve, any position ▶ Fluid CapacityFuel Tank Capacity 17.2 gal 13.5 gal Coolant Capacity 8.5 qt 8.7 qt Crankcase Capacity 7.6 qt 9.9 qt Transmission / Hydraulic System Capacity 50.7 qt 11.9 gal Front Axle Fluid Capacity No front axle oil, 2WD (M5660SUH); 6.9 qt front differential case plus 3.2 qt per bevel gear case (M5660SUHD) Not Published ▶ PTO & HitchPTO Type Hydraulic, independent PTO, self-modulating multi-plate wet clutch with brake Live independent (hydraulic clutch) PTO Rear 540 rpm (540/540E optional) 540 rpm @ 2400 engine rpm Mid-PTO Availability Not Published Optional Category, 3-Point Hitch Category I and II SAE Category I & II Hitch Lift Capacity 4,189 lb 3,858 lb Hitch Lift Capacity (at 24”) 3,307 lb 2,976 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Fully synchronized 4-speed main gear shift with hi-lo range and hydraulic shuttle, 8F/8R Hydrostatic transmission No. of Speeds 8F/8R 3-range, 6 speeds (H-DS), infinitely variable in each Max Travel Speed (Forward) 18.2 mph 16.8 mph Max Travel Speed (Reverse) 18.6 mph 15.2 mph Clutch Multiple wet disc Not Published Differential Lock & Limited Slip Options Rear differential lock standard (mechanical) Rear differential lock, standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Mechanical wet disc Wet disc type, mechanically activated Seat Suspension & Adjustability Fully adjustable suspension seat with retractable seat belt Suspension seat with swivel function Front Axle Type M5660SUH: adjustable tubular-steel 2WD axle; M5660SUHD: cast-iron bevel-pinion drive, 55-degree turning angle, 4WD 4WD: Bevel gear front axle, non-adjustable tread spacing Front Axle Rating 4,410 lb at 55.9 in tread spacing (M5660SUH); 5,290 lb at 55.9 in tread spacing (M5660SUHD) Not Published Drawbar Capacity 3,300 lb (maximum tongue weight) 1,433 lb ▶ Dimensions & ManeuverabilityOverall Width 72.8 in 67.3 in Wheelbase 82 in (M5660SUH); 80.7 in (M5660SUHD) 75.4 in Ground Clearance 16.3 in 15.4 in Min. Turn Radius without Brakes 11.1 ft (M5660SUH); 12.8 ft (M5660SUHD) 9.2 ft (with brake applied) Height to Top of ROPS 95.3 in 98.0 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Applicable Overall Length 138.7 in (M5660SUH); 136 in (M5660SUHD) 135.0 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 4,189 lb (M5660SUH); 4,387 lb (M5660SUHD) 3,990 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 2WD: 6.50-16, 7.5-16, 9.5L-15 fronts with 14.9-28 or 16.9-28 R1 rears; R3 29x12.50-15 / 21.5L-16.1 and LSW; 4WD: 9.5-22 or 280/85R20 fronts with 14.9-28 R1 rears; R3 29x12.50-15 / 21.5L-16.1; R4 12.5/80-18 / 16.9-24 Standard R1 (9.5-16 / 14.9-26); options: R1 (9.5-16 / 13.6-28), R4 (10-16.5 / 17.5L-24), R3 (29x12.50-15 / 44x18-20), LSW R3 (LSW305R343 / LSW610R470) R1 Agricultural - Front 9.5L-15 (M5660SUH); 9.5-22 (M5660SUHD) 9.5-16 R1 Agricultural - Rear 14.9-28 14.9-26; 13.6-28 R3 Turf - Front 29x12.50-15 29X12.50-15 R3 Turf - Rear 21.5L-16.1 44X18-20 R4 Industrial - Front 12.5/80-18 (M5660SUHD) 10-16.5 R4 Industrial - Rear 16.9-24 (M5660SUHD) 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System LA1154SU: 2-lever quick attach coupler standard 2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional) Loader Model LA1154SU LA1055 Loader Lift Height LA1154SU: 130.9 in (height position); 115.7 in (power position) 112.7 in (at pivot pin) Loader Lift Capacity (Full Height) LA1154SU: 2,469 lb (height position); 2,928 lb (power position) 2,361 lb (at pivot pin) Loader Breakout Force LA1154SU: 4,230 lbf (height position); 5,354 lbf (power position) 3,171 lbf ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours, all usage Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
