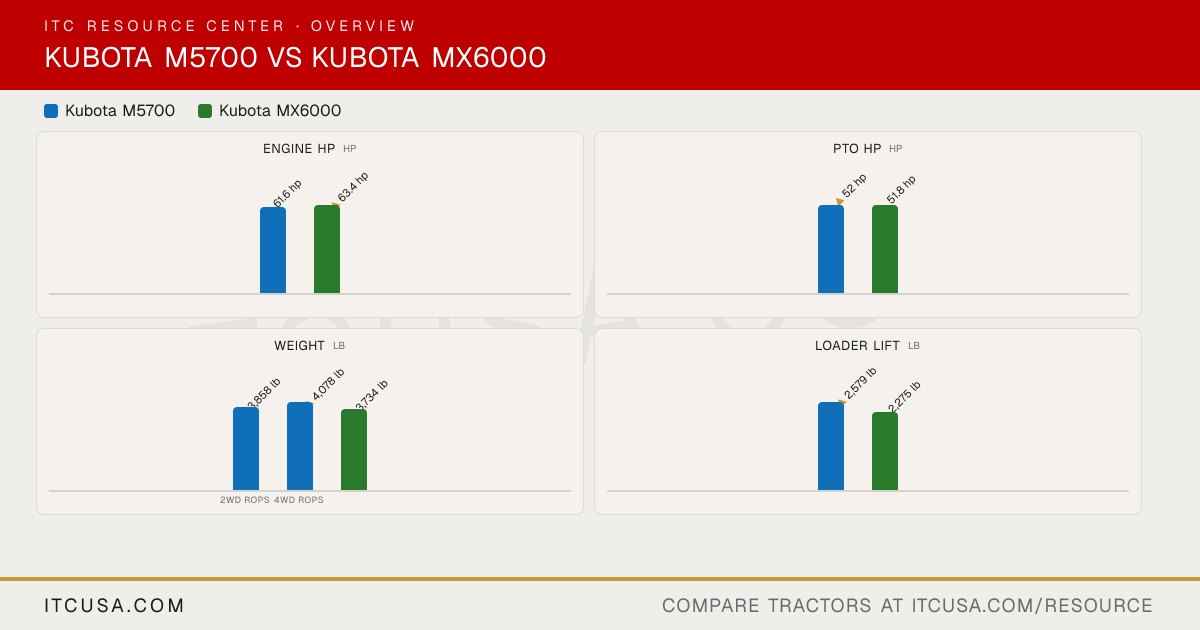

▶ EngineEngine Manufacturer Kubota Kubota Engine Model F2803 V2403CR-T Engine Type Diesel, 5-cylinder, liquid-cooled Liquid-cooled, diesel, 4-cylinder, Turbocharged No. of Cylinders 5 4 Displacement 167.5 in³ 148.6 in³ Rated Engine Speed 2800 rpm 2700 rpm Engine Power (Gross) 61.6 hp 63.4 hp PTO Power 52 hp 51.8 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Two paper elements Dry-dual element Fuel System Indirect injection Common Rail System (CRS), direct injection Alternator Not Published 45 A, 12 V ▶ HydraulicsPump Type Not Published Gear Implement Flow 11 gpm 9.5 gpm Steering Flow Not Published 4.9 gpm Total Hydraulic Flow Not Published 14.4 gpm (9.5 + 4.9, computed) Overall Hydraulic Pump Flow Not Published 14.4 gpm (9.5 + 4.9, computed) Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 to 3 Not Published No. of Optional Remote Valves Not Published Maximum 3 (opt) ▶ Fluid CapacityFuel Tank Capacity ROPS: 17.2 gal; Cab: 25.1 gal 13.5 gal Coolant Capacity 8.5 qt 6.9 qt Crankcase Capacity 8.5 qt 7.4 qt Transmission / Hydraulic System Capacity 13.7 gal 11.6 gal Front Axle Fluid Capacity Not Published 8.9 qt ▶ PTO & HitchPTO Type Independent Live independent, hydraulic PTO with PTO brake, wet clutch PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II/I I & II Hitch Lift Capacity Not Published 2870 lb Hitch Lift Capacity (at 24”) 2840 lb (as tested; advertised 3310 lb) 2310 lb Lift Control Type Position control and top-link draft sensing Position (std), Draft (opt) ▶ Transmission & DrivetrainTransmission Type 8-speed synchronized shuttle Hydrostatic transmission No. of Speeds 8F/8R 3-range Max Travel Speed (Forward) Not Published 17.7 mph Max Travel Speed (Reverse) Not Published 16.0 mph Clutch Not Published No clutch Differential Lock & Limited Slip Options Not Published Rear differential lock standard (mechanical) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Wet disc Mechanical wet disc Seat Suspension & Adjustability Not Published High-back suspension seat (optional arm rests) Front Axle Type Not Published Bevel gear type (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1650 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 2WD ROPS: 137.6 in; 4WD ROPS: 134.1 in; 2WD cab: 140.6 in; 4WD cab: 137 in 125.9 in (without 3-point hitch) Overall Width 72.8 in (minimum) 69.7 in Wheelbase ROPS: 78.7 in; Cab: 81.7 in 74.6 in Ground Clearance Not Published 15.2 in Min. Turn Radius without Brakes Not Published 8.9 ft (with brake applied) Height to Top of ROPS 93.5 in 95.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 99.0 in 92.7 in ▶ WeightTractor Weight (Base) 2WD ROPS: 3858 lb; 4WD ROPS: 4078 lb 3,734 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 2WD: 7.50-16 front; 4WD: 9.5-22 front; 16.9-28 rear Standard ag: 9.5-16 / 14.9-26 R1 Agricultural - Front 2WD: 7.50-16; 4WD: 9.5-22 9.5-16 R1 Agricultural - Rear 16.9-28 14.9-26 R3 Turf - Front Not Published 29x12.50-15 R3 Turf - Rear Not Published 44x18-20 R4 Industrial - Front Not Published 12-16.5 R4 Industrial - Rear Not Published 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published 1065A: 2-Lever Quick Coupler for Loader Attachment Loader Model LA1002 LA1065 Loader Lift Height LA1002: 115.6 in 111.2 in Loader Lift Capacity (Full Height) LA1002: 2579 lb 2275 lb Loader Breakout Force LA1002: 3330 lbf 3102 lbf (19.7 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 72 months or 3000 hours. Commercial Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
