Kubota M6-141 vs Kubota B2601HSD | Side-by-side comparison | ITC Resource Center
Compare Tractors

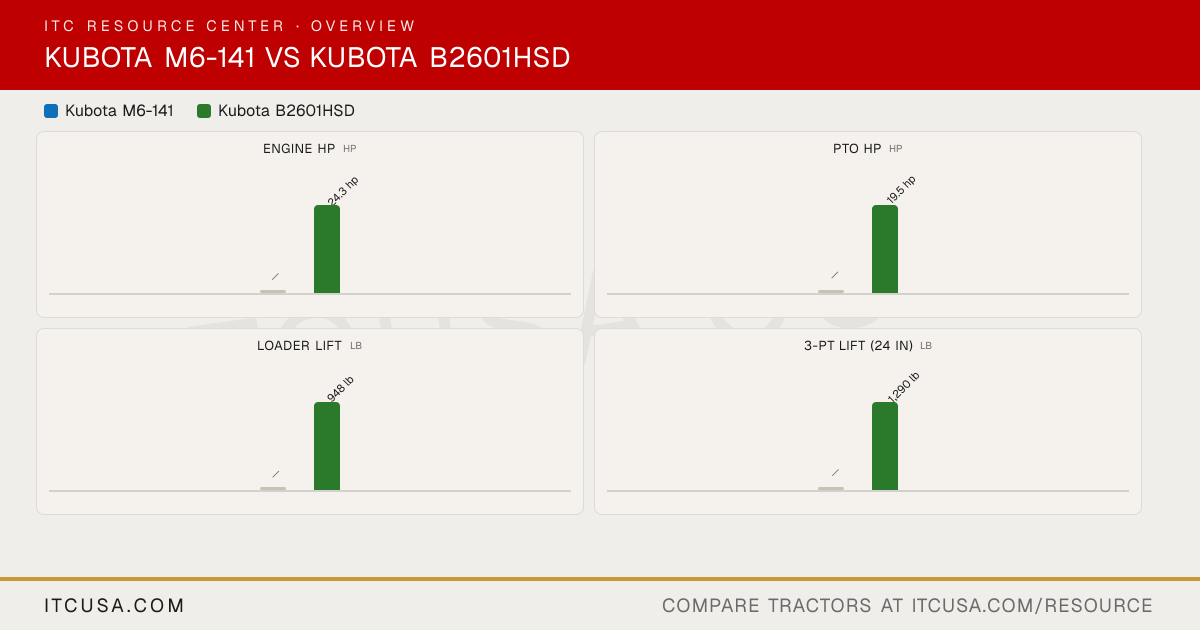

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaM6-141
KubotaB2601HSD
PTO Power
—
19.5 hp
Alternator
—
Not Published
Air Cleaner
—
Dual paper element
Engine Type
—
E-TVCS, liquid cooled, 3-cylinder diesel
Fuel System
—
diesel
Displacement
—
61.1 in³
No. of Cylinders
—
3
Rated Engine Speed
—
2800 rpm
Cooling System Type
—
Pressurized radiator
Engine Manufacturer
—
Kubota
Engine Power (Gross)
—
24.3 hp
Engine Emissions Constraints
—
Tier 4
Weight with ROPS and Loader
—
Not explicitly published as a combined ROPS+loader figure in sources found. Tractor-only weight is 1,632 lb (740 kg).
Weight with Cab and Loader
—
Not Applicable
Warranty Length & Coverage
—
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
—
Dual pump
Steering Flow
—
Not Published
Implement Flow
—
8.3 gal/min total - open center dual pump system shared between steering and implement circuits; individual split not published
Total Hydraulic Flow
—
8.3 gpm 31.4 lpm
Hydraulic System Type
—
open center
Rear Remote Hydraulic Flow
—
8.3 gal/min (total system - individual remote valve flow not separately published)
Overall Hydraulic Pump Flow
—
8.3 gpm
No. of Optional Remote Valves
—
1 (single rear remote is optional)
No. of Standard Remote Valves
—
Not Published
PTO Rear
—
540
PTO Type
—
Independent
Lift Control Type
—
position control
Hitch Lift Capacity
—
1808 lbs.
Mid-PTO Availability
—
independent, 2500
Category, 3-Point Hitch
—
I
Hitch Lift Capacity (at 24”)
—
1290 lb
R3 Turf - Rear
—
22x8.50-12
R3 Turf - Front
—
22x8.50-12
Tire Size & Options
—
Ag (R1): 7-12 front / 11.2-16 rear; Turf (R3): 22x8.50-12 front / 22x8.50-12 rear; Industrial (R4): 23x8.50-12 front / 12-16.5 rear; also Goodyear R14 hybrid multi-purpose tire available
R4 Industrial - Rear
—
12-16.5
R4 Industrial - Front
—
23x8.50-12
R1 Agricultural - Rear
—
11.2-16
R1 Agricultural - Front
—
7-12
Coolant Capacity
—
4.0 qts.
Crankcase Capacity
—
3.3 qts.
Fuel Tank Capacity
—
6.1 gal
Front Axle Fluid Capacity
—
Not Published
Transmission / Hydraulic System Capacity
—
4.0 gal
Loader Lift Height
—
78.5 in.
Loader Breakout Force
—
2146 lbs.
Quick Attach Loader System
—
LA435 Swift-Tach Loader (1-lever Quick Coupler)
Loader Lift Capacity (Full Height)
—
948 lbs.
Clutch
—
N/A
No. of Speeds
—
3 ranges (HST)
Transmission Type
—
HST (3 ranges)
Max Travel Speed (Forward)
—
0-12.7 mph (0-12.7 mph)
Max Travel Speed (Reverse)
—
0-9.5 mph (0-9.5 mph)
Differential Lock & Limited Slip Options
—
Standard
Brakes
—
Wet disc brakes
Steering
—
Power steering
Frame Type
—
Not explicitly published in sources found. Tractor uses standard compact utility tractor chassis construction.
Front Axle Type
—
Four-wheel drive
Drawbar Capacity
—
Drawbar included as standard; rated capacity not published in sources found
Front Axle Rating
—
Not Published
Seat Suspension & Adjustability
—
High-back seat with armrests; adjustable tilt-steering wheel; seat is not described as having mechanical suspension
Wheelbase
—
61.4 inches 61 in
Overall Width
—
49 in.
Ground Clearance
—
12.8 in.
Height to Top of ROPS
—
85.0 in.
Height to Top of Cab Model
—
Not Applicable
Height to Top of ROPS (folded)
—
85 in - this is the standing/unfolded height; folded height not separately published in sources found
