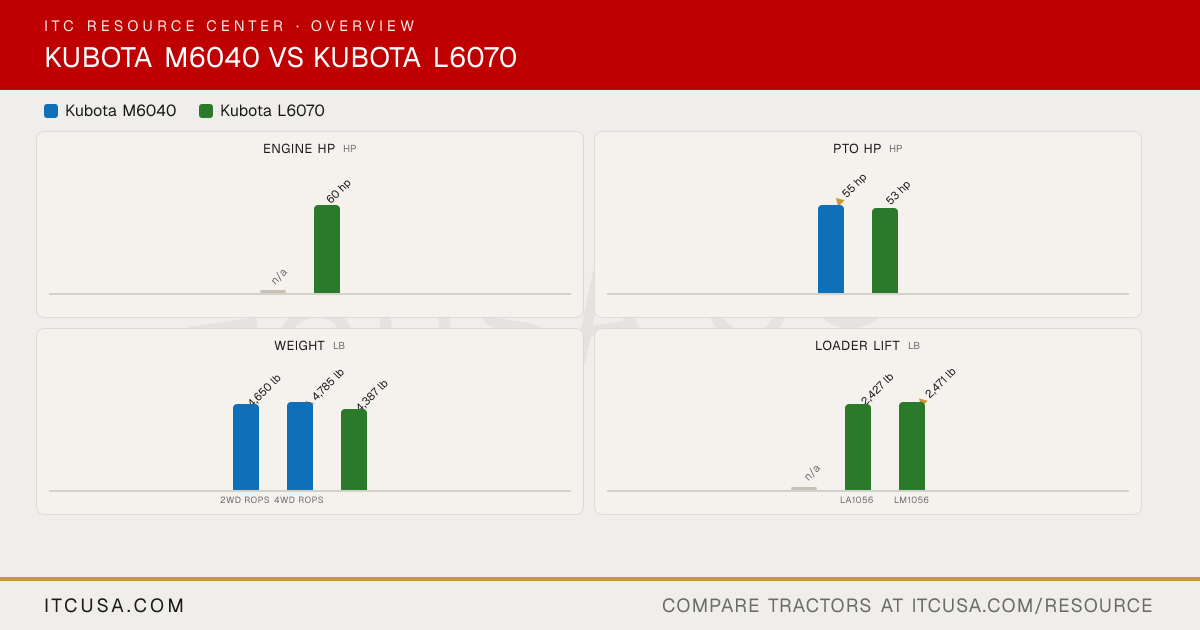

▶ EngineEngine Manufacturer Kubota Kubota Engine Model V3307-DI V2403-CR-TIE5 Engine Type 4-cylinder inline, direct injected diesel Direct injection, water-cooled, 4-cycle diesel, common rail system, turbocharged and intercooled No. of Cylinders 4 4 Displacement 203 in³ 148.5 in³ Rated Engine Speed 2600 rpm 2300 rpm Engine Power (Gross) Not Published 60 hp PTO Power 55 hp 53 hp Engine Emissions Constraints Tier 2 Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner 8 in dry, dual element Not Published Fuel System Direct injection Common rail direct injection Alternator ROPS: 45 A, 12 V; Cab: 60 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Not Published Implement Flow 11.0 gpm 9.83 gpm Steering Flow 6.1 gpm Not Published Total Hydraulic Flow 17.1 gpm (11.0 + 6.1, computed) Not Published Overall Hydraulic Pump Flow 17 gpm Not Published Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow 11.0 gpm Not Published No. of Standard Remote Valves 1 Not Published No. of Optional Remote Valves 2nd and 3rd optional Up to 3 (optional) ▶ Fluid CapacityFuel Tank Capacity ROPS: 18.5 gal; Cab: 29.1 gal Not Published Coolant Capacity 8.5 qt Not Published Crankcase Capacity 11.6 qt Not Published Transmission / Hydraulic System Capacity 10.6 gal Not Published Front Axle Fluid Capacity 8.5 qt Not Published ▶ PTO & HitchPTO Type Live independent PTO, hydraulically operated wet clutch with PTO brake Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category I and II Hitch Lift Capacity 4189 lb 3858 lb Hitch Lift Capacity (at 24”) 3307 lb 2976 lb Lift Control Type Position, draft (top link sensing) and mix control Not Published ▶ Transmission & DrivetrainTransmission Type Synchro shuttle, 8F/8R (4-speed synchronized main, 2-speed Hi/Lo range); hydraulic shuttle optional on cab models Hydrostatic transmission, 3-range, with Hydro-Dual Speed (H-DS) No. of Speeds 8F/8R (12F/12R with optional creep) 3-range Max Travel Speed (Forward) 18 mph 18.5 mph Max Travel Speed (Reverse) 18.0 mph Not Published Clutch Dry single plate (synchro shuttle) / multiple wet disks (hydraulic shuttle) Not Published Differential Lock & Limited Slip Options Rear differential lock (bevel gears) Not Published ▶ Chassis, Steering & ControlsFrame Type Two-post foldable ROPS (canopy optional); Ultra Grand Cab optional Two-post folding ROPS; cab optional Steering Hydrostatic power steering Hydrostatic power steering Brakes Multiple wet disc, mechanical Wet disc type Seat Suspension & Adjustability Reclining, fully adjustable seat (height, weight, fore and aft, arm rests) with retractable seat belt; optional air ride seat suspension (cab) Not Published Front Axle Type 4WD: Bevel gear type with Easy-To-Shift 4WD engagement while rolling Not Published Front Axle Rating Not Published Not Published Drawbar Capacity 2200 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 2WD: 140.4 in; 4WD: 135.6 in 133.9 in (w/o 3P) (without 3-point hitch) Overall Width 73.2 in 67.3 in Wheelbase 2WD ROPS: 82.1 in; 2WD cab: 84.4 in; 4WD ROPS: 80.7 in; 4WD cab: 83.1 in 81.3 in Ground Clearance 15.4 in 15.4 in Min. Turn Radius without Brakes 2WD: 11.2 ft; 4WD: 11.8 ft 9.5 ft (w/brake) (with brake applied) Height to Top of ROPS 96.9 in 98.0 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 99.8 in 93.3 in ▶ WeightTractor Weight (Base) 2WD ROPS: 4650 lb; 4WD ROPS: 4785 lb 4387 lb (ROPS); 4762 lb (cab) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard: 7.50-16 (2WD) or 9.5-24 (4WD) front, 16.9-28 rear Standard: 9.5-16 front, 14.9-26 rear R1 Agricultural - Front 2WD: 7.50-16; 4WD: 9.5-24 9.5-16 R1 Agricultural - Rear 16.9-28 14.9-26 R3 Turf - Front 2WD: 29x12.5-15 or 27x9.5-15 Not Published R3 Turf - Rear 2WD: 21.5L-16.1 or 16.9-24 Not Published R4 Industrial - Front 12.5/80-18 (4WD) Not Published R4 Industrial - Rear 16.9-24 (4WD) Not Published ▶ Loader & AttachmentsQuick Attach Loader System LA1153: two-lever quick coupler LA1056, LM1056: toolless loader removal with integrated parking stands; optional third-function valve Loader Model LA1153 LA1056; LM1056 Loader Lift Height LA1153 height position: 132.7 in; LA1153 power position: 117.2 in LA1056: 117 in; LM1056: 117 in Loader Lift Capacity (Full Height) Not Published LA1056: 2427 lb; LM1056: 2471 lb Loader Breakout Force Not Published LA1056: 4069 lbf; LM1056: 4061 lbf ▶ WarrantyWarranty Length & Coverage Not Published Not Published
