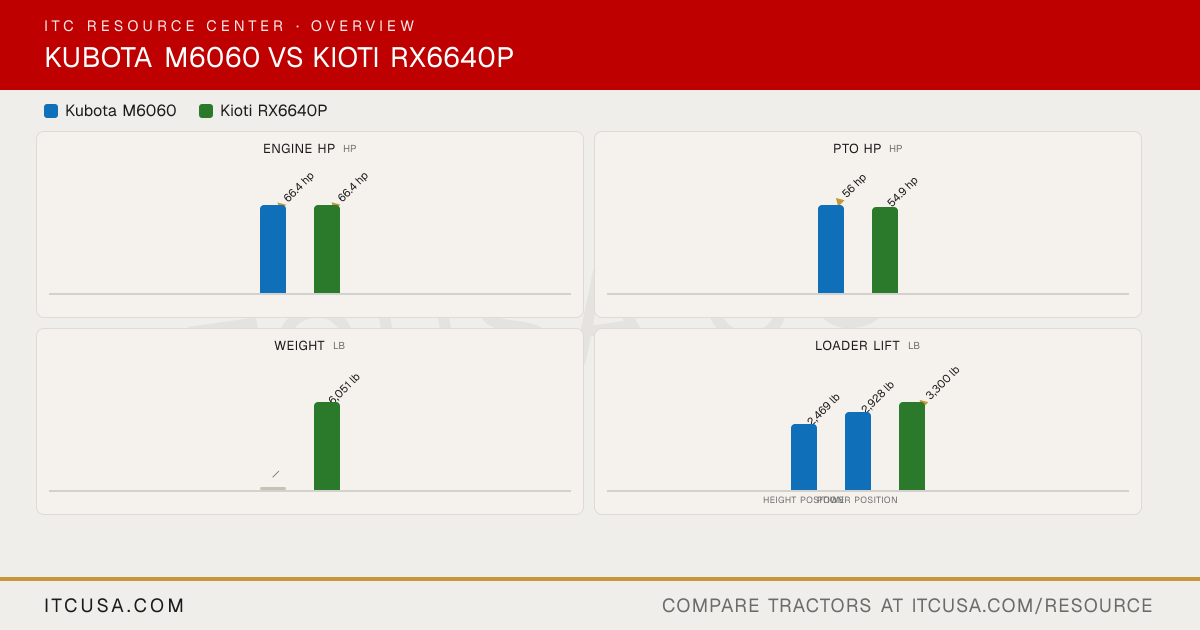

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Tractors (Non-Commercial Application): 24 months parts & labor; Extended (Non-Commercial, driveline/powertrain): 48 months parts & labor; Limited time: eligible units receive total 6 years (72 months) extended powertrain warranty coverage.
Pump Type
Gear
Tandem Gear
Steering Flow
6.1 gpm
8.2 gpm
Implement Flow
11.0 gpm
12.4 gpm
Total Hydraulic Flow
17.1 gpm
20.6 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
17.1 gpm
20.6 gpm
No. of Optional Remote Valves
2nd, 3rd (optional)
1
No. of Standard Remote Valves
1 (SCD)
1
PTO Rear
540 rpm (540/540E optional)
540 / 540E rpm
PTO Type
Live-independent PTO, electro-hydraulic clutch with brake
Independent
Lift Control Type
Position, Draft (Top Link Sensing) & Mixed Control
Electronic Control
Hitch Lift Capacity
Not Published
5,584.3 lb
Mid-PTO Availability
Not Published
Not Applicable
Category, 3-Point Hitch
I / II
Category II
Hitch Lift Capacity (at 24”)
3307 lbs
4,327.7 lb
R3 Turf - Rear
Not Published
Not Applicable
R3 Turf - Front
Not Published
Not Applicable
Tire Size & Options
Standard tire size
R1 Agricultural, R4 Industrial
R4 Industrial - Rear
Not Published
18.4-24/8
R4 Industrial - Front
Not Published
12.5/80-18
R1 Agricultural - Rear
16.9-28/14.9-28
16.9-30
R1 Agricultural - Front
HFC (2WD): 2.5 gal-15; HD/HDC (4WD): 9.5-24
11.2-24
Coolant Capacity
Not Published
2.51 gal
Crankcase Capacity
Not Published
2.83 gal
Fuel Tank Capacity
ROPS: 18.5 gal; CAB: 23.8 gal
26.40 gal
Front Axle Fluid Capacity
Not Published
2.60 gal
Transmission / Hydraulic System Capacity
Not Published
11.75 gal
Loader Lift Height
Height position: 132.7 in; Power position: 117.2 in
127.1 in (to pivot pin)
Loader Breakout Force
Not Published
5,875.3 lb (at pivot pins)
Quick Attach Loader System
LA1154A: 2-Lever Quick Coupler
Built-in parking stand; designed to be quickly and easily attached and detached.
