Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

KubotaM6060

—

KubotaL6060

Comparison loaded for 2 tractors.

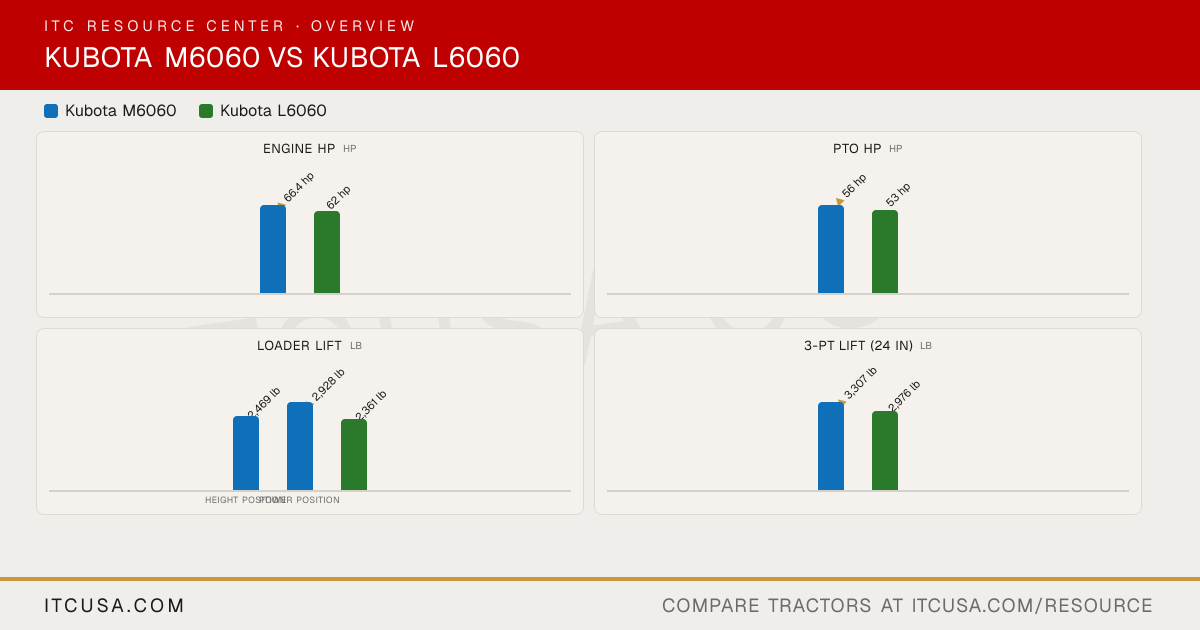

The headline numbers at a glance.

Kubota M6060Kubota L6060

Engine HPhp

▲66.4 hp

62 hp

PTO HPhp

▲56 hp

53 hp

Weightlb

—

Loader Liftlb

2,469 lb

▲2,928 lb

2,361 lb

Height positionPower position

3-Pt Lift (24 in)lb

▲3,307 lb

2,976 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaM6060	KubotaL6060


PTO Power	56 hp	53 hp
Alternator	45 A, 12 V	45 A, 12 V
Air Cleaner	Not Published	Dry paper, dual element
Engine Type	Liquid-cooled, diesel, 4-cylinder, Turbocharged	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged
Fuel System	Common Rail System (CRS)	Electronic Common Rail System (CRS)
Displacement	203.3 (3331)	148.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2400 rpm	2600 rpm
Cooling System Type	Liquid-cooled	Liquid-cooled
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	66.4 hp	62 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Gear	Tandem pump - gear type
Steering Flow	6.1 gpm	4.7 gpm
Implement Flow	11.0 gpm	9.4 gpm
Total Hydraulic Flow	17.1 gpm	14.1 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	17.1 gpm	14.1 gpm
No. of Optional Remote Valves	2nd, 3rd (optional)	Optional, up to 3 (double-acting valve or float detent valve options, any position)
No. of Standard Remote Valves	1 (SCD)	Not Published

PTO Rear	540 rpm (540/540E optional)	540 rpm @ 2400 engine rpm
PTO Type	Live-independent PTO, electro-hydraulic clutch with brake	Live independent (hydraulic clutch)
Lift Control Type	Position, Draft (Top Link Sensing) & Mixed Control	Position control
Hitch Lift Capacity	Not Published	3,858 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	I / II	SAE Category 1 & 2
Hitch Lift Capacity (at 24”)	3307 lbs	2,976 lb

R3 Turf - Rear	Not Published	44X18-20
R3 Turf - Front	Not Published	29X12.50-15
Tire Size & Options	Standard tire size	Standard R1; Option 1 R4; Option 2 R3; LSW option (R3)
R4 Industrial - Rear	Not Published	4.6 gal-24
R4 Industrial - Front	Not Published	10-16.5
R1 Agricultural - Rear	16.9-28/14.9-28	14.9-26; 13.6-28
R1 Agricultural - Front	HFC (2WD): 2.5 gal-15; HD/HDC (4WD): 9.5-24	9.5-16

Coolant Capacity	Not Published	8.7 qt
Crankcase Capacity	Not Published	9.9 qt
Fuel Tank Capacity	ROPS: 18.5 gal; CAB: 23.8 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	11.9 gal

Loader Lift Height	Height position: 132.7 in; Power position: 117.2 in	112.7 in
Loader Breakout Force	Not Published	3171 lb (14107 N)
Quick Attach Loader System	LA1154A: 2-Lever Quick Coupler	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	Height position: 2469 lb; Power position: 2928 lb	2361 lb

Clutch	Multiple wet disc	N/A
No. of Speeds	F8/R8	3-range, 6 speeds (H-DS), infinitely variable in each
Transmission Type	Hydraulic-shuttle transmission (fully synchronized)	Hydrostatic transmission
Max Travel Speed (Forward)	Not Published	16.8 mph
Max Travel Speed (Reverse)	Not Published	15.2 mph
Differential Lock & Limited Slip Options	HD/HDC (4WD): Rear differential lock standard (mechanical)	Rear differential lock, standard

Brakes	Mechanical wet disc	Wet disc type, mechanically activated
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	1,433 lbs.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	HFC (2WD): 84.4 in; HD/HDC (4WD): 83.1 in	75.4 in
Overall Width	73.0 in	67.3 in
Ground Clearance	18.1 in	15.4 in
Height to Top of ROPS	HD (4WD): 96.9 in	HST (4WD): 98.0 in; HSTC (4WD, CAB): Not Applicable
Height to Top of Cab Model	HFC (2WD), HDC (4WD): 100.6 in	HST (4WD): Not Applicable; HSTC (4WD, CAB): 92.5 in
Height to Top of ROPS (folded)	Not Published	HST (4WD): 92.5 in; HSTC (4WD, CAB): Not Applicable
Min. Turn Radius without Brakes	HFC (2WD): 10.8 ft (3.3 m); HD/HDC (4WD): 11.8 ft (3.6 m)	9.2 ft (2.8 m)
Overall Length with 3-Point Hitch	HFC (2WD): 142.7 in; HD/HDC (4WD): 138.0 in	135.0 in
