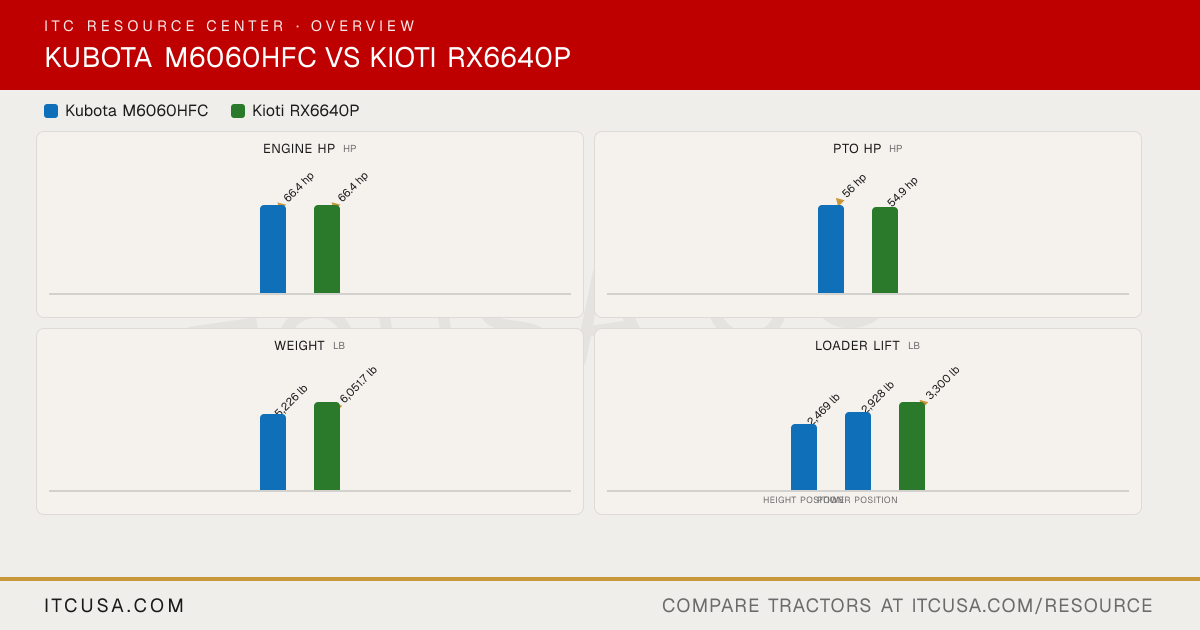

▶ EngineEngine Manufacturer Kubota KIOTI Engine Model V3307-CR-TE4 4H243T Engine Type Liquid-cooled, diesel, 4-cylinder, Turbocharged In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI (4H243T) No. of Cylinders 4 4 Displacement 203 in³ 148.6 in³ Rated Engine Speed 2400 rpm 2600 rpm Engine Power (Gross) 66.4 hp 66.4 hp PTO Power 56 hp 54.9 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry paper, dual element, 8 in diameter, with pre-cleaner Not Published Fuel System Common Rail System (CRS) Common Rail Direct Injection (CRDI) Alternator 60 A, 12 V Not Published ▶ HydraulicsPump Type Gear Tandem Gear Implement Flow 11.0 gpm 12.4 gpm Steering Flow 6.1 gpm 8.2 gpm Total Hydraulic Flow 17.1 gpm 20.6 gpm Overall Hydraulic Pump Flow 17.1 gpm 20.6 gpm Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow 11.0 gpm Not Published No. of Standard Remote Valves 1 (SCD) 1 No. of Optional Remote Valves 2nd, 3rd (optional) 1 ▶ Fluid CapacityFuel Tank Capacity 23.8 gal 26.4 gal Coolant Capacity 8.5 qt 2.51 gal Crankcase Capacity 12.7 qt 2.83 gal Transmission / Hydraulic System Capacity 14.8 gal 11.75 gal Front Axle Fluid Capacity Not Published 2.6 gal ▶ PTO & HitchPTO Type Live-independent PTO, electro-hydraulic clutch with brake Independent PTO Rear 540 rpm (540/540E optional) 540 / 540E rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch I / II Category II Hitch Lift Capacity 4189 lb 5,584.3 lb Hitch Lift Capacity (at 24”) 3307 lb 4,327.7 lb Lift Control Type Position, Draft (Top Link Sensing) & Mixed Control Electronic Control ▶ Transmission & DrivetrainTransmission Type Hydraulic-shuttle transmission (fully synchronized) Manual: Power Shuttle No. of Speeds F8/R8 12 forward / 12 reverse Max Travel Speed (Forward) 18.0 mph 22.01 mph Max Travel Speed (Reverse) 17.7 mph 21.92 mph Clutch Multiple wet disc Wet Disc Differential Lock & Limited Slip Options Rear differential lock standard (mechanical) Rear differential lock (standard) ▶ Chassis, Steering & ControlsFrame Type Certified ROPS cab Not Published Steering Hydrostatic power steering Hydrostatic Power Steering Brakes Mechanical wet disc Wet Multi Disc Seat Suspension & Adjustability Fully adjustable suspension seat (travel, suspension tension, backrest tilt, arm rests); optional air ride seat on cab models Mechanical Suspension Seat Front Axle Type Adjustable tubular steel Not Published Front Axle Rating 4410 lb (6615 lb with loader) Not Published Drawbar Capacity 2200 lb 1,984 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 142.7 in 150.3 in Overall Width 73.0 in 82.1 in Wheelbase 84.4 in 85.4 in Ground Clearance 18.1 in 15.7 in Min. Turn Radius without Brakes 10.8 ft 12.8 ft (with brake applied) Height to Top of ROPS Not Published 114.8 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 100.6 in Not Published ▶ WeightTractor Weight (Base) 5226 lb 6,051.7 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard: 7.5-16 front, 16.9-28 rear R1 Agricultural, R4 Industrial R1 Agricultural - Front 7.5-16 11.2-24 R1 Agricultural - Rear 16.9-28/14.9-28 16.9-30 R3 Turf - Front 29x12.5-15 or LSW610R343 Not Published R3 Turf - Rear 21.5L-16.1 or LSW570-648 Not Published R4 Industrial - Front Not Published 12.5/80-18 R4 Industrial - Rear Not Published 18.4-24/8 ▶ Loader & AttachmentsQuick Attach Loader System LA1154A: 2-Lever Quick Coupler Built-in parking stand; designed to be quickly and easily attached and detached. Loader Model LA1154A KL7340 Loader Lift Height Height position: 132.7 in; Power position: 117.2 in KL7340: 127.1 in (to pivot pin) Loader Lift Capacity (Full Height) Height position: 2469 lb; Power position: 2928 lb KL7340: 3,300 lb (at pivot pin, full height) Loader Breakout Force Height position: 4230 lbf; Power position: 5354 lbf KL7340: 5,875.3 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage All Usage - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours. Tractors (Non-Commercial Application): 24 months parts & labor; Extended (Non-Commercial, driveline/powertrain): 48 months parts & labor; Limited time: eligible units receive total 6 years (72 months) extended powertrain warranty coverage. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
