Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

KubotaM7-152

—

KubotaBX1880

Comparison loaded for 2 tractors.

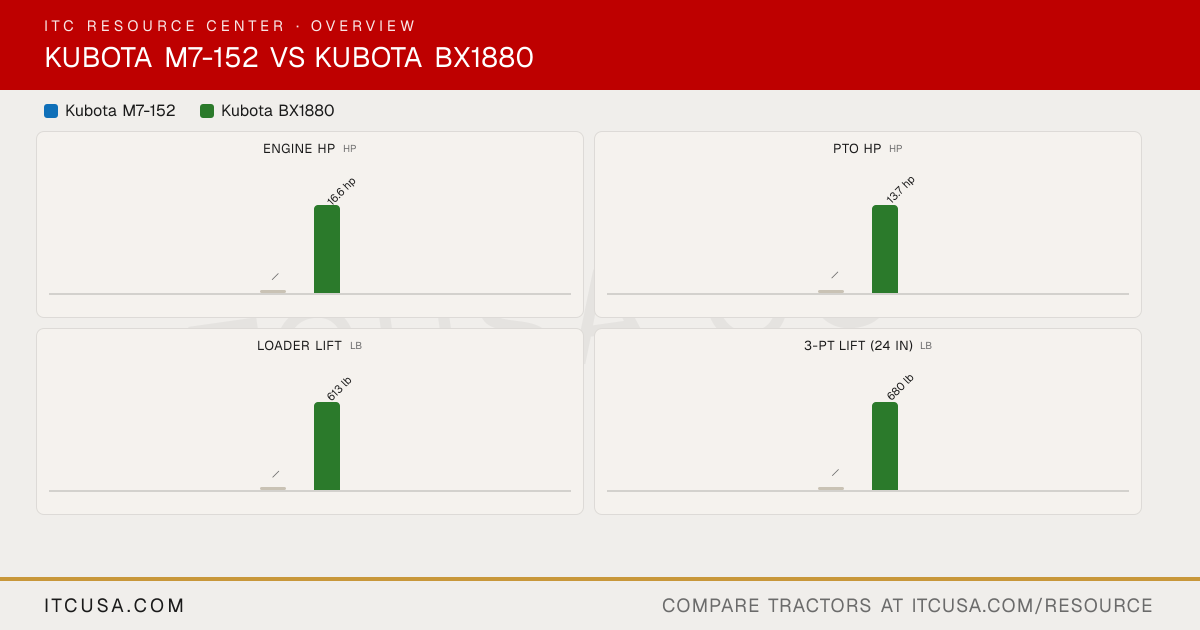

The headline numbers at a glance.

Kubota M7-152Kubota BX1880

Engine HPhp

—

16.6 hp

PTO HPhp

—

13.7 hp

Weightlb

—

Loader Liftlb

—

613 lb

3-Pt Lift (24 in)lb

—

680 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaM7-152	KubotaBX1880


PTO Power	—	13.7 hp
Alternator	—	40 A, 12 V
Air Cleaner	—	Sheet net and replaceable treated paper element, spin on oil filter
Engine Type	—	Liquid cooled, 4-cycle, diesel
Fuel System	—	Direct injection
Displacement	—	43.9 in³
No. of Cylinders	—	3
Rated Engine Speed	—	3200 rpm
Cooling System Type	—	Water with pressurized radiator, reverse air-flow design
Engine Manufacturer	—	Kubota
Engine Power (Gross)	—	16.6 hp
Engine Emissions Constraints	—	Not Published

Weight with ROPS and Loader	—	Not Published
Weight with Cab and Loader	—	Not Applicable

Warranty Length & Coverage	—	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	—	Open center tandem pump gear type
Steering Flow	—	1.0 gpm
Implement Flow	—	5.2 gpm
Total Hydraulic Flow	—	6.2 gpm
Hydraulic System Type	—	Open center
Rear Remote Hydraulic Flow	—	Not Published
Overall Hydraulic Pump Flow	—	6.2 gpm
No. of Optional Remote Valves	—	2 (optional; ISO 7241-1 series A or B)
No. of Standard Remote Valves	—	Not Published

PTO Rear	—	STD (540 rpm)
PTO Type	—	Live independent PTO (with hydraulic clutch)
Lift Control Type	—	Not Published
Hitch Lift Capacity	—	Not Published
Mid-PTO Availability	—	STD (2500 rpm)
Category, 3-Point Hitch	—	SAE Category I Optional
Hitch Lift Capacity (at 24”)	—	680 lb

R3 Turf - Rear	—	24X12-12
R3 Turf - Front	—	16X7.5-8
Tire Size & Options	—	R1 Agricultural, R3 Turf
R4 Industrial - Rear	—	Not Applicable
R4 Industrial - Front	—	Not Applicable
R1 Agricultural - Rear	—	24X12-12
R1 Agricultural - Front	—	16X7.5-8

Coolant Capacity	—	Not Published
Crankcase Capacity	—	Not Published
Fuel Tank Capacity	—	6.6 gal
Front Axle Fluid Capacity	—	Not Published
Transmission / Hydraulic System Capacity	—	Not Published

Loader Lift Height	—	70.7 in
Loader Breakout Force	—	1,286 lbf (bucket pivot pin)
Quick Attach Loader System	—	Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
Loader Lift Capacity (Full Height)	—	613 lb

Clutch	—	Dry type single plate - Main clutch 9.45 in.
No. of Speeds	—	2 Range (Low-High)
Transmission Type	—	Hydrostatic transmission
Max Travel Speed (Forward)	—	7.5 mph
Max Travel Speed (Reverse)	—	5.6 mph
Differential Lock & Limited Slip Options	—	Rear differential lock standard

Brakes	—	Mechanical, wet disc type
Steering	—	Integral power steering
Frame Type	—	Not Published
Front Axle Type	—	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	—	Max. drawbar load @ hitch: 550 lb.
Front Axle Rating	—	Not Published
Seat Suspension & Adjustability	—	Not Published

Wheelbase	—	55.1 in
Overall Width	—	44.1 in
Ground Clearance	—	5.8 in
Height to Top of ROPS	—	81.9 in
Height to Top of Cab Model	—	Not Applicable
Height to Top of ROPS (folded)	—	Not Published
Min. Turn Radius without Brakes	—	7.5 ft (2.3 m)
Overall Length with 3-Point Hitch	—	95.5 in

Accessories that fit	None tagged yet	Kubota BX80 Series Brush Guard Insert (S/N C1630 and up) $259.00 S/N C1630 and after Kubota BX80 Series Brush Guard Insert (S/N before C1630) $299.00 S/N before C1630
