Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

KubotaM7060

—

LSMT473C

Comparison loaded for 2 tractors.

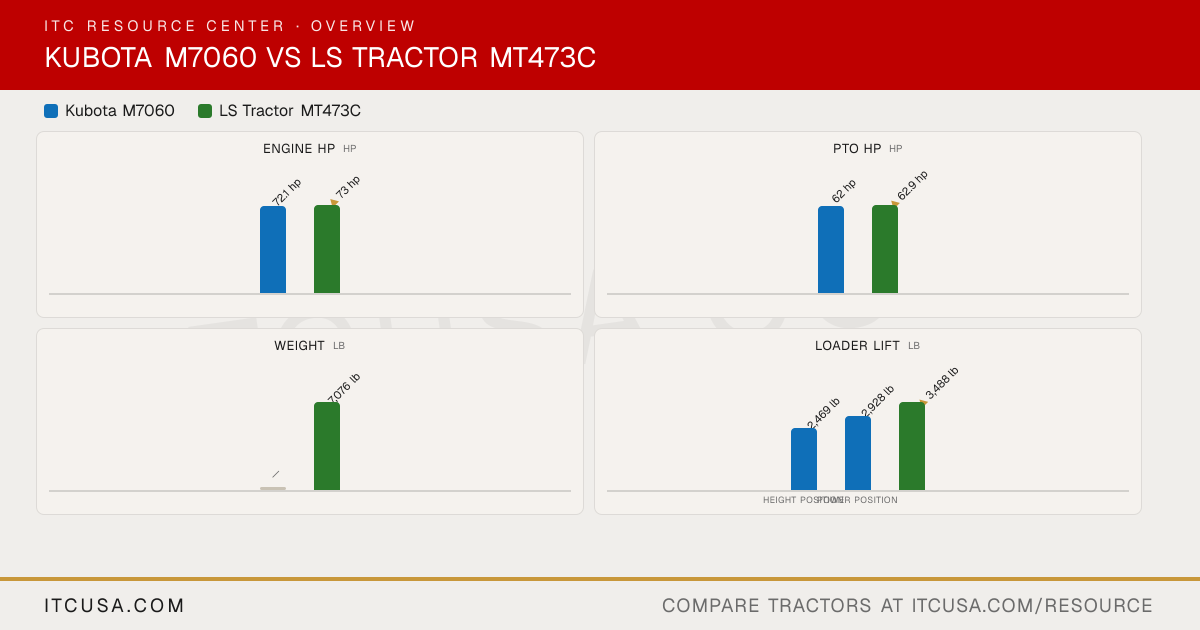

The headline numbers at a glance.

Kubota M7060LS Tractor MT473C

Engine HPhp

72.1 hp

▲73 hp

PTO HPhp

62 hp

▲62.9 hp

Weightlb

—

7,076 lb

Loader Liftlb

2,469 lb

2,928 lb

▲3,488 lb

Height positionPower position

3-Pt Lift (24 in)lb

3,307 lb

▲3,483 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaM7060	LS TractorMT473C


PTO Power	62 hp	62.9 hp
Alternator	45 A, 12 V	70 A, 12 V
Air Cleaner	Not Published	Dry
Engine Type	Liquid-cooled, diesel, 4-cylinder, Turbocharged	In-line vertical, water cooled 4-cycle diesel, CRDI
Fuel System	Common Rail System (CRS)	Delphi, CRDI
Displacement	203.3 (3331)	152.9 in³
No. of Cylinders	4	4
Rated Engine Speed	2400 rpm	2500 rpm
Cooling System Type	Liquid-cooled	Water-cooled
Engine Manufacturer	Kubota	LS Mtron
Engine Power (Gross)	72.1 hp	73 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	7,076 lb

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Pump Type	Gear	Gear type, engine drive
Steering Flow	HFC (2WD), HD/HDC (4WD): 6.1 gpm; HD12/HDC12 (4WD): 6.1 gpm	6.8 gpm
Implement Flow	HFC (2WD), HD/HDC (4WD): 11.0 gpm; HD12/HDC12 (4WD): 16.2 gpm	14.9 gpm
Total Hydraulic Flow	HFC (2WD), HD/HDC (4WD): 17.1 gpm; HD12/HDC12 (4WD): 22.3 gpm	21.7 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	HFC (2WD), HD/HDC (4WD): 17.1 gpm; HD12/HDC12 (4WD): 22.3 gpm	21.7 gpm
No. of Optional Remote Valves	2nd, 3rd (optional)	Not Published
No. of Standard Remote Valves	1 (SCD)	2 Pairs (Front), 2 Pairs (Rear)

PTO Rear	HFC (2WD), HD/HDC (4WD): 540 rpm (540/540E optional); HD12/HDC12 (4WD): 540/540E rpm	540 / 540E
PTO Type	Live-independent PTO, electro-hydraulic clutch with brake	Independent
Lift Control Type	Position, Draft (Top Link Sensing) & Mixed Control	Position & Draft
Hitch Lift Capacity	Not Published	4,079 lbs
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	I / II	Category II
Hitch Lift Capacity (at 24”)	3307 lbs	3,483 lbs

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Standard tire size	Multiple options available (Standard Ag, Industrial, Large Ag, R14)
R4 Industrial - Rear	Not Published	19.5LX24
R4 Industrial - Front	Not Published	10.5/80X18
R1 Agricultural - Rear	16.9-30	16.9-30
R1 Agricultural - Front	9.5-24	11.2-24

Coolant Capacity	Not Published	3.0 gal
Crankcase Capacity	Not Published	1.8 gal
Fuel Tank Capacity	ROPS: 18.5 gal; CAB: 23.8 gal	24.3 gal
Front Axle Fluid Capacity	Not Published	2.3 gal
Transmission / Hydraulic System Capacity	Not Published	16.5 gal

Loader Lift Height	Height position: 132.7 in; Power position: 117.2 in	132.9 in
Loader Breakout Force	Not Published	Not Published
Quick Attach Loader System	LA1154A: 2-Lever Quick Coupler	LL5001: Standard Quick-Attach, Skid-Steer Compatible (SSQA)
Loader Lift Capacity (Full Height)	Height position: 2469 lb; Power position: 2928 lb	3,488 lb

Clutch	Multiple wet disc	Dry single clutch
No. of Speeds	HFC (2WD), HD/HDC (4WD): F8/R8; HD12/HDC12 (4WD): F12/R12	F16 X R16
Transmission Type	HFC (2WD), HD/HDC (4WD): Hydraulic-shuttle (F8/R8), fully synchronized (4-speed main); HD12/HDC12 (4WD): Hydraulic-shuttle (F12/R12), fully synchronized (6-speed main)	Synchro Shuttle
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	HD/HDC (4WD): Rear differential lock standard (mechanical); HD12/HDC12 (4WD): Front limited slip differential; Rear differential lock standard (mechanical)	Mechanical differential lock (pedal)

Brakes	HFC (2WD), HD/HDC (4WD): Mechanical wet disc; HD12/HDC12 (4WD): Hydraulic wet disc	Wet, Multi-disc
Steering	Hydrostatic power steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Seat With Suspension & Armrest

Wheelbase	HFC (2WD): 84.4 in; HD/HDC (4WD), HD12/HDC12 (4WD): 83.1 in	83.1 in
Overall Width	73.0 in	72.6 in
Ground Clearance	18.1 in	Not Published
Height to Top of ROPS	HD (4WD), HD12 (4WD): 97.2 in	Not Applicable
Height to Top of Cab Model	HFC (2WD), HDC (4WD), HDC12 (4WD): 101.0 in	105.4 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	HFC (2WD): 10.8 ft (3.3 m); HD/HDC (4WD), HD12/HDC12 (4WD): 11.8 ft (3.6 m)	12.8 ft (3.9 m)
Overall Length with 3-Point Hitch	HFC (2WD): 142.7 in; HD/HDC (4WD), HD12/HDC12 (4WD): 138.0 in	154 in
