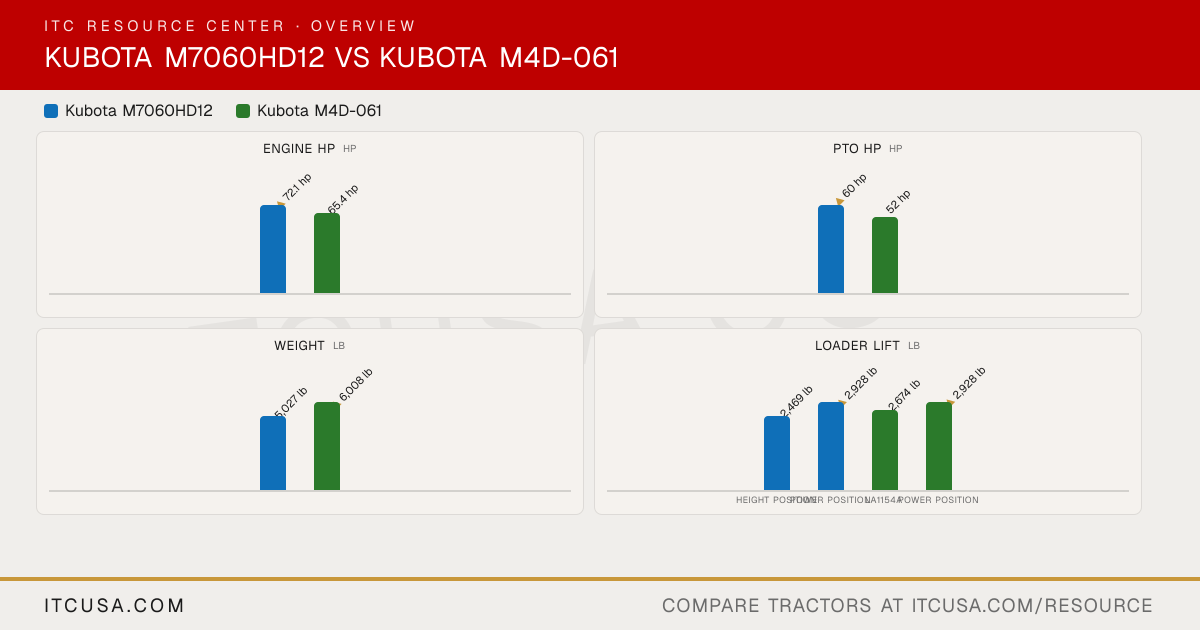

The headline numbers at a glance.
Kubota M7060HD12Kubota M4D-061
ITCUSA.COMITCUSA.COMITCUSA.COM
Engine HPhp
▲72.1 hp
65.4 hp
PTO HPhp
▲60 hp
52 hp
Weightlb
5,027 lb
▲6,008 lb
Loader Liftlb
2,469 lb
▲2,928 lb
2,674 lb
▲2,928 lb
Height positionPower positionLA1154APower position
Front limited slip differential; Rear differential lock (mechanical)
Frame Type
Two-post foldable ROPS
Ultra Grand Cab II
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Hydraulic wet disc
Hydraulic wet disc
Seat Suspension & Adjustability
Fully adjustable suspension seat (travel, suspension tension, backrest tilt, arm rests); optional air ride seat on cab models
Deluxe mechanical suspension seat with adjustable armrest, seat height, weight (suspension) and backrest tilt; optional air ride seat
Front Axle Type
Bevel gear type with 55 degree turning angle (4WD)
Bevel gear type (4WD)
Front Axle Rating
5290 lb (6615 lb with loader)
Not Published
Drawbar Capacity
2200 lb
2200 lb
Overall Length with 3-Point Hitch
138.0 in
142 in
Overall Width
73.0 in
75.6 in
Wheelbase
83.1 in
84.1 in
Ground Clearance
18.1 in
18.1 in
Min. Turn Radius without Brakes
11.8 ft
11.8 ft
Height to Top of ROPS
97.2 in
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
101 in
Tractor Weight (Base)
5027 lb
6008 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Standard: 9.5-24 front, 16.9-30 rear
Standard: 320/70R24 front, 420/75R34 rear
R1 Agricultural - Front
9.5-24
320/70R24
R1 Agricultural - Rear
16.9-30
420/75R34
R3 Turf - Front
Not Published
9.50-24
R3 Turf - Rear
Not Published
18.4-26
R4 Industrial - Front
14-17.5
14-17.5
R4 Industrial - Rear
16.9-24
16.9-24
Quick Attach Loader System
LA1154A: 2-Lever Quick Coupler
LA1154A: 2-Lever Quick Coupler
Loader Model
LA1154A
LA1154A
Loader Lift Height
Height position: 132.7 in; Power position: 117.2 in
LA1154A: Height position: 133.0 in; Power position: 117.6 in
Loader Lift Capacity (Full Height)
Height position: 2469 lb; Power position: 2928 lb
LA1154A: Height position: 2674 lb; Power position: 2928 lb
Loader Breakout Force
Height position: 4230 lbf; Power position: 5354 lbf
LA1154A: Height position: 4079 lbf; Power position: 5128 lbf
Warranty Length & Coverage
All Usage - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
