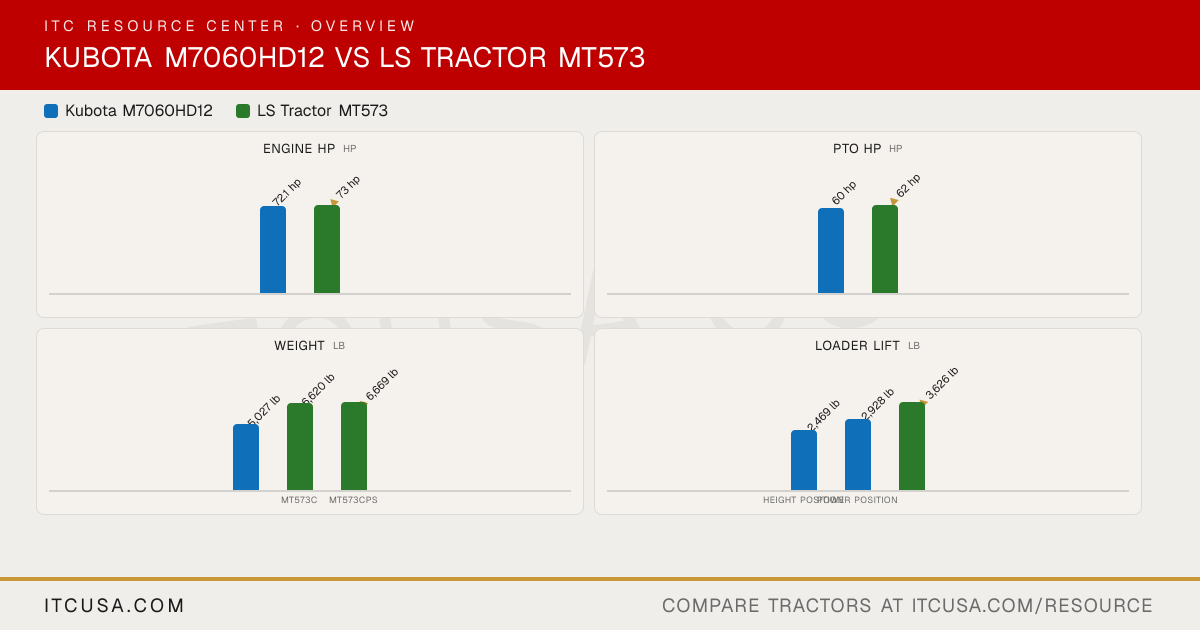

▶ EngineEngine Manufacturer Kubota LS Mtron Engine Model V3307-CR-TE4 L4C25-T Engine Type Liquid-cooled, diesel, 4-cylinder, Turbocharged In-line vertical, water cooled 4-cycle diesel, CRDI No. of Cylinders 4 4 Displacement 203 in³ 152.9 in³ Rated Engine Speed 2400 rpm 2500 rpm Engine Power (Gross) 72.1 hp 73 hp PTO Power 60 hp 62 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry paper, dual element, 8 in diameter, with pre-cleaner Dry Fuel System Common Rail System (CRS) Delphi, CRDI Alternator 45 A, 12 V 70 A, 12 V ▶ HydraulicsPump Type Gear Gear type, engine drive Implement Flow 16.2 gpm 13.2 gpm Steering Flow 6.1 gpm 6.6 gpm Total Hydraulic Flow 22.3 gpm 19.8 gpm Overall Hydraulic Pump Flow 22.3 gpm 19.8 gpm Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow 16.2 gpm Not Published No. of Standard Remote Valves 1 (SCD) 3 Pairs (Front), 3 Pairs (Rear) No. of Optional Remote Valves 2nd, 3rd (optional) Not Published ▶ Fluid CapacityFuel Tank Capacity 18.5 gal 26.4 gal Coolant Capacity 8.5 qt 2.6 gal Crankcase Capacity 12.7 qt 2.1 gal Transmission / Hydraulic System Capacity 14.8 gal 14.5 gal Front Axle Fluid Capacity 5.8 qt (differential) plus 3.7 qt (each bevel gear case) 1.5 gal ▶ PTO & HitchPTO Type Live-independent PTO, electro-hydraulic clutch with brake Independent PTO Rear 540/540E rpm 540 / 750 / 1,000 Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch I / II Category II Hitch Lift Capacity 4189 lb 6,614 lb Hitch Lift Capacity (at 24”) 3307 lb 4,718 lb Lift Control Type Position, Draft (Top Link Sensing) & Mixed Control Position & Draft ▶ Transmission & DrivetrainTransmission Type Hydraulic-shuttle (F12/R12), fully synchronized (6-speed main) MT573C: Synchro Shuttle; MT573CPS: Power Shuttle No. of Speeds F12/R12 F20 x R20 Max Travel Speed (Forward) 24.3 mph 19.4 mph Max Travel Speed (Reverse) 23.9 mph Not Published Clutch Multiple wet disc Wet clutch disks Differential Lock & Limited Slip Options Limited slip differential (front); mechanical differential lock (rear) Electro-hydraulic differential lock (EHD) ▶ Chassis, Steering & ControlsFrame Type Two-post foldable ROPS Not Published Steering Hydrostatic power steering Hydrostatic Brakes Hydraulic wet disc Not Published Seat Suspension & Adjustability Fully adjustable suspension seat (travel, suspension tension, backrest tilt, arm rests); optional air ride seat on cab models Air suspension seat (10° swivel) Front Axle Type Bevel gear type with 55 degree turning angle (4WD) Not Published Front Axle Rating 5290 lb (6615 lb with loader) Not Published Drawbar Capacity 2200 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 138.0 in 150 in Overall Width 73.0 in 77.5 in Wheelbase 83.1 in 84.6 in Ground Clearance 18.1 in Not Published Min. Turn Radius without Brakes 11.8 ft 13.0 ft (4.0 m) Height to Top of ROPS 97.2 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 104.4 in ▶ WeightTractor Weight (Base) 5027 lb MT573C: 6,620 lb; MT573CPS: 6,669 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published 7,901 lb ▶ Tire OptionsTire Size & Options Standard: 9.5-24 front, 16.9-30 rear Ag 11.2-24 / 16.9-30; R14 W320/85R24 122D / W460/85R30 145D R1 Agricultural - Front 9.5-24 11.2-24 R1 Agricultural - Rear 16.9-30 16.9-30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 14-17.5 Not Published R4 Industrial - Rear 16.9-24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System LA1154A: 2-Lever Quick Coupler LL6100: ISO 24410 “Quick Attachment” (Bobcat-type / skid-steer style; lever-lock with latch pins) Loader Model LA1154A LL6100 Loader Lift Height Height position: 132.7 in; Power position: 117.2 in LL6100: 126.5 in Loader Lift Capacity (Full Height) Height position: 2469 lb; Power position: 2928 lb LL6100: 3,626 lb Loader Breakout Force Height position: 4230 lbf; Power position: 5354 lbf LL6100: 6,644 lb ▶ WarrantyWarranty Length & Coverage All Usage - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours. 6-year / 1,500-hour limited powertrain warranty; 2-year / 750-hour bumper-to-bumper warranty ▶ ITC Company AccessoriesAccessories that fit None tagged yet
