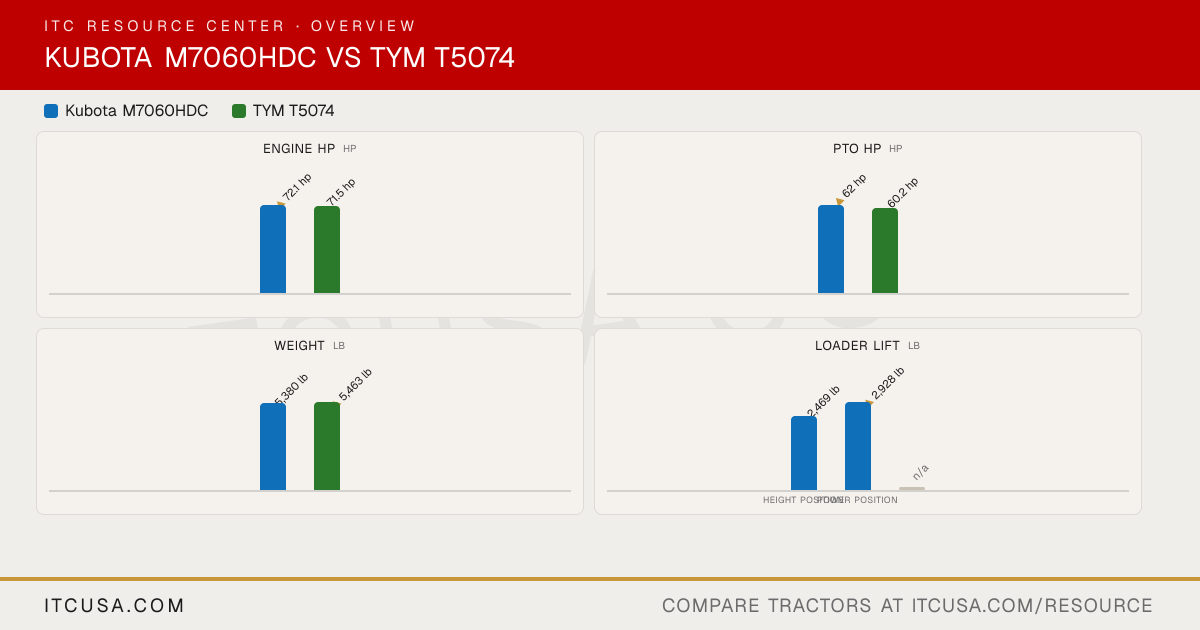

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model V3307-CR-TE4 4TN98CT-7PKTF Engine Type Liquid-cooled, diesel, 4-cylinder, Turbocharged 4-cylinder, water-cooled, turbocharged diesel No. of Cylinders 4 4 Displacement 203 in³ 202.5 in³ Rated Engine Speed 2400 rpm 2400 rpm Engine Power (Gross) 72.1 hp 71.5 hp PTO Power 62 hp 60.2 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry paper, dual element, 8 in diameter, with pre-cleaner PowerCore Type Fuel System Common Rail System (CRS) CRDI Alternator 60 A, 12 V 70 A, 12 V ▶ HydraulicsPump Type Gear Dual gear pump Implement Flow 11.0 gpm 10.3 gpm Steering Flow 6.1 gpm 5.8 gpm Total Hydraulic Flow 17.1 gpm 16.1 gpm Overall Hydraulic Pump Flow 17.1 gpm 16.1 gpm Hydraulic System Type Open Center Not Published Rear Remote Hydraulic Flow 11.0 gpm Not Published No. of Standard Remote Valves 1 (SCD) Not Published No. of Optional Remote Valves 2nd, 3rd (optional) Not Published ▶ Fluid CapacityFuel Tank Capacity 23.8 gal 19 gal Coolant Capacity 8.5 qt 3 gal Crankcase Capacity 12.7 qt Not Published Transmission / Hydraulic System Capacity 14.8 gal 13.7 gal Front Axle Fluid Capacity 5.8 qt (differential) plus 3.7 qt (each bevel gear case) 2.4 gal ▶ PTO & HitchPTO Type Live-independent PTO, electro-hydraulic clutch with brake Independent PTO Rear 540 rpm (540/540E optional) 540/750 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch I / II Category II Hitch Lift Capacity 4,189 lb 4,329 lb Hitch Lift Capacity (at 24”) 3,307 lb 3,159 lb Lift Control Type Position, Draft (Top Link Sensing) & Mixed Control Position/Draft ▶ Transmission & DrivetrainTransmission Type Hydraulic-shuttle (F8/R8), fully synchronized (4-speed main) Power shuttle No. of Speeds F8/R8 F12 x R12 Max Travel Speed (Forward) 18.8 mph 13.5 mph Max Travel Speed (Reverse) 18.5 mph Not Published Clutch Multiple wet disc Wet Multi Plate Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Certified ROPS cab Not Published Steering Hydrostatic power steering Hydrostatic Brakes Mechanical wet disc Wet disc Seat Suspension & Adjustability Suspension seat, adjustable (travel, suspension tension, backrest tilt, armrests); optional air-suspension seat on cab models Adjustable sliding seat with backrest angle and cushion firmness adjustment Front Axle Type Bevel gear type with 55 degree turning angle (4WD) Not Published Front Axle Rating 5,290 lb (6,615 lb with loader) Not Published Drawbar Capacity 2,200 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 73.0 in 81.4 in Wheelbase 83.1 in 84.6 in Ground Clearance Not Published 17.6 in Min. Turn Radius without Brakes 11.8 ft 164.2 in; 169.3 in Height to Top of ROPS Not Published 106.8 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 101.0 in Not Published Overall Length 138.0 in 148.1 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 5,380 lb 5,463 lb (with ROPS) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard: 9.5-24 front, 16.9-30 rear Not Published R1 Agricultural - Front 9.5-24 11.2-24 R1 Agricultural - Rear 16.9-30 16.9-30 R3 Turf - Front LSW305-521 Not Published R3 Turf - Rear LSW570-648 Not Published R4 Industrial - Front 14-17.5 15-19.5 R4 Industrial - Rear 16.9-24 18.4-24 ▶ Loader & AttachmentsQuick Attach Loader System LA1154A: 2-Lever Quick Coupler Not Published Loader Model LA1154A L5074SL Loader Lift Height Height position: 132.7 in; Power position: 117.2 in Not Published Loader Lift Capacity (Full Height) Height position: 2,469 lb; Power position: 2,928 lb Not Published Loader Breakout Force Height position: 4,230 lbf; Power position: 5,354 lbf Not Published ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours Basic 24 months or 2,000 hours, parts and labor; loaders, backhoes and mid-mount mowers 12 months ▶ ITC Company AccessoriesAccessories that fit None tagged yet
