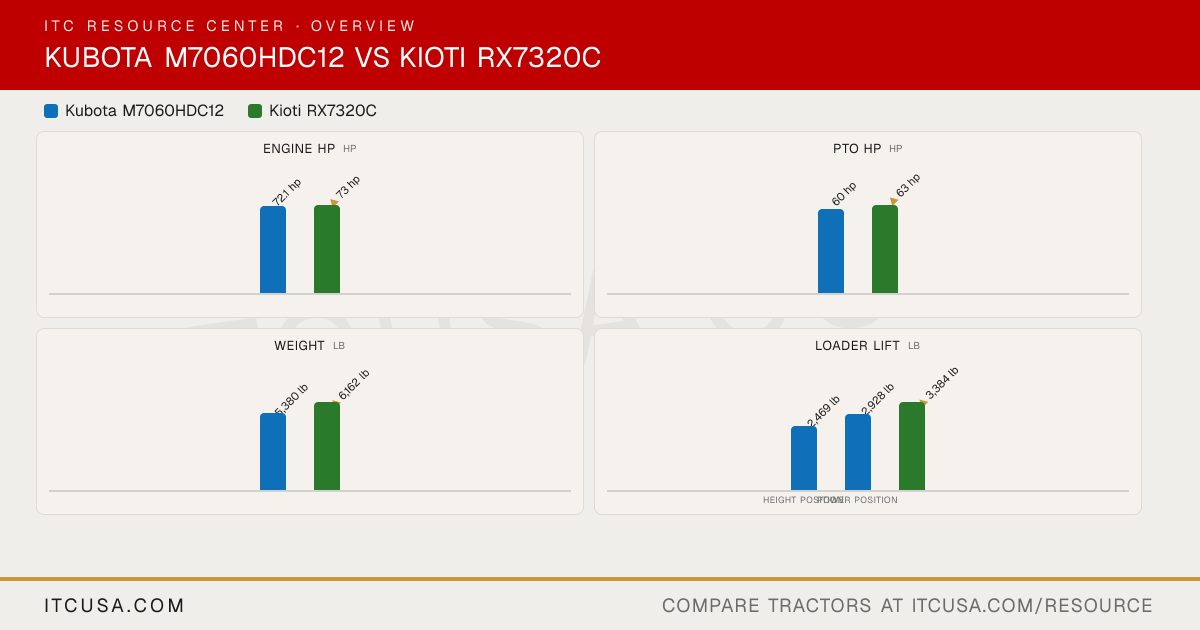

▶ EngineEngine Manufacturer Kubota KIOTI Engine Model V3307-CR-TE4 4F243T Engine Type Liquid-cooled, diesel, 4-cylinder, Turbocharged In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI (4F243T) No. of Cylinders 4 4 Displacement 203 in³ 148.6 in³ Rated Engine Speed 2400 rpm 2600 rpm Engine Power (Gross) 72.1 hp 73 hp PTO Power 60 hp 63 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry paper, dual element, 8 in diameter, with pre-cleaner Dry element Fuel System Common Rail System (CRS) Common Rail Direct Injection (CRDI) Alternator 60 A, 12 V Not Published ▶ HydraulicsPump Type Gear Gear Implement Flow 16.2 gpm 11.0 gpm Steering Flow 6.1 gpm 8.2 gpm Total Hydraulic Flow 22.3 gpm 19.2 gpm Overall Hydraulic Pump Flow 22.3 gpm 19.2 gpm Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow 16.2 gpm Not Published No. of Standard Remote Valves 1 (SCD) 1 No. of Optional Remote Valves 2nd, 3rd (optional) 2 ▶ Fluid CapacityFuel Tank Capacity 23.8 gal 25.1 gal Coolant Capacity 8.5 qt 2.40 gal Crankcase Capacity 12.7 qt 2.2 gal Transmission / Hydraulic System Capacity 14.8 gal 15.9 gal Front Axle Fluid Capacity 5.8 qt (differential) plus 3.7 qt (each bevel gear case) 2.2 gal ▶ PTO & HitchPTO Type Live-independent PTO, electro-hydraulic clutch with brake Independent PTO Rear 540/540E rpm 540 / 540E rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch I / II Category II Hitch Lift Capacity 4189 lb 4,974 lb Hitch Lift Capacity (at 24”) 3307 lb 3,898 lb Lift Control Type Position, Draft (Top Link Sensing) & Mixed Control Position, Draft, Mixed Control ▶ Transmission & DrivetrainTransmission Type Hydraulic-shuttle (F12/R12), fully synchronized (6-speed main) Manual: Synchro Shuttle No. of Speeds F12/R12 12 forward / 12 reverse Max Travel Speed (Forward) 24.3 mph 23.53 mph Max Travel Speed (Reverse) 23.9 mph 23.13 mph Clutch Multiple wet disc Dry Single Plate Differential Lock & Limited Slip Options Limited slip differential (front); mechanical differential lock (rear) Rear differential lock (standard) ▶ Chassis, Steering & ControlsFrame Type Certified ROPS cab Not Published Steering Hydrostatic power steering Hydrostatic Power Steering Brakes Hydraulic wet disc Wet Multi Disc Seat Suspension & Adjustability Fully adjustable suspension seat (travel, suspension tension, backrest tilt, arm rests); optional air ride seat on cab models Adjustable Seat Front Axle Type Bevel gear type with 55 degree turning angle (4WD) Not Published Front Axle Rating 5290 lb (6615 lb with loader) Not Published Drawbar Capacity 2200 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 138.0 in 146.3 in Overall Width 73.0 in 77.2 in Wheelbase 83.1 in 83.9 in Ground Clearance 18.1 in 17.3 in Min. Turn Radius without Brakes 11.8 ft 11.2 ft (with brake applied) Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 101.0 in 104.5 in ▶ WeightTractor Weight (Base) 5380 lb 6,162 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard: 9.5-24 front, 16.9-30 rear R1 Agricultural, R4 Industrial R1 Agricultural - Front 9.5-24 11.2-24 R1 Agricultural - Rear 16.9-30 16.9-30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 14-17.5 12.5/80-18 R4 Industrial - Rear 16.9-24 18.4-24/8 ▶ Loader & AttachmentsQuick Attach Loader System LA1154A: 2-Lever Quick Coupler Built-in parking stand; designed to be quickly and easily attached and detached. Loader Model LA1154A KL7320 Loader Lift Height Height position: 132.7 in; Power position: 117.2 in KL7320: 133.9 in (to pivot pin) Loader Lift Capacity (Full Height) Height position: 2469 lb; Power position: 2928 lb KL7320: 3,384 lb (to full height at pivot pins) Loader Breakout Force Height position: 4230 lbf; Power position: 5354 lbf KL7320: 5,359 lb (at pivot pins) ▶ WarrantyWarranty Length & Coverage All Usage - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours. Tractors (Non-Commercial Application): 24 months parts & labor; Extended (Non-Commercial, driveline/powertrain): 48 months parts & labor; Limited time: eligible units receive total 6 years (72 months) extended powertrain warranty coverage. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
