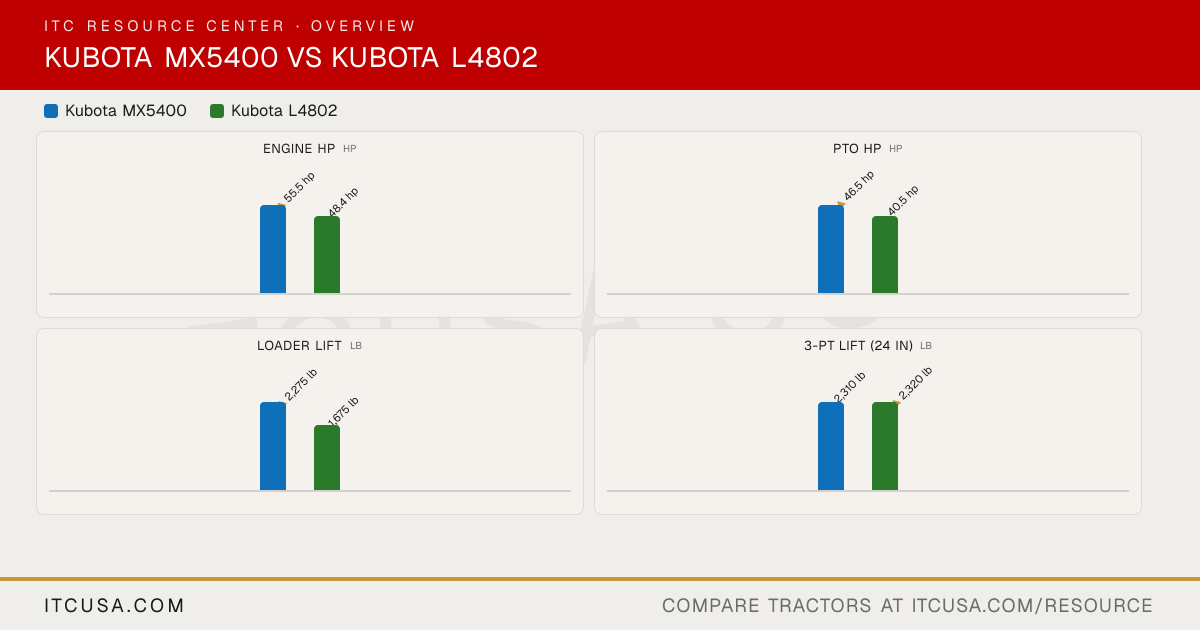

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaMX5400
KubotaL4802
PTO Power
46.5 hp
40.5 hp
Alternator
45 A, 12 V
Not Published
Air Cleaner
Dry-dual element
Not Published
Engine Type
Liquid-cooled, diesel, 4-cylinder, Turbocharged
Direct injection, vertical, water-cooled 4-cycle, diesel
Fuel System
Not Published
Direct injection
Displacement
148.6 (2434)
148.5 in³
No. of Cylinders
4
4
Rated Engine Speed
2700 rpm
2600 rpm
Cooling System Type
Liquid-cooled
Water-cooled
Engine Manufacturer
Kubota
Kubota
Engine Power (Gross)
55.5 hp
48.4 hp
Engine Emissions Constraints
Not Published
Not Published
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Applicable
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Gear
Not Published
Steering Flow
4.9 gpm
4.7 gpm
Implement Flow
9.5 gpm
7.8 gpm
Total Hydraulic Flow
14.4 gpm
12.5 gpm
Hydraulic System Type
Open Center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
14.4 gpm
12.5 gpm
No. of Optional Remote Valves
Maximum 3 (opt)
Not Published
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Live independent, hydraulic PTO with PTO brake, wet clutch
Live independent PTO with hydraulic clutch
Lift Control Type
Position (std), Draft (opt)
Position control
Hitch Lift Capacity
Not Published
2870 lb
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
I & II
SAE Category I
Hitch Lift Capacity (at 24”)
2310 lbs
2320 lb
R3 Turf - Rear
Not Published
DT (2WD/4WD), HST (4WD): 44X18-20; DTN (4WD): Not Applicable
