Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

KubotaMX5400

—

KubotaL6060

Comparison loaded for 2 tractors.

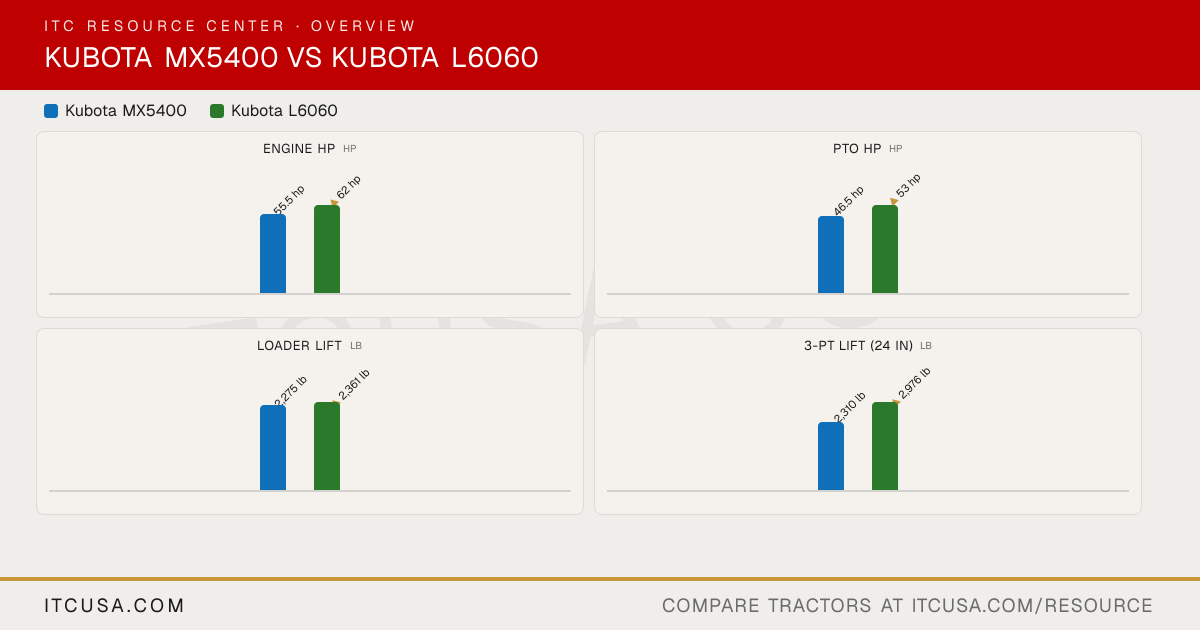

The headline numbers at a glance.

Kubota MX5400Kubota L6060

Engine HPhp

55.5 hp

▲62 hp

PTO HPhp

46.5 hp

▲53 hp

Weightlb

—

Loader Liftlb

2,275 lb

▲2,361 lb

3-Pt Lift (24 in)lb

2,310 lb

▲2,976 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaMX5400	KubotaL6060


PTO Power	46.5 hp	53 hp
Alternator	45 A, 12 V	45 A, 12 V
Air Cleaner	Dry-dual element	Dry paper, dual element
Engine Type	Liquid-cooled, diesel, 4-cylinder, Turbocharged	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged
Fuel System	Not Published	Electronic Common Rail System (CRS)
Displacement	148.6 (2434)	148.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2700 rpm	2600 rpm
Cooling System Type	Liquid-cooled	Liquid-cooled
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	55.5 hp	62 hp
Engine Emissions Constraints	Not Published	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Gear	Tandem pump - gear type
Steering Flow	4.9 gpm	4.7 gpm
Implement Flow	9.5 gpm	9.4 gpm
Total Hydraulic Flow	14.4 gpm	14.1 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.4 gpm	14.1 gpm
No. of Optional Remote Valves	Maximum 3 (opt)	Optional, up to 3 (double-acting valve or float detent valve options, any position)
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	540 rpm @ 2400 engine rpm
PTO Type	Live independent, hydraulic PTO with PTO brake, wet clutch	Live independent (hydraulic clutch)
Lift Control Type	Position (std), Draft (opt)	Position control
Hitch Lift Capacity	Not Published	3,858 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	I & II	SAE Category 1 & 2
Hitch Lift Capacity (at 24”)	2310 lbs	2,976 lb

R3 Turf - Rear	Not Published	44X18-20
R3 Turf - Front	Not Published	29X12.50-15
Tire Size & Options	Standard tire size	Standard R1; Option 1 R4; Option 2 R3; LSW option (R3)
R4 Industrial - Rear	Not Published	4.6 gal-24
R4 Industrial - Front	Not Published	10-16.5
R1 Agricultural - Rear	14.9-26	14.9-26; 13.6-28
R1 Agricultural - Front	DT (2WD): 2 gal-15; DT (4WD), HST (4WD): 9.5-16	9.5-16

Coolant Capacity	Not Published	8.7 qt
Crankcase Capacity	Not Published	9.9 qt
Fuel Tank Capacity	ROPS: 13.5 gal; CAB: 11.9 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	11.9 gal

Loader Lift Height	111.2 in	112.7 in
Loader Breakout Force	3102 lb (13798 N)	3171 lb (14107 N)
Quick Attach Loader System	1065A: 2-Lever Quick Coupler for Loader Attachment	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	2275 lb	2361 lb

Clutch	DT (2WD/4WD): Dry single plate; HST (4WD): No clutch	N/A
No. of Speeds	DT (2WD/4WD): 8F/8R; HST (4WD): 3-range	3-range, 6 speeds (H-DS), infinitely variable in each
Transmission Type	DT (2WD/4WD): 8-speed gear-drive (synchronized shuttle); HST (4WD): 3-range hydrostatic (HST)	Hydrostatic transmission
Max Travel Speed (Forward)	DT (2WD/4WD): 17.3 mph; HST (4WD): 17.7 mph	16.8 mph
Max Travel Speed (Reverse)	DT (2WD/4WD): 15.9 mph; HST (4WD): 16.0 mph	15.2 mph
Differential Lock & Limited Slip Options	Rear differential lock standard (mechanical)	Rear differential lock, standard

Brakes	Mechanical wet disc	Wet disc type, mechanically activated
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	1,433 lbs.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	High-back suspension seat (optional arm rests)	Not Published

Wheelbase	74.6 in	75.4 in
Overall Width	69.7 in	67.3 in
Ground Clearance	15.2 in	15.4 in
Height to Top of ROPS	95.7 in	HST (4WD): 98.0 in; HSTC (4WD, CAB): Not Applicable
Height to Top of Cab Model	92.7 in	HST (4WD): Not Applicable; HSTC (4WD, CAB): 92.5 in
Height to Top of ROPS (folded)	Not Published	HST (4WD): 92.5 in; HSTC (4WD, CAB): Not Applicable
Min. Turn Radius without Brakes	Not Published	9.2 ft (2.8 m)
Overall Length with 3-Point Hitch	Not Published	135.0 in
