Kubota MX5400DT vs Kubota MX5400 | Side-by-side comparison | ITC Resource Center
Compare Tractors

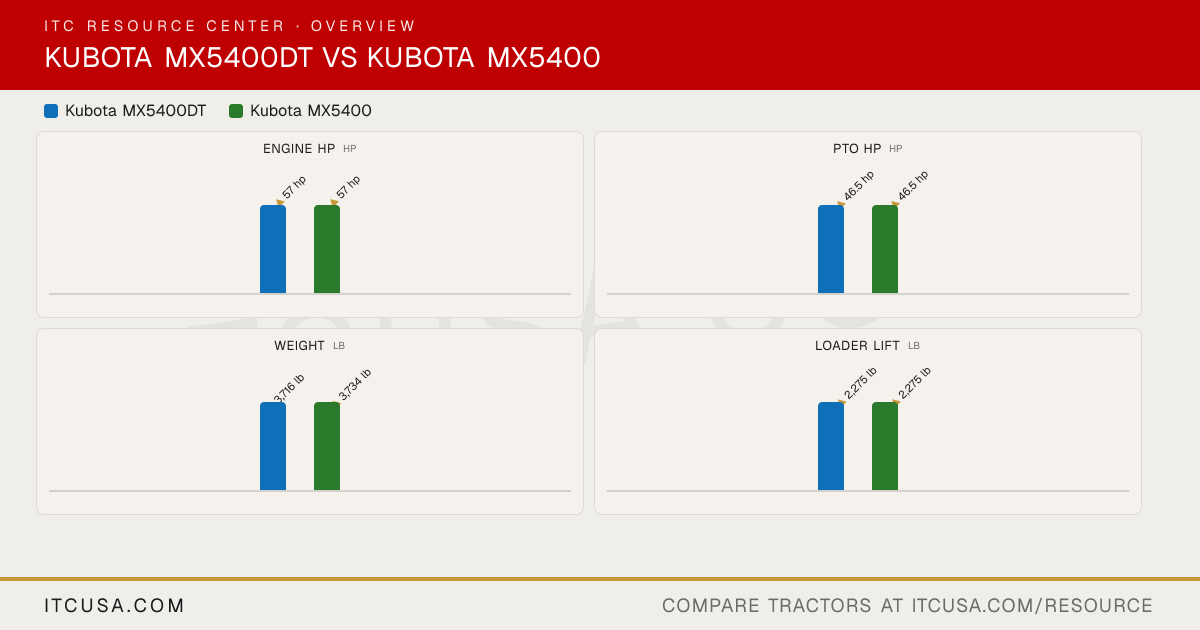

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaMX5400DT
KubotaMX5400
Engine Manufacturer
Kubota
Kubota
Engine Model
V2403CR-T
V2403CR-T
Engine Type
Liquid-cooled, diesel, 4-cylinder, Turbocharged
Liquid-cooled, diesel, 4-cylinder, Turbocharged
No. of Cylinders
4
4
Displacement
148.6 in³
148.6 in³
Rated Engine Speed
2700 rpm
2700 rpm
Engine Power (Gross)
57 hp
57 hp
PTO Power
46.5 hp
46.5 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dry-dual element
Dry-dual element
Fuel System
Common Rail System (CRS), direct injection
Common Rail System (CRS), direct injection
Alternator
45 A, 12 V
45 A, 12 V
Pump Type
Gear
Gear
Implement Flow
9.5 gpm
9.5 gpm
Steering Flow
4.9 gpm
4.9 gpm
Total Hydraulic Flow
14.4 gpm (9.5 + 4.9, computed)
14.4 gpm (9.5 + 4.9, computed)
Overall Hydraulic Pump Flow
14.4 gpm (9.5 + 4.9, computed)
14.4 gpm (9.5 + 4.9, computed)
Hydraulic System Type
Open Center
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Maximum 3 (opt)
Maximum 3 (opt)
Fuel Tank Capacity
13.5 gal
13.5 gal
Coolant Capacity
6.9 qt
6.9 qt
Crankcase Capacity
7.4 qt
7.4 qt
Transmission / Hydraulic System Capacity
11.6 gal
11.6 gal
Front Axle Fluid Capacity
8.9 qt
8.9 qt
PTO Type
Live independent, hydraulic PTO with PTO brake, wet clutch
Live independent, hydraulic PTO with PTO brake, wet clutch
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
I & II
I & II
Hitch Lift Capacity
2870 lb
2870 lb
Hitch Lift Capacity (at 24”)
2310 lb
2310 lb
Lift Control Type
Position (std), Draft (opt)
Position (std), Draft (opt)
Transmission Type
8-speed gear-drive (synchronized shuttle)
3-range hydrostatic (HST)
No. of Speeds
8F/8R
3-range
Max Travel Speed (Forward)
17.3 mph
17.7 mph
Max Travel Speed (Reverse)
15.9 mph
16.0 mph
Clutch
Dry single plate
No clutch
Differential Lock & Limited Slip Options
Rear differential lock standard (mechanical)
Rear differential lock standard (mechanical)
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Mechanical wet disc
Mechanical wet disc
Seat Suspension & Adjustability
High-back suspension seat (optional arm rests)
High-back suspension seat (optional arm rests)
Front Axle Type
Bevel gear type (4WD)
Bevel gear type (4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1650 lb
1650 lb
Overall Length with 3-Point Hitch
125.9 in (without 3-point hitch)
125.9 in (without 3-point hitch)
Overall Width
69.7 in
69.7 in
Wheelbase
74.6 in
74.6 in
Ground Clearance
15.2 in
15.2 in
Min. Turn Radius without Brakes
8.9 ft (with brake applied)
8.9 ft (with brake applied)
Height to Top of ROPS
95.7 in
95.7 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
92.7 in
Tractor Weight (Base)
3,716 lb
3,734 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
9.5-16 / 14.9-26
9.5-16 / 14.9-26
R1 Agricultural - Front
9.5-16
9.5-16
R1 Agricultural - Rear
14.9-26
14.9-26
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
Not Published
R4 Industrial - Rear
Not Published
Not Published
Quick Attach Loader System
1065A: 2-Lever Quick Coupler for Loader Attachment
1065A: 2-Lever Quick Coupler for Loader Attachment
Loader Model
LA1065
LA1065
Loader Lift Height
111.2 in
111.2 in
Loader Lift Capacity (Full Height)
2275 lb
2275 lb
Loader Breakout Force
3102 lbf (19.7 in forward of pivot pin)
3102 lbf (19.7 in forward of pivot pin)
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 72 months or 3000 hours. Commercial Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 72 months or 3000 hours. Commercial Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours.
