Compare Tractors

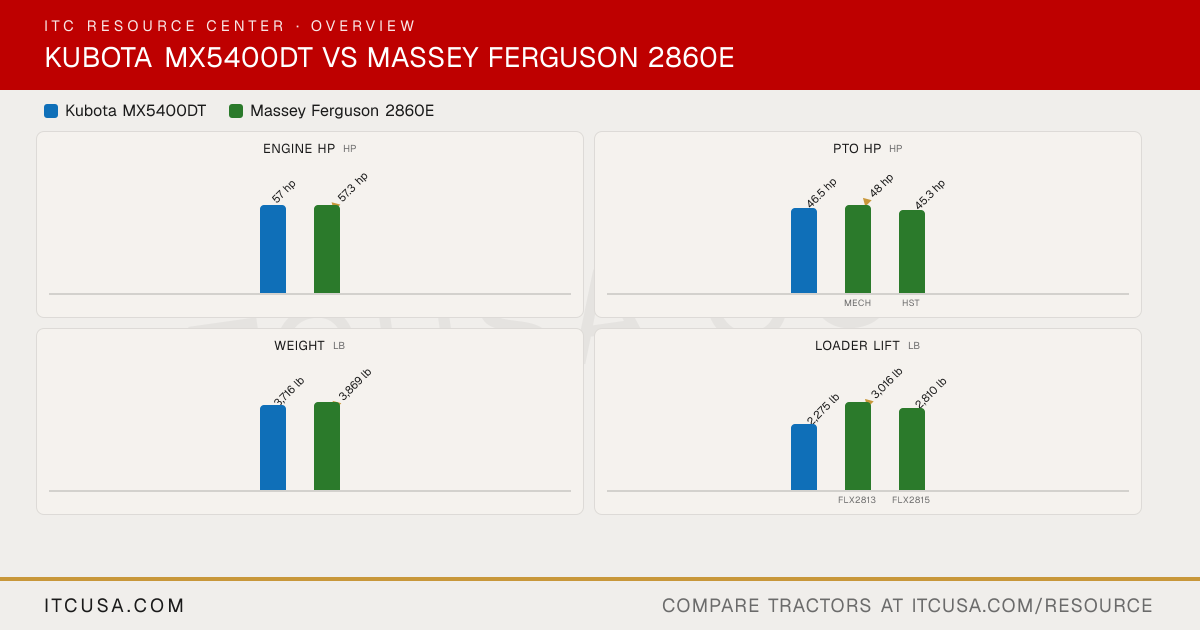

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaMX5400DT
Massey Ferguson2860E
Engine Manufacturer
Kubota
Iseki
Engine Model
V2403CR-T
Not Published
Engine Type
Liquid-cooled, diesel, 4-cylinder, Turbocharged
4-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders
4
4
Displacement
148.6 in³
148.6 in³
Rated Engine Speed
2700 rpm
2600 rpm
Engine Power (Gross)
57 hp
57.3 hp
PTO Power
46.5 hp
Mech: 48 hp; HST: 45.3 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid-cooled
Liquid cooled
Air Cleaner
Dry-dual element
Not Published
Fuel System
Common Rail System (CRS), direct injection
Not Published
Alternator
45 A, 12 V
Not Published
Pump Type
Gear
Two gear-type pumps for steering and 3-point/remotes
Implement Flow
9.5 gpm
12.6 gpm
Steering Flow
4.9 gpm
7.0 gpm
Total Hydraulic Flow
14.4 gpm (9.5 + 4.9, computed)
19.6 gpm (12.6 + 7.0, computed)
Overall Hydraulic Pump Flow
14.4 gpm (9.5 + 4.9, computed)
19.6 gpm (12.6 + 7.0, computed)
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Maximum 3 (opt)
Not Published
Fuel Tank Capacity
13.5 gal
14 gal
Coolant Capacity
6.9 qt
Not Published
Crankcase Capacity
7.4 qt
Not Published
Transmission / Hydraulic System Capacity
11.6 gal
Not Published
Front Axle Fluid Capacity
8.9 qt
Not Published
PTO Type
Live independent, hydraulic PTO with PTO brake, wet clutch
Independent with SoftStart electronic modulation
PTO Rear
540 rpm
540 rpm (1-3/8 in)
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
I & II
Category I and II
Hitch Lift Capacity
2870 lb
2,645 lb
Hitch Lift Capacity (at 24”)
2310 lb
2,425 lb
Lift Control Type
Position (std), Draft (opt)
Not Published
Transmission Type
8-speed gear-drive (synchronized shuttle)
8x8 synchro shuttle or 3-range hydrostatic
No. of Speeds
8F/8R
Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)
17.3 mph
Not Published
Max Travel Speed (Reverse)
15.9 mph
Not Published
Clutch
Dry single plate
Not Published
Differential Lock & Limited Slip Options
Rear differential lock standard (mechanical)
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Power steering
Brakes
Mechanical wet disc
Wet disc
Seat Suspension & Adjustability
High-back suspension seat (optional arm rests)
Spring-cushioned seat
Front Axle Type
Bevel gear type (4WD)
Solid cast front axle
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1650 lb
Not Published
Overall Length with 3-Point Hitch
125.9 in (without 3-point hitch)
132.8 in
Overall Width
69.7 in
70.1 in
Wheelbase
74.6 in
Not Published
Ground Clearance
15.2 in
15 in
Min. Turn Radius without Brakes
8.9 ft (with brake applied)
Not Published
Height to Top of ROPS
95.7 in
103.8 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
3,716 lb
3,869 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
9.5-16 / 14.9-26
Not Published
R1 Agricultural - Front
9.5-16
Not Published
R1 Agricultural - Rear
14.9-26
Not Published
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
Not Published
R4 Industrial - Rear
Not Published
Not Published
Quick Attach Loader System
1065A: 2-Lever Quick Coupler for Loader Attachment
FLx2813: skid steer quick attach; FLx2815: pin-type or skid steer
Loader Model
LA1065
FLx2813; FLx2815
Loader Lift Height
111.2 in
111 in (FLx2813 and FLx2815 loaders)
Loader Lift Capacity (Full Height)
2275 lb
FLx2813: 3,016 lb; FLx2815: 2,810 lb
Loader Breakout Force
3102 lbf (19.7 in forward of pivot pin)
FLx2813: 4,176 lb; FLx2815: 4,240 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 72 months or 3000 hours. Commercial Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours.
