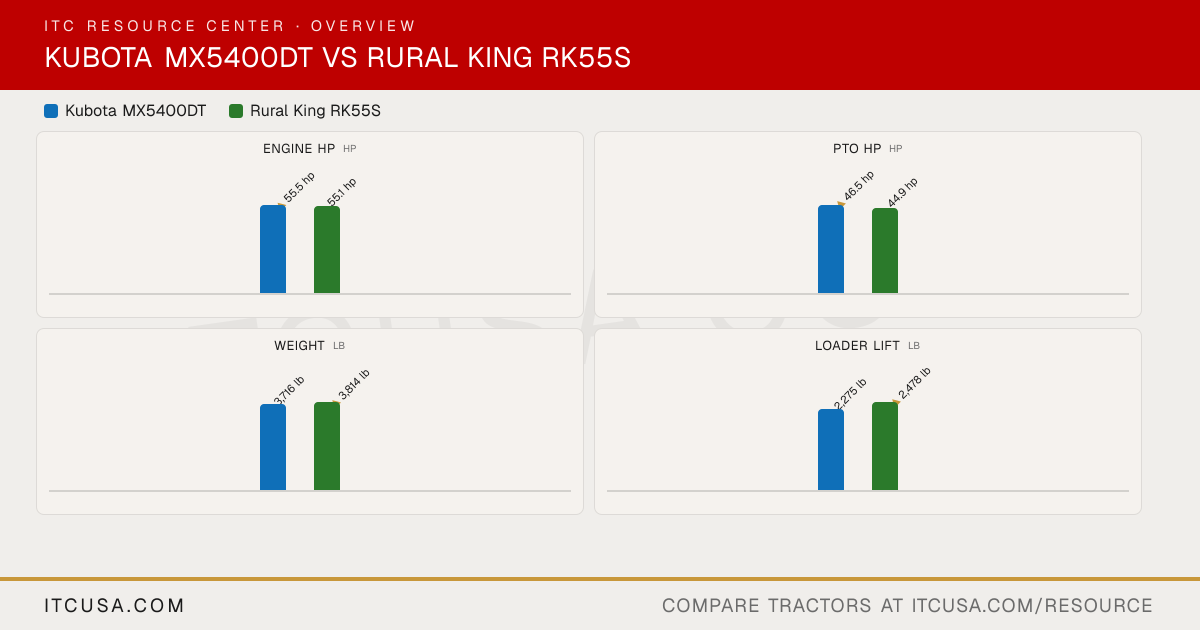

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model V2403CR-T 4TNV86T-CR Engine Type Liquid-cooled, diesel, 4-cylinder, Turbocharged 4-cycle, inline, water-cooled, turbocharged diesel No. of Cylinders 4 4 Displacement 148.6 in³ 127.6 in³ Rated Engine Speed 2700 rpm 2800 rpm Engine Power (Gross) 55.5 hp 55.1 hp PTO Power 46.5 hp 44.9 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Water-cooled, forced circulation with fan Air Cleaner Dry-dual element Dry dual element Fuel System Common Rail System (CRS), direct injection Common Rail Direct Injection Alternator 45 A, 12 V 70 A, 12 V ▶ HydraulicsPump Type Gear Not Published Implement Flow 9.5 gpm 9.5 gpm Steering Flow 4.9 gpm 5.0 gpm Total Hydraulic Flow 14.4 gpm (9.5 + 4.9, computed) 14.5 gpm Overall Hydraulic Pump Flow 14.4 gpm (9.5 + 4.9, computed) 14.5 gpm Hydraulic System Type Open Center Independent, fully live hydraulic pump with separate reservoir; position control with isolating and response control Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 2 No. of Optional Remote Valves Maximum 3 (opt) Not Published ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 17 gal Coolant Capacity 6.9 qt 2.5 gal Crankcase Capacity 7.4 qt 1.4 gal Transmission / Hydraulic System Capacity 11.6 gal 9.24 gal Front Axle Fluid Capacity 8.9 qt 2.64 gal ▶ PTO & HitchPTO Type Live independent, hydraulic PTO with PTO brake, wet clutch Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published No mid-PTO offered Category, 3-Point Hitch I & II Category I Hitch Lift Capacity 2,870 lb 3,314 lb Hitch Lift Capacity (at 24”) 2,310 lb 2,945 lb Lift Control Type Position (std), Draft (opt) Position and draft control ▶ Transmission & DrivetrainTransmission Type 8-speed gear-drive (synchronized shuttle) 16F/16R Syncro Shuttle w/creeper No. of Speeds 8F/8R 16 forward, 16 reverse Max Travel Speed (Forward) 17.3 mph 18.4 mph Max Travel Speed (Reverse) 15.9 mph 16.1 mph Clutch Dry single plate Main: dry single disc, mechanical (10.24 in diameter); PTO: multiple wet disc Differential Lock & Limited Slip Options Rear differential lock standard (mechanical) 4WD (MFWD) standard; bevel-gear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Unit frame: engine, clutch housing, transmission and front axle support bolted into one rigid assembly Steering Hydrostatic power steering Hydrostatic power steering Brakes Mechanical wet disc Wet disc, mechanical, foot operated Seat Suspension & Adjustability High-back suspension seat (optional arm rests) Suspension seat with armrests and retractable seat belt, standard Front Axle Type Bevel gear type (4WD) Center-pivot, reverse Elliot type (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity 1,650 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 69.7 in 63.8 in Wheelbase 74.6 in 76.2 in Ground Clearance 15.2 in 13.8 in Min. Turn Radius without Brakes 8.9 ft (with brake applied) Not Published Height to Top of ROPS 95.7 in 102.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 125.9 in (without 3-point hitch) 141.3 in ▶ WeightTractor Weight (Base) 3,716 lb (with ROPS) 3,814 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 9.5-16 / 14.9-26 Titan (USA): R4 Industrial (Std), R1 Agricultural (Opt), R3 Turf (Opt), R14 (Opt) R1 Agricultural - Front 9.5-16 9.5x16 R1 Agricultural - Rear 14.9-26 14.9x24 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 12x16.5 R4 Industrial - Rear Not Published 16.9x24 ▶ Loader & AttachmentsQuick Attach Loader System 1065A: 2-Lever Quick Coupler for Loader Attachment L110: Skid-steer compatible quick-attach Loader Model LA1065 L110 Loader Lift Height 111.2 in (at pivot pin) L110: 110 in Loader Lift Capacity (Full Height) 2,275 lb (at pivot pin) L110: 2,478 lb at pivot pin to full height Loader Breakout Force 3,102 lbf L110: 4,938 lb at ground level, pivot pin ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 2,000 hours, powertrain 72 months or 3,000 hours; commercial: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours Basic 2 years; powertrain 8 years or 3,000 hours, no deductible, parts and labor ▶ ITC Company AccessoriesAccessories that fit
