Kubota MX5400F vs John Deere 5055E | Side-by-side comparison | ITC Resource Center
Compare Tractors

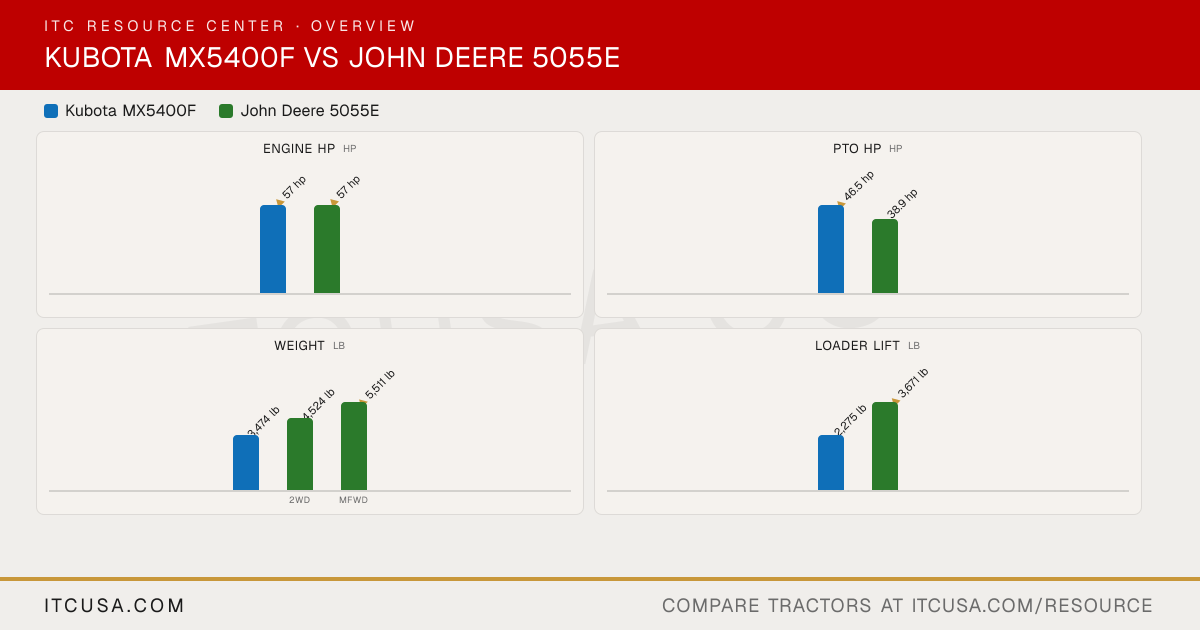

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Dry (SyncShuttle); Dry/Wet with 12F/12R PowrReverser
Differential Lock & Limited Slip Options
Rear differential lock standard (mechanical)
Rear diff lock, standard
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Power steering
Brakes
Mechanical wet disc
Hydraulic wet disc brakes
Seat Suspension & Adjustability
High-back suspension seat (optional arm rests)
Not Published
Front Axle Type
Not Published
2WD or MFWD
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1650 lb
Not Published
Overall Length with 3-Point Hitch
127.8 in (without 3-point hitch)
137.8 in
Overall Width
69.7 in
57.3 in
Wheelbase
74.6 in
80.7 in
Ground Clearance
15.2 in
2WD: 18.8 in; MFWD: 13.4 in
Min. Turn Radius without Brakes
8.5 ft (with brake applied)
138 in
Height to Top of ROPS
95.7 in
96.4 in
Height to Top of ROPS (folded)
Not Published
77.1 in
Height to Top of Cab Model
Not Published
94.3 in
Tractor Weight (Base)
3,474 lb
2WD: 4,524 lb; MFWD: 5,511 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
7,054 lb
Tire Size & Options
7.5L-15 / 14.9-26
Not Published
R1 Agricultural - Front
7.5L-15
2WD: 7.5-16; MFWD: 9.5-24
R1 Agricultural - Rear
14.9-26
14.9-28
R3 Turf - Front
Not Published
9.5-16
R3 Turf - Rear
Not Published
21.5L-16.1
R4 Industrial - Front
Not Published
12.5/80-18
R4 Industrial - Rear
Not Published
16.9-24
Quick Attach Loader System
1065A: 2-Lever Quick Coupler for Loader Attachment
H240 (NSL or MSL)
Loader Model
LA1065
H240NSL
Loader Lift Height
111.2 in
131 in
Loader Lift Capacity (Full Height)
2275 lb
3,671 lb
Loader Breakout Force
3102 lbf (19.7 in forward of pivot pin)
4,504 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 72 months or 3000 hours. Commercial Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours.
