Kubota MX5400F vs TYM T554C | Side-by-side comparison | ITC Resource Center
Compare Tractors

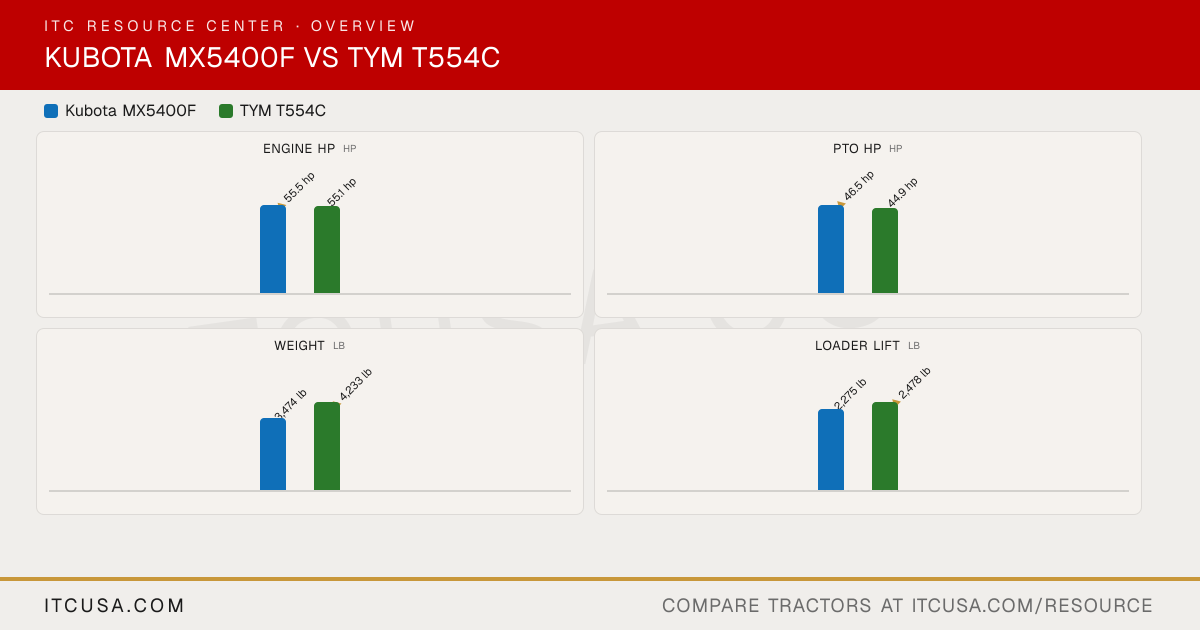

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaMX5400F
TYMT554C
Engine Manufacturer
Kubota
Yanmar
Engine Model
V2403CR-T
4TNV86CT
Engine Type
Liquid-cooled, diesel, 4-cylinder, Turbocharged
4-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders
4
4
Displacement
148.6 in³
127.6 in³
Rated Engine Speed
2700 rpm
2800 rpm
Engine Power (Gross)
55.5 hp
55.1 hp
PTO Power
46.5 hp
44.9 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dry-dual element
Dual dry
Fuel System
Common Rail System (CRS), direct injection
CRDI
Alternator
45 A, 12 V
70 A, 12 V
Pump Type
Gear
Dual gear pump
Implement Flow
9.5 gpm
9.5 gpm
Steering Flow
4.9 gpm
4.6 gpm
Total Hydraulic Flow
14.4 gpm (9.5 + 4.9, computed)
14.1 gpm
Overall Hydraulic Pump Flow
14.4 gpm (9.5 + 4.9, computed)
14.1 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
2
No. of Optional Remote Valves
Maximum 3 (opt)
Not Published
Fuel Tank Capacity
13.5 gal
15.9 gal
Coolant Capacity
6.9 qt
9 qt
Crankcase Capacity
7.4 qt
7.1 qt
Transmission / Hydraulic System Capacity
11.6 gal
9.2 gal
Front Axle Fluid Capacity
Not Published
10.5 qt
PTO Type
Live independent, hydraulic PTO with PTO brake, wet clutch
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
I & II
Category I
Hitch Lift Capacity
2,870 lb
3,314 lb
Hitch Lift Capacity (at 24”)
2,310 lb
2,945 lb
Lift Control Type
Position (std), Draft (opt)
Position/Draft
Transmission Type
8-speed gear-drive (synchronized shuttle)
Synchro-Shuttle
No. of Speeds
8F/8R
F16 x R16
Max Travel Speed (Forward)
17.3 mph
18.4 mph
Max Travel Speed (Reverse)
15.9 mph
Not Published
Clutch
Dry single plate
Dry single plate
Differential Lock & Limited Slip Options
Rear differential lock standard (mechanical)
Rear differential lock, pedal operated
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic
Brakes
Mechanical wet disc
Wet disc
Seat Suspension & Adjustability
High-back suspension seat (optional arm rests)
Not Published
Front Axle Type
Not Published
4WD, center-pivot reverse Elliot type
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1,650 lb
Not Published
Overall Width
69.7 in
63.8 in
Wheelbase
74.6 in
76.2 in
Ground Clearance
15.2 in
13.8 in
Min. Turn Radius without Brakes
8.5 ft (with brake applied)
150.4 in
Height to Top of ROPS
95.7 in
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
99.6 in
Overall Length
127.8 in (without 3-point hitch)
141.3 in (with 3-point hitch)
Tractor Weight (Base)
3,474 lb (with ROPS)
4,233 lb (with cab)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
7.5L-15 / 14.9-26
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
7.5L-15
Farm Specialist 9.5-16 NHS TL 6PR
R1 Agricultural - Rear
14.9-26
Farm Specialist 13.6-26 NHS TL 6PR
R3 Turf - Front
Not Published
Multi-Trac CS 27x10.50-15 NHS TL 4PR
R3 Turf - Rear
Not Published
Multi-Trac CS 44x18.00-20 NHS TL 4PR
R4 Industrial - Front
Not Published
Trac Chief 12-16.5 NHS TL 6PR
R4 Industrial - Rear
Not Published
Xtra Grip 17.5L-24 NHS TL 6PR
Quick Attach Loader System
1065A: 2-Lever Quick Coupler for Loader Attachment
TX55: Quick attach mechanism
Loader Model
LA1065
TX55
Loader Lift Height
111.2 in (at pivot pin)
TX55: 109.1 in
Loader Lift Capacity (Full Height)
2,275 lb (at pivot pin)
TX55: 2,478 lb (at pivot pin)
Loader Breakout Force
3,102 lbf
TX55: 4,938 lb (at pivot pin, ground level)
Warranty Length & Coverage
Residential: basic 24 months or 2,000 hours, powertrain 72 months or 3,000 hours; commercial: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders and backhoes 12 months
