Kubota MX6000HSTC vs New Holland Workmaster 65 | Side-by-side comparison | ITC Resource Center
Compare Tractors

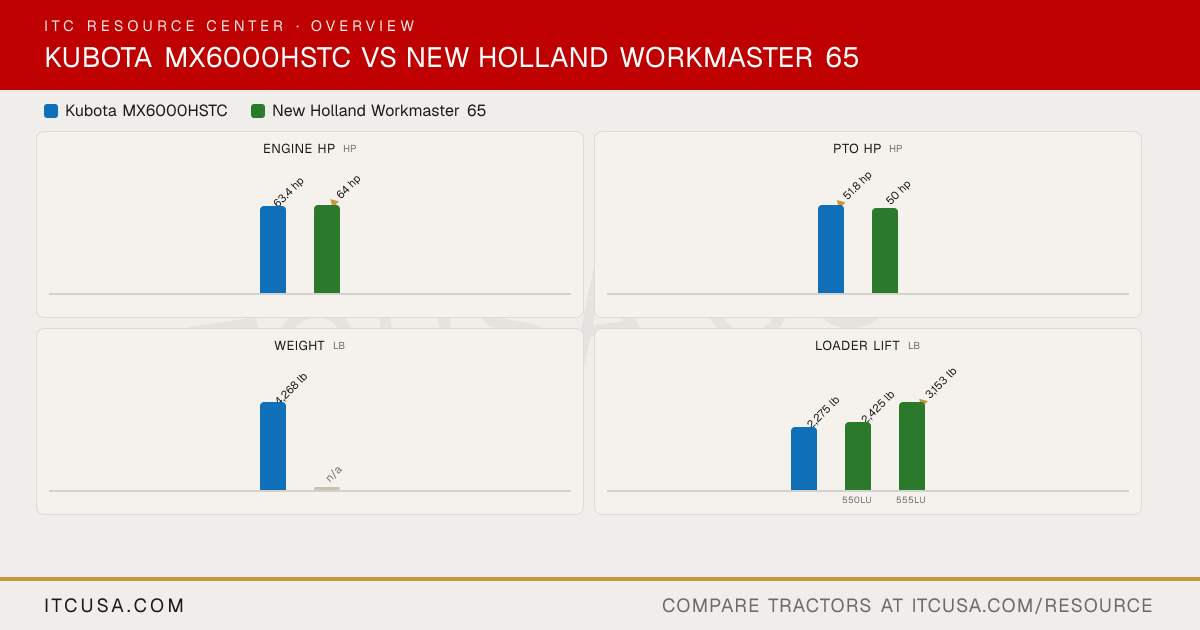

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaMX6000HSTC
New HollandWorkmaster 65
Engine Manufacturer
Kubota
FPT Industrial
Engine Model
V2403CR-T
n/a
Engine Type
Liquid-cooled, diesel, 4-cylinder, Turbocharged
Turbocharged 3-cylinder diesel
No. of Cylinders
4
3
Displacement
148.6 in³
179 in³
Rated Engine Speed
2700 rpm
2300 rpm
Engine Power (Gross)
63.4 hp
64 hp
PTO Power
51.8 hp
50 hp
Engine Emissions Constraints
Not Published
Tier 4B CEGR + DOC (no DPF; no regeneration)
Cooling System Type
Liquid-cooled
Not Published
Air Cleaner
Dry-dual element
Not Published
Fuel System
Common Rail System (CRS), direct injection
High-pressure common rail
Alternator
60 A, 12 V
Not Published
Pump Type
Gear
Dual pumps
Implement Flow
9.5 gpm
12.6 gpm
Steering Flow
4.9 gpm
7.6 gpm
Total Hydraulic Flow
14.4 gpm (9.5 + 4.9, computed)
20.2 gpm
Overall Hydraulic Pump Flow
14.4 gpm (9.5 + 4.9, computed)
20.2 gpm
Hydraulic System Type
Open Center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
2
No. of Optional Remote Valves
Maximum 3 (opt)
1
Fuel Tank Capacity
11.9 gal
Not Published
Coolant Capacity
6.9 qt
Not Published
Crankcase Capacity
7.4 qt
Not Published
Transmission / Hydraulic System Capacity
11.6 gal
Not Published
Front Axle Fluid Capacity
8.9 qt
Not Published
PTO Type
Live independent, hydraulic PTO with PTO brake, wet clutch
Hydraulic wet clutch
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
I & II
Not Published
Hitch Lift Capacity
2870 lb
Not Published
Hitch Lift Capacity (at 24”)
2310 lb
3,500 lb
Lift Control Type
Position (std), Draft (opt)
Lift-O-Matic
Transmission Type
Hydrostatic transmission
12x12 power shuttle
No. of Speeds
3-range
12F/12R
Max Travel Speed (Forward)
17.7 mph
25 mph
Max Travel Speed (Reverse)
16.0 mph
Not Published
Clutch
No clutch
Not Published
Differential Lock & Limited Slip Options
Rear differential lock standard (mechanical)
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Not Published
Brakes
Mechanical wet disc
Not Published
Seat Suspension & Adjustability
High-back suspension seat (optional arm rests)
Cloth air-suspension seat
Front Axle Type
Bevel gear type (4WD)
Not Published
Front Axle Rating
Not Published
6,500 lb dynamic capacity
Drawbar Capacity
1650 lb
Not Published
Overall Length with 3-Point Hitch
125.9 in (without 3-point hitch)
154.1 in
Overall Width
69.7 in
Not Published
Wheelbase
74.6 in
83.6 in
Ground Clearance
15.2 in
Not Published
Min. Turn Radius without Brakes
8.9 ft (with brake applied)
Not Published
Height to Top of ROPS
Not Published
Not Applicable
Height to Top of ROPS (folded)
Not Published
Not Applicable
Height to Top of Cab Model
92.7 in
100.2 in
Tractor Weight (Base)
4268 lb
n/a
Weight with ROPS and Loader
Not Published
Not Applicable
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Standard ag: 9.5-16 / 14.9-26
Not Published
R1 Agricultural - Front
9.5-16
Not Published
R1 Agricultural - Rear
14.9-26
Not Published
R3 Turf - Front
29x12.50-15
Not Published
R3 Turf - Rear
44x18-20
Not Published
R4 Industrial - Front
12-16.5
Not Published
R4 Industrial - Rear
17.5L-24
Not Published
Quick Attach Loader System
1065A: 2-Lever Quick Coupler for Loader Attachment
550LU, 555LU: 72 in bucket; SSL or Euro-style quick attach
Loader Model
LA1065
n/a
Loader Lift Height
111.2 in
550LU: 131.3 in; 555LU: 130.0 in
Loader Lift Capacity (Full Height)
2275 lb
550LU: 2,425 lb; 555LU: 3,153 lb
Loader Breakout Force
3102 lbf (19.7 in forward of pivot pin)
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 72 months or 3000 hours. Commercial Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours.
