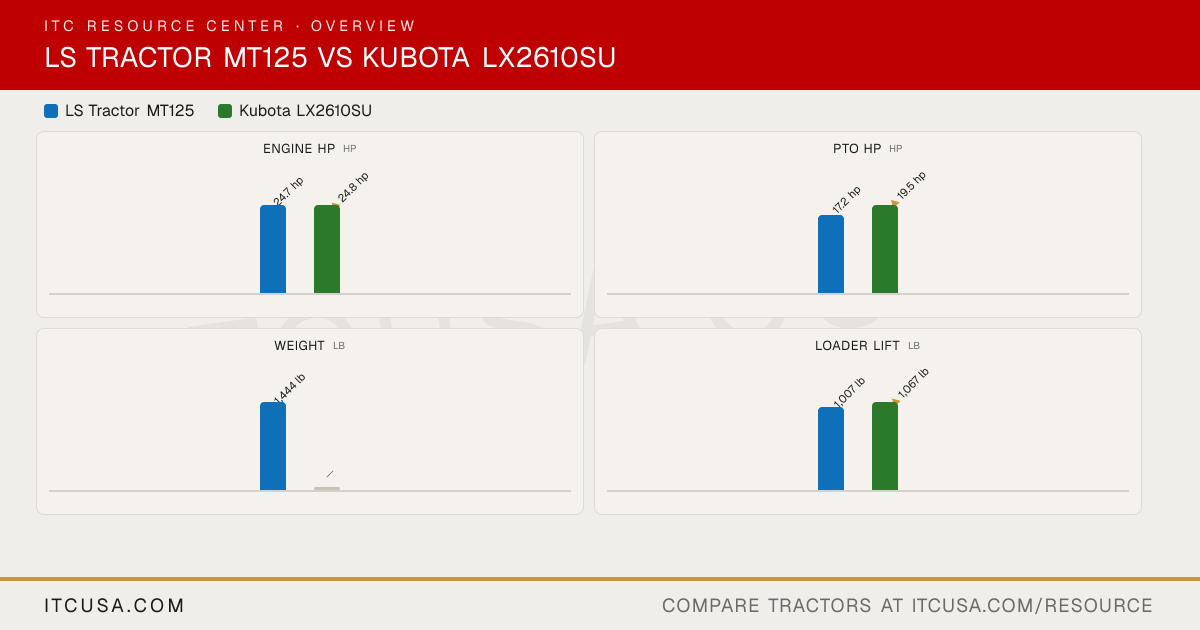

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
LS TractorMT125
KubotaLX2610SU
PTO Power
17.2 hp
19.5 hp
Alternator
40 A, 12 V
Not Published
Air Cleaner
Dry
4.5 inch Dual paper element
Engine Type
3-cylinder, Indirect-injection, Water-cooled
E-TVCS, liquid cooled, 3-cylinder, diesel
Fuel System
Indirect Injection
Not Published
Displacement
77.3 in³
77 in³
No. of Cylinders
3
3
Rated Engine Speed
3000 rpm
2500 rpm
Cooling System Type
Water-cooled
Pressurized radiator
Engine Manufacturer
Yanmar
Kubota
Engine Power (Gross)
24.7 hp
24.8 hp
Engine Emissions Constraints
Tier 4
Not Published
Tractor Weight (Base)
1,444 lbs
—
Weight with ROPS and Loader
1444 lb
Not Published
Weight with Cab and Loader
Not Published
Not Applicable
Warranty Length & Coverage
6-Year Limited Warranty
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Gear pump type, Transmission drive
Dual pump
Steering Flow
2.1 gpm
Not Published
Implement Flow
4.6 gpm
Not Published
Total Hydraulic Flow
6.7 gpm
8.7 gpm
Hydraulic System Type
Open center system, Position control
Open center
System Operating Pressure
12.7~13.2 MPa (1849~1920 psi)
—
Rear Remote Hydraulic Flow
NOT FOUND — No source explicitly lists a dedicated 'Rear Remote Hydraulic Flow' spec. The closest published figure is the implement pump flow of 4.6 gpm, but no source labels this specifically as 'Rear Remote' flow.
Not Published
Overall Hydraulic Pump Flow
6.7 gpm
8.7 gpm
No. of Optional Remote Valves
1 Set
Not Published
No. of Standard Remote Valves
0 (optional)
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position Control
Position control valve
Hitch Lift Capacity
970 lbs. (At 24 in: 728)
2139 lb
Mid-PTO Availability
Standard (2,500 rpm)
Not Applicable
Category, 3-Point Hitch
Category 1
Category I
Hitch Lift Capacity (at 24”)
728 lb
1676 lb
R3 Turf - Rear
26x12.0-12 4PR HSR82 (Turf)
Not Published
R3 Turf - Front
18x8.50-10 4PR HS482 (Turf)
Not Published
Tire Size & Options
Industrial Front/Rear 18×18.5 - 10/26 x 12.0 - 12; Versa Turf Front/Rear: 18×18.5 - 10/26 x 12.0 - 12
R1 Agricultural, R4 Industrial
R4 Industrial - Rear
26x12.0-12 4PR HS610 (Industrial)
12.4-16 / 15-19.5
R4 Industrial - Front
18x8.50-10 4PR HS610 (Industrial)
23X8.50-14 / 25X8.50-14
R1 Agricultural - Rear
26 x 12.0 - 12
12.4-16
R1 Agricultural - Front
18×18.5 - 10
7.0-12
Coolant Capacity
0.9 gal (0.9U.S.gals)
4.5 qt
Crankcase Capacity
0.8 gal (0.8U.S.gals)
4.2 qt
Fuel Tank Capacity
6.6 gal.
7.1 gal
Front Axle Fluid Capacity
0.5 gal (0.5U.S.gals)
Not Published
Transmission / Hydraulic System Capacity
3 gal (3.0U.S.gals)
4.0 gal
Loader Lift Height
72.0 in.
84 in
Loader Breakout Force
1,960 lbs.
2245 lb
Quick Attach Loader System
LL1101 Quick-Attach Front Loader
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
