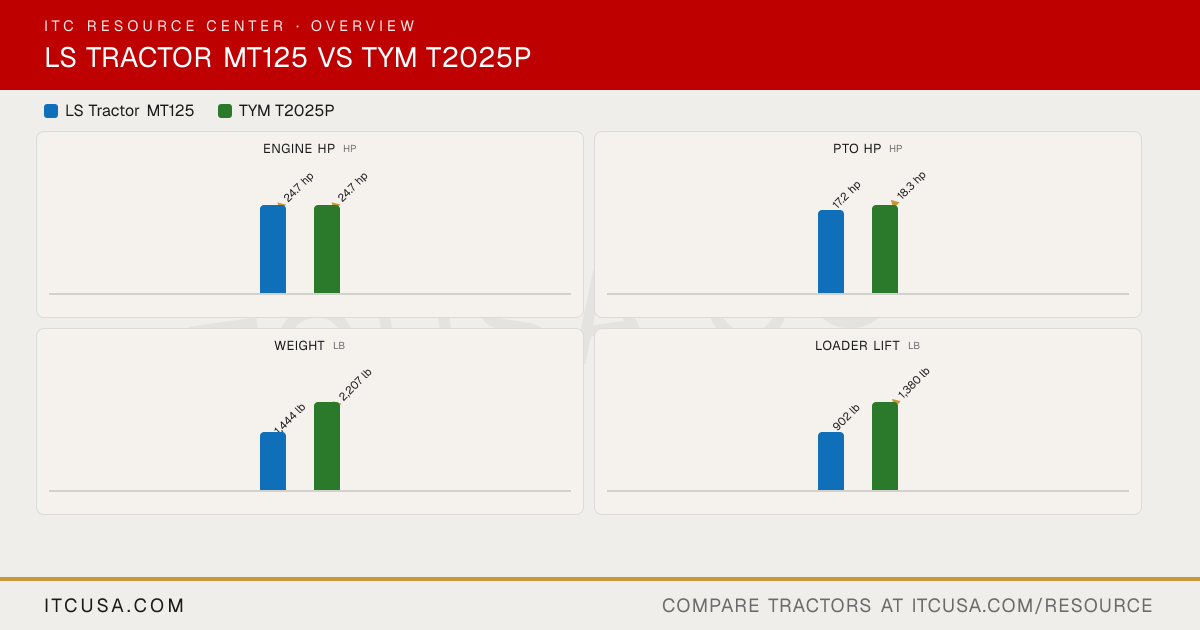

▶ EngineEngine Manufacturer Yanmar Yanmar Engine Model 3TNV80F 3TNV80F-NXDKTFX Engine Type 3-cylinder, indirect injection (swirl chamber), water-cooled 3-cylinder, naturally aspirated diesel No. of Cylinders 3 3 Displacement 77.3 in³ 77.3 in³ Rated Engine Speed 3000 rpm 3000 rpm Engine Power (Gross) 24.7 hp 24.7 hp PTO Power 17.2 hp 18.3 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Water-cooled Not Published Air Cleaner Dry Single dry Fuel System In-line injection pump IDI Alternator 40 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Gear pump, transmission driven Single gear pump Implement Flow 4.6 gpm 4.17 gpm Steering Flow 2.1 gpm 2.77 gpm Total Hydraulic Flow 6.7 gpm 6.94 gpm Overall Hydraulic Pump Flow 6.7 gpm 6.94 gpm Hydraulic System Type Open center system, position control Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None Not Published No. of Optional Remote Valves 1 set (2 quick couplers, optional) Not Published ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 8.4 gal Coolant Capacity 0.9 gal 0.95 gal Crankcase Capacity 0.8 gal Not Published Transmission / Hydraulic System Capacity 3.0 gal (3.4 gal with front-end loader; 4.7 gal with front-end loader and backhoe) 4.49 gal Front Axle Fluid Capacity 0.5 gal 1.18 gal ▶ PTO & HitchPTO Type Independent (electro-hydraulic) Independent PTO Rear Standard (540 rpm) 540 rpm Mid-PTO Availability Standard (2,500 rpm) Available (Mid-PTO kit) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 992 lb 1,550 lb Hitch Lift Capacity (at 24”) 728 lb 560 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic Drive HST No. of Speeds 2 ranges 2 Max Travel Speed (Forward) 8.70 mph 13.57 mph Max Travel Speed (Reverse) 5.22 mph Not Published Clutch N/A Not Published Differential Lock & Limited Slip Options Mechanical pedal type Differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydraulic Brakes Wet, multi-disc Wet disc Seat Suspension & Adjustability Adjustable forward and backward via seat lever; reversible seat optional Mechanical suspension seat Front Axle Type Front wheel mechanical assist (4WD) Four-wheel drive (standard) Front Axle Rating Not Published Not Published Drawbar Capacity Hitch: 882 lb vertical, 3,527 lb horizontal; drawbar with clevis: 772 lb vertical, 3,527 lb horizontal Not Published ▶ Dimensions & ManeuverabilityOverall Width 47 in 56.29 in Wheelbase 56 in 61.02 in Ground Clearance Not Published 10.23 in Min. Turn Radius without Brakes 7.87 ft 110.23 in Height to Top of ROPS 87 in 85.94 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 97 in (bumper to link) 105.11 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 1,444 lb 2,207 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Front 18x8.50-10, rear 26x12.0-12; offered in industrial or turf R3 Turf, R4 Industrial, Hybrid R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published Not Published R3 Turf - Front 18x8.50-10 23x8.5-12 R3 Turf - Rear 26x12.0-12 33x12.5-16.5 R4 Industrial - Front 18x8.50-10 23x8.5-14 R4 Industrial - Rear 26x12.0-12 14-17.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published L2025P: Quick attach mechanism Loader Model LL1102; LL1700; LL1001 L2025P Loader Lift Height LL1001: 72.6 in (at pivot pin) L2025P: 87.7 in Loader Lift Capacity (Full Height) LL1001: 902 lb (at pivot pin, maximum height) L2025P: 1,380 lb (at pivot pin) Loader Breakout Force LL1001: 1,836 lb (at pivot pin) L2025P: 2,059 lb (at pivot pin, ground level) ▶ WarrantyWarranty Length & Coverage 6-year limited warranty Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months
