Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

LSMT225S

—

KubotaLX2610SU

Comparison loaded for 2 tractors.

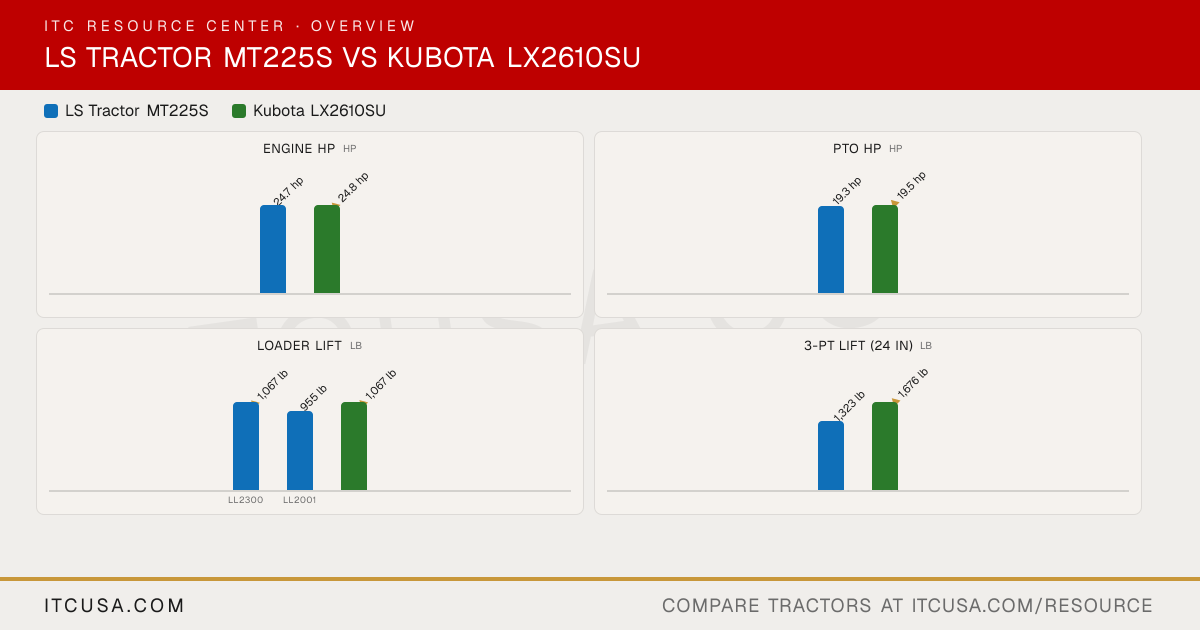

The headline numbers at a glance.

LS Tractor MT225SKubota LX2610SU

Engine HPhp

24.7 hp

▲24.8 hp

PTO HPhp

19.3 hp

▲19.5 hp

Weightlb

—

Loader Liftlb

▲1,067 lb

955 lb

▲1,067 lb

LL2300LL2001

3-Pt Lift (24 in)lb

1,323 lb

▲1,676 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT225S	KubotaLX2610SU


PTO Power	19.3 hp	19.5 hp
Alternator	50 A, 12 V	Not Published
Air Cleaner	Dry	4.5 inch Dual paper element
Engine Type	3-cylinder, Indirect Injection (IDI), Swirl chamber	E-TVCS, liquid cooled, 3-cylinder, diesel
Fuel System	In-line injection pump	Not Published
Displacement	77.3 in³	77 in³
No. of Cylinders	3	3
Rated Engine Speed	2800 rpm	2500 rpm
Cooling System Type	Not Published	Pressurized radiator
Engine Manufacturer	YANMAR	Kubota
Engine Power (Gross)	24.7 hp	24.8 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Engine-driven	Dual pump
Steering Flow	3.7 gpm	Not Published
Implement Flow	5.6 gpm	Not Published
Total Hydraulic Flow	9.3 gpm	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	9.3 gpm	8.7 gpm
No. of Optional Remote Valves	1 pair (optional)	Not Published
No. of Standard Remote Valves	Not Applicable	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control valve
Hitch Lift Capacity	1,896 lb	2139 lb
Mid-PTO Availability	Optional (2500 rpm)	Not Applicable
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1,323 lb	1676 lb

R3 Turf - Rear	31X15.50-15	Not Published
R3 Turf - Front	22X8.50-12	Not Published
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	12-16.5	12.4-16 / 15-19.5
R4 Industrial - Front	23X8.50-12	23X8.50-14 / 25X8.50-14
R1 Agricultural - Rear	11.2-16	12.4-16
R1 Agricultural - Front	7-12	7.0-12

Coolant Capacity	0.9 gal	4.5 qt
Crankcase Capacity	0.8 gal	4.2 qt
Fuel Tank Capacity	6.6 gal	7.1 gal
Front Axle Fluid Capacity	0.8 gal	Not Published
Transmission / Hydraulic System Capacity	4.5 gal	4.0 gal

Loader Lift Height	84.4 in	84 in
Loader Breakout Force	LL2300: 2,290 lb; LL2001: Not Published	2245 lb
Quick Attach Loader System	LL2300: Bobcat-type (skid-steer style) quick attach bucket carrier; LL2001: Not Published	Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Lift Capacity (Full Height)	LL2300: 1,067 lb; LL2001: 955 lb	1067 lb

Clutch	Not Applicable	N/A
No. of Speeds	3 ranges	3 ranges
Transmission Type	Hydrostatic Drive	Hydrostatic transmission
Max Travel Speed (Forward)	Not Published	11.2 mph
Max Travel Speed (Reverse)	Not Published	8.4 mph
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Differential lock standard

Brakes	Wet, multi-disc	Multi-plate wet disc
Steering	Hydrostatic power steering	Hydraulic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Standard seat

Wheelbase	63.4 in	65.6 in
Overall Width	48.7 in	53.7 in
Ground Clearance	Not Published	14.6 in
Height to Top of ROPS	86.4 in	88.4 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	111.9 in	Not Published

Permanent page for this matchup: LS Tractor MT225S vs Kubota LX2610SU
