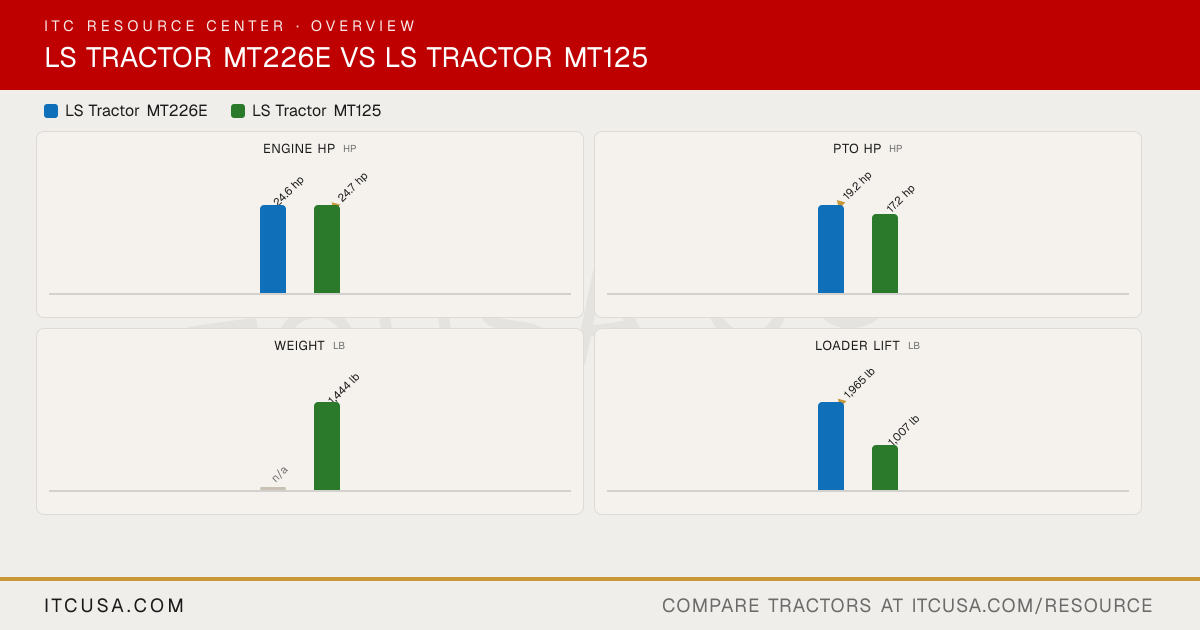

▶ EngineEngine Manufacturer MHI Yanmar Engine Model S3L2-W463GTAC 3TNV80F Engine Type 3-cylinder, liquid-cooled, diesel, naturally aspirated, IDI 3-cylinder, indirect injection (swirl chamber), water-cooled No. of Cylinders 3 3 Displacement 80.4 in³ 77.3 in³ Rated Engine Speed 2500 rpm 3000 rpm Engine Power (Gross) 24.6 hp 24.7 hp PTO Power 19.2 hp 17.2 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry Dry Fuel System IDI (indirect injection) In-line injection pump Alternator 50 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Gear pump Gear pump, transmission driven Implement Flow 7.9 gpm 4.6 gpm Steering Flow 4.6 gpm 2.1 gpm Total Hydraulic Flow 12.5 gpm 6.7 gpm Overall Hydraulic Pump Flow 12.5 gpm 6.7 gpm Hydraulic System Type Open center Open center system, position control Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 0 (1 pair optional) 0 No. of Optional Remote Valves 1 pair (optional) 1 pair (2 quick couplers) ▶ Fluid CapacityFuel Tank Capacity 10.6 gal 6.6 gal Coolant Capacity Not Published 0.9 gal Crankcase Capacity Not Published 0.8 gal Transmission / Hydraulic System Capacity Not Published 3.0 gal (3.4 gal with front-end loader; 4.7 gal with front-end loader and backhoe) Front Axle Fluid Capacity Not Published 0.5 gal ▶ PTO & HitchPTO Type Independent Independent (electro-hydraulic) PTO Rear Standard (540 rpm) Standard (540 rpm) Mid-PTO Availability Available (option) Standard (2,500 rpm) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,808 lb 970 lb Hitch Lift Capacity (at 24”) 1433 lb 728 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Synchro Shuttle Hydrostatic Drive No. of Speeds F12 x R12 2 ranges Max Travel Speed (Forward) Not Published 8.70 mph Max Travel Speed (Reverse) Not Published 5.22 mph Clutch Dry Single Not Published Differential Lock & Limited Slip Options Mechanical differential lock (pedal) Mechanical pedal type ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet, multi-disc Wet, multi-disc Seat Suspension & Adjustability Not Published Forward/backward adjustable via seat F/R adjustment lever; reversible seat optional Front Axle Type Not Published Front wheel mechanical assist (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Hitch: 882 lb vertical, 3,527 lb horizontal; drawbar with clevis: 772 lb vertical, 3,527 lb horizontal ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 119 in 97 in Overall Width 66 in 47 in Wheelbase 66 in 56 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 11.5 ft (3.5 m) 7.87 ft Height to Top of ROPS 95 in 87 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2,985 lb 1,444 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 agricultural, R4 industrial, R3 turf and VT (versa turf); VT same size as R4 Front 18x8.50-10, rear 26x12.0-12; offered in industrial or turf R1 Agricultural - Front 7-14 Not Published R1 Agricultural - Rear 11.2-24 Not Published R3 Turf - Front 25x8.50-14 18x8.50-10 R3 Turf - Rear 41x14.00-20 26x12.0-12 R4 Industrial - Front 27x8.50-15 18x8.50-10 R4 Industrial - Rear 43x16.00-20 26x12.0-12 ▶ Loader & AttachmentsQuick Attach Loader System LL3001, LL3002: ISO 24410 Quick Attaching Coupler LL1101 Quick-Attach Front Loader Loader Model LL3002 LL1101; LL1100 Loader Lift Height LL3002: 94.3 in LL1101: 72.0 in; LL1100: 72.0 in (at pivot pin) Loader Lift Capacity (Full Height) LL3002: 1,599 lb LL1101: 966 lb; LL1100: 1,005 lb (at pivot pin, maximum height) Loader Breakout Force LL3002: 2,962 lb LL1101: 1,960 lb; LL1100: 2,083 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty 6-year limited warranty
