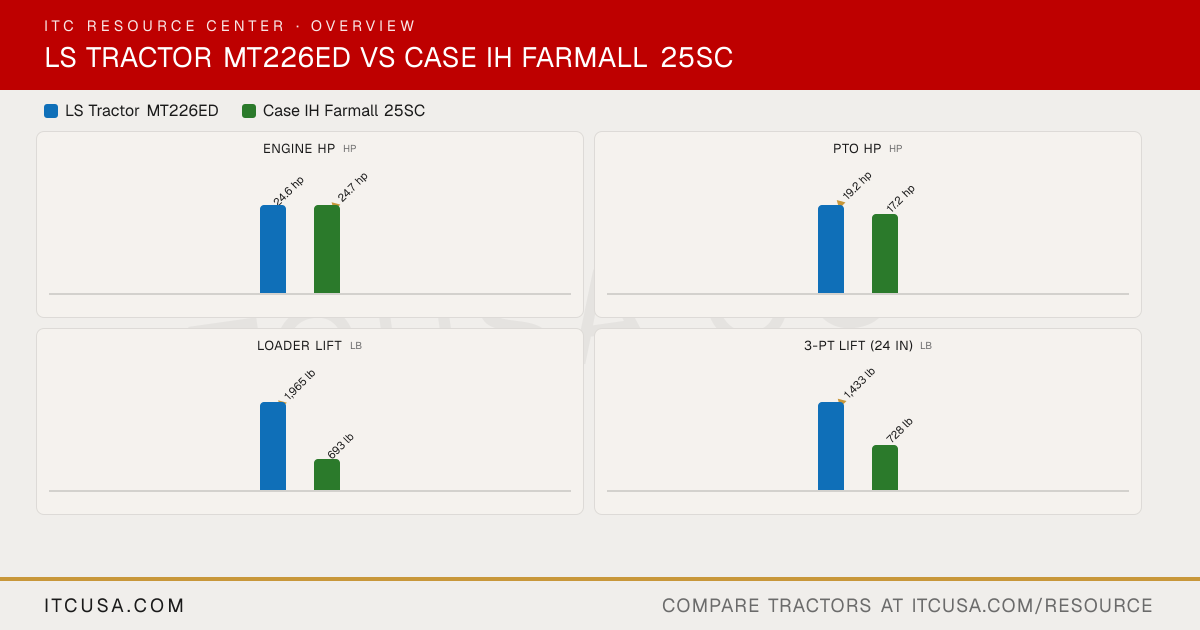

▶ EngineEngine Manufacturer MHI Yanmar Engine Model S3L2-W463GTAC Not Published Engine Type 3-cylinder, liquid-cooled, diesel, naturally aspirated, IDI 3-cylinder, indirect-injection, water-cooled diesel, Tier 4 B/Final No. of Cylinders 3 3 Displacement 80.4 in³ 77.3 in³ Rated Engine Speed 2500 rpm 3000 rpm Engine Power (Gross) 24.6 hp 24.7 hp PTO Power 19.2 hp 17.2 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry Not Published Fuel System IDI (indirect injection) Indirect injection Alternator 50 A, 12 V 50 A ▶ HydraulicsPump Type Gear pump Not Published Implement Flow 7.9 gpm 4.6 gpm Steering Flow 4.6 gpm 2.1 gpm Total Hydraulic Flow 12.5 gpm 6.7 gpm Overall Hydraulic Pump Flow 12.5 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 0 0 No. of Optional Remote Valves 1 1 ▶ Fluid CapacityFuel Tank Capacity 10.6 gal 6.6 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Transmission driven Independent, electro-hydraulic engagement PTO Rear Standard (540 rpm) 540 rpm Mid-PTO Availability Available (option) Standard, 2,500 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1433 lb 992 lb Hitch Lift Capacity (at 24”) 1433 lb 728 lb Lift Control Type Position control Not Published ▶ Transmission & DrivetrainTransmission Type Synchro Shuttle 2-range hydrostatic (wet clutch) No. of Speeds F12 x R12 Infinite, 2-range hydrostatic Max Travel Speed (Forward) Not Published 9.1 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Dry Single Wet clutch Differential Lock & Limited Slip Options Mechanical differential lock (pedal) Mechanical differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Wet, multi-disc Wet, multi-disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Front wheel mechanical assist (4WD) Mechanical Front Drive (MFD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 119 in 97 in Overall Width 66 in 46.7 in Wheelbase 66 in 56 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 11.5 ft (3.5 m) Not Published Height to Top of ROPS 95 in 87.4 in Height to Top of ROPS (folded) Not Published 62.4 in Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2,963 lb 1,444 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R3 turf or R4 industrial R1 Agricultural - Front 7-14 Not Published R1 Agricultural - Rear 11.2-24 Not Published R3 Turf - Front 25x8.50-14 18x8.5-10 R3 Turf - Rear 41x14.00-20 26x12-12 R4 Industrial - Front 27x8.50-15 18x8.5-10 R4 Industrial - Rear 43x16.00-20 26x12-12 ▶ Loader & AttachmentsQuick Attach Loader System LL3001, LL3002: ISO 24410 Quick Attaching Coupler L320S Loader Model LL3001 and LL3002 L320S Loader Lift Height LL3001 and LL3002: 94.3 in (at pivot pin) 72 in Loader Lift Capacity (Full Height) LL3001 and LL3002: 1,599 lb (at pivot pin, maximum height) 693 lb Loader Breakout Force LL3001 and LL3002: 2,962 lb (at pivot pin) 1426 lb ▶ WarrantyWarranty Length & Coverage 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty Not Published
