Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

LSMT232E

—

KubotaL3302

Comparison loaded for 2 tractors.

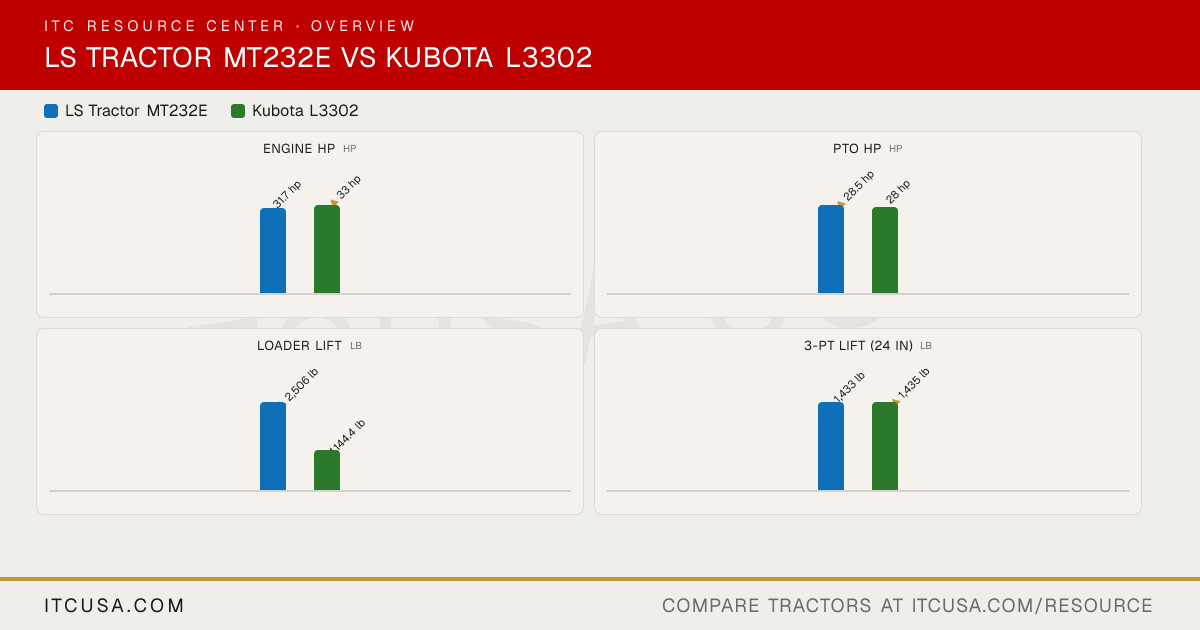

The headline numbers at a glance.

LS Tractor MT232EKubota L3302

Engine HPhp

31.7 hp

▲33 hp

PTO HPhp

▲28.5 hp

28 hp

Weightlb

—

Loader Liftlb

▲2,506 lb

1,144.4 lb

3-Pt Lift (24 in)lb

1,433 lb

▲1,435 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT232E	KubotaL3302


PTO Power	28.5 hp	28 hp
Alternator	55 A, 12 V	Not Published
Air Cleaner	Dry	Not Published
Engine Type	3-cylinder, Liquid-cooled, Diesel, NA, IDI	Direct injection, vertical, water-cooled 4-cycle, diesel
Fuel System	IDI	Direct injection
Displacement	100.2 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2700 rpm
Cooling System Type	Liquid-cooled	Water-cooled
Engine Manufacturer	YANMAR	Kubota
Engine Power (Gross)	31.7 hp	33 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Gear pump	Not Published
Steering Flow	5.0 gpm	3.8 gpm
Implement Flow	7.4 gpm	6.3 gpm
Total Hydraulic Flow	12.4 gpm	10.1 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.4 gpm	10.1 gpm
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	0	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live independent PTO with hydraulic clutch
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1808 lb	1998 lb
Mid-PTO Availability	Available (option)	Not Published
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity (at 24”)	1433 lb	1435 lb

R3 Turf - Rear	41X14.00-20	13.6-16
R3 Turf - Front	25X8.50-14	25X8.50-14
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	43X16.00-20	15-19.5
R4 Industrial - Front	27X8.50-15	27X8.50-15
R1 Agricultural - Rear	11.2-24	11.2-24
R1 Agricultural - Front	7-14	7.2-16

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	10.6 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	94.3 in	94.3 in
Loader Breakout Force	3,723 lb	Not Published
Quick Attach Loader System	LL3003: ISO 24410 Quick Attaching Coupler	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Lift Capacity (Full Height)	2,506 lb	1144.4 lb

Clutch	Dry Single	DT (4WD): Dry type single stage; HST (4WD): Not Applicable
No. of Speeds	F12 x R12	DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range
Transmission Type	Synchro Shuttle	DT (4WD): Gear shift with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)
Max Travel Speed (Forward)	Not Published	DT (4WD): 13.2 mph; HST (4WD): 14.1 mph
Max Travel Speed (Reverse)	Not Published	DT (4WD): 13.2 mph; HST (4WD): 12.7 mph
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Not Published

Brakes	Wet, Multi-disc	Mechanical, wet disc type
Steering	Hydrostatic power steering	Integral type power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	69 in	63.4 in
Overall Width	66 in	55.1 in
Ground Clearance	Not Published	13.4 in
Height to Top of ROPS	95 in	91.7 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	11.5 ft (3.5 m)	Not Published
Overall Length with 3-Point Hitch	125 in	108.5 in

Permanent page for this matchup: LS Tractor MT232E vs Kubota L3302
