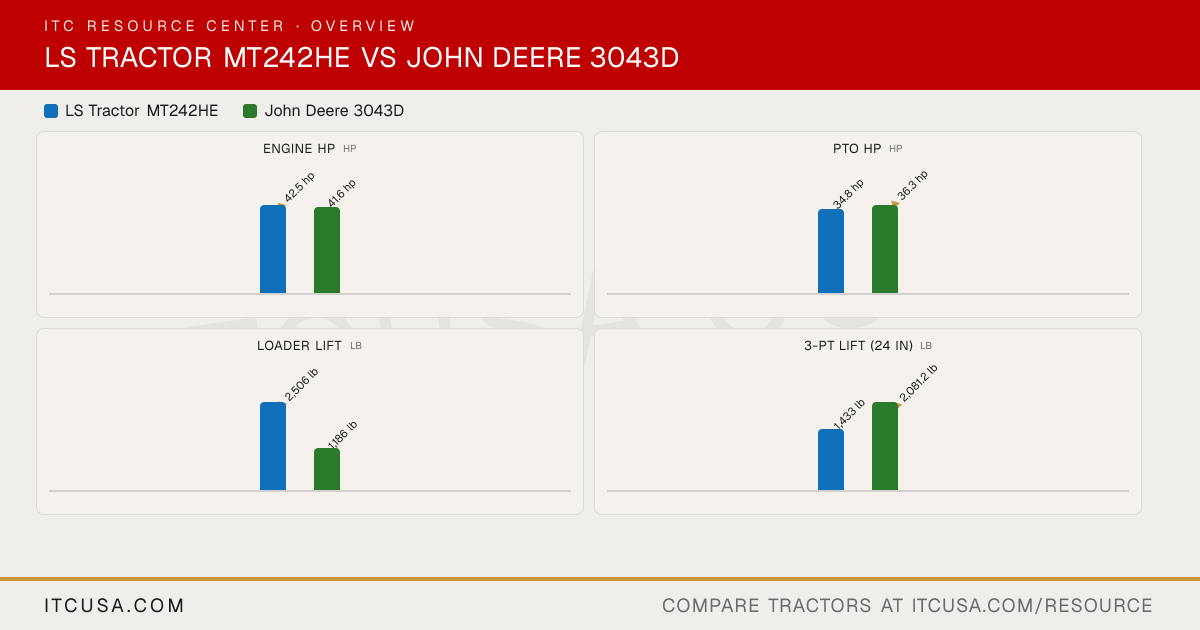

▶ EngineEngine Manufacturer YANMAR Yanmar Engine Model 4TNV88C-MLST 3TNV86CT-KJPT Engine Type 4-cylinder, liquid-cooled, diesel, naturally aspirated, CRDI 4-cycle, inline, water-cooled diesel, turbocharged No. of Cylinders 4 3 Displacement 133.6 in³ 95.8 in³ Rated Engine Speed 2600 rpm 2800 rpm Engine Power (Gross) 42.5 hp 41.6 hp PTO Power 34.8 hp 36.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid Air Cleaner Not Published Dry Fuel System CRDI (common rail direct injection) Direct injection Alternator 55 A, 12 V 55 A, 12 V ▶ HydraulicsPump Type Not Published Two single-section external gear pumps, one either side of the engine Implement Flow 6.7 gpm 5.9 gpm Steering Flow 5.0 gpm 4.4 gpm Total Hydraulic Flow 11.7 gpm 10.3 gpm Overall Hydraulic Pump Flow 11.7 gpm 10.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None None No. of Optional Remote Valves Remote valve 1st / 2nd (option) Loader mast mounted SCV (optional); 4th/5th SCV (optional) ▶ Fluid CapacityFuel Tank Capacity 10.6 gal 9.7 gal Coolant Capacity Not Published 1.3 gal Crankcase Capacity Not Published 1.1 gal Transmission / Hydraulic System Capacity Not Published 9.2 gal Front Axle Fluid Capacity Not Published 1.0 gal ▶ PTO & HitchPTO Type Independent Transmission driven PTO Rear Standard (540 rpm) 540 rpm at 2800 rpm engine (rated) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,808 lb Not Published Hitch Lift Capacity (at 24”) 1,433 lb 1,670 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type HST 8F/8R synchromesh shuttle shift gear transmission No. of Speeds 3 ranges 8F/8R Max Travel Speed (Forward) Not Published 12.9 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Single dry traction (mechanical) Differential Lock & Limited Slip Options Not Published Differential lock: Yes ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Wet, multi-disc Wet disk Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published 4WD Front Axle Rating Not Published 1,940 lb Drawbar Capacity Not Published 1,102 lb (maximum static vertical load) ▶ Dimensions & ManeuverabilityOverall Width 66 in 57.3 in Wheelbase 74 in 62 in Ground Clearance Not Published 14 in Min. Turn Radius without Brakes Not Published 6.9 ft (with brake applied) Height to Top of ROPS 95 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 125 in (frame to link) 111.2 in ▶ WeightTractor Weight (Base) 3,294 lb 2,800 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag, IND, VT and Turf; VT same size as IND R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 7-14 7-14 R1 Agricultural - Rear 11.2-24 11.2-24 R3 Turf - Front 25x8.50-14 27X8.50-15 R3 Turf - Rear 41x14.00-20 Not Published R4 Industrial - Front 27x8.50-15 25X8.50-14 R4 Industrial - Rear 43x16.00-20 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System LL3003 Quick-change attachment carrier Loader Model LL3003 D160 Loader Lift Height LL3003: 94.3 in 84 in (at pivot pin) Loader Lift Capacity (Full Height) LL3003: 2,063 lb (at bucket pivot pin, max height) 1,186 lb (at pivot point, maximum height) Loader Breakout Force LL3003: 3,723 lb (at pivot pin) 1,704 lbf (at pivot point) ▶ WarrantyWarranty Length & Coverage 6-year limited powertrain warranty Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
