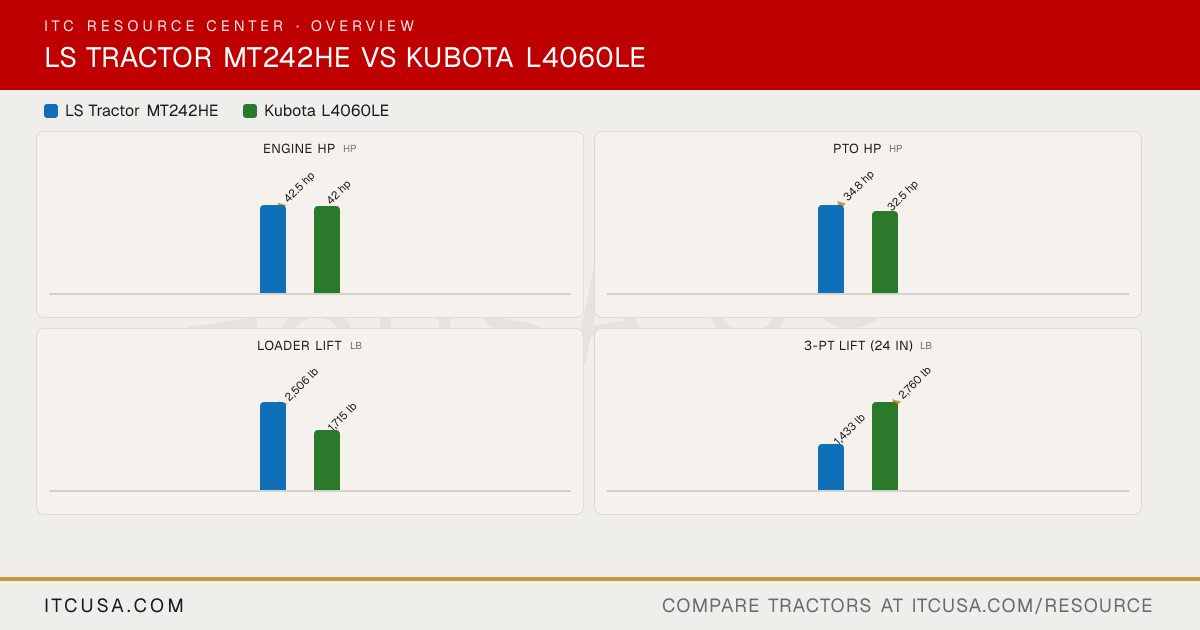

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Gear pump
Not Published
Steering Flow
5.0 gpm
4.7 gpm
Implement Flow
6.7 gpm
9.4 gpm
Total Hydraulic Flow
11.7 gpm
14.1 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
11.7 gpm
14.1 gpm
No. of Optional Remote Valves
1
Optional, up to 3
No. of Standard Remote Valves
0
Not Published
PTO Rear
540 rpm
1 speed: 540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position control
Position control
Hitch Lift Capacity
1808 lb
Not Published
Mid-PTO Availability
Available (option)
Optional
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity (at 24”)
1433 lb
2,760 lb
R3 Turf - Rear
41X14.00-20
Not Published
R3 Turf - Front
25X8.50-14
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
Agricultural, Turf or Industrial tires (options)
R4 Industrial - Rear
43X16.00-20
Not Published
R4 Industrial - Front
27X8.50-15
Not Published
R1 Agricultural - Rear
11.2-24
12.4-24
R1 Agricultural - Front
7-14
7.0-16
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Fuel Tank Capacity
10.6 gal
13.5 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Loader Lift Height
94.3 in
104.7 in
Loader Breakout Force
3,723 lb
2549 lb (11341 N)
Quick Attach Loader System
LL3003: ISO 24410 Quick Attaching Coupler
LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)
2,506 lb
1715 lb
Clutch
Not Applicable
N/A
No. of Speeds
3 ranges
3 ranges
Transmission Type
Hydrostatic Drive
Hydrostatic (HST Plus)
Max Travel Speed (Forward)
Not Published
16.8 mph
Max Travel Speed (Reverse)
Not Published
15.1 mph
Differential Lock & Limited Slip Options
Mechanical differential lock (pedal)
Not Published
Brakes
Wet, Multi-disc
Wet disc type
Steering
Hydrostatic power steering
Hydrostatic power steering
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Not Published
Not Published
Wheelbase
74 in
74.6 in
Overall Width
66 in
66.5 in
Ground Clearance
Not Published
14.2 in
Height to Top of ROPS
95 in
HST-LE (4WD, ROPS): 97.6 in; HSTC-LE (4WD, CAB): Not Applicable
Height to Top of Cab Model
Not Applicable
HST-LE (4WD, ROPS): Not Applicable; HSTC-LE (4WD, CAB): Not Published
Height to Top of ROPS (folded)
Not Published
HST-LE (4WD, ROPS): 91.1 in; HSTC-LE (4WD, CAB): Not Applicable
