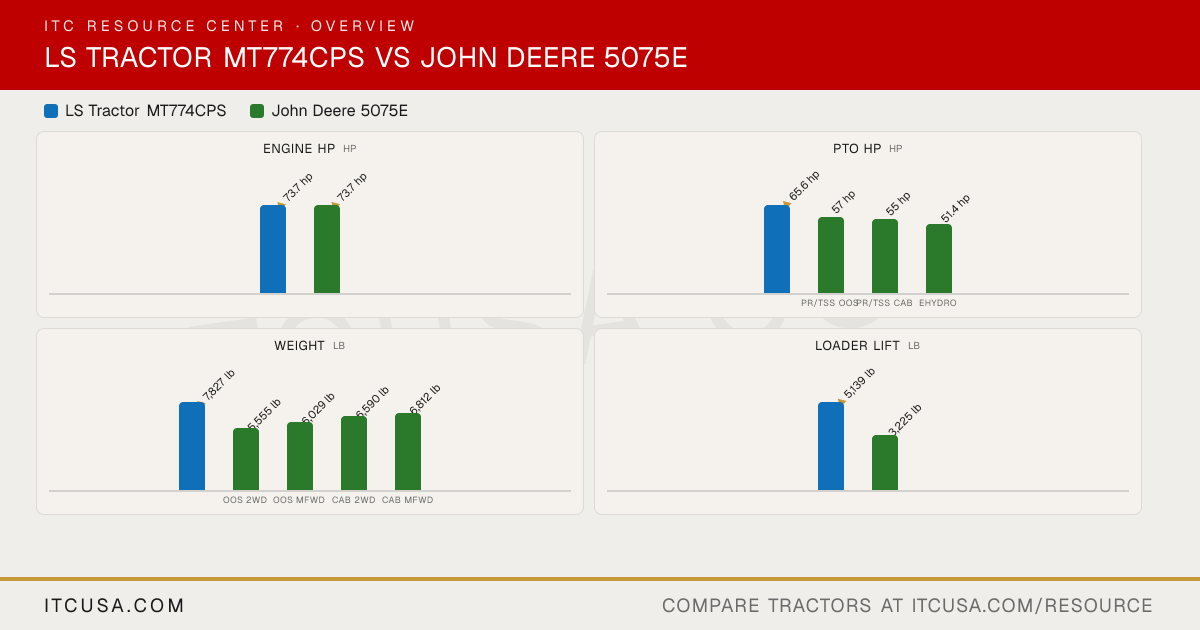

▶ EngineEngine Manufacturer FPT (Fiat Power Train) John Deere Engine Model F34 PowerTech 3029 (2.9L) EWR Engine Type 4-cylinder, CRDI, water-cooled Diesel, turbocharged No. of Cylinders 4 3 Displacement 206.7 in³ 179 in³ Rated Engine Speed 2200 rpm 2100 rpm Engine Power (Gross) 73.7 hp 73.7 hp PTO Power 65.6 hp PR/TSS OOS: 57 hp; PR/TSS Cab: 55 hp; eHydro: 51.4 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Liquid-cooled Air Cleaner Not Published Dry type with safety element Fuel System Not Published Electronically controlled, high-pressure common rail Alternator Not Published 110 A ▶ HydraulicsPump Type Gear pump type, engine drive PR/TSS: tandem gear pump (implement + steering); eHydro: three pumps Implement Flow 15.7 gpm 11.4 gpm Steering Flow 6.5 gpm 6.8 gpm Total Hydraulic Flow 22.2 gpm PR/TSS: 18.2 gpm; eHydro: 29.6 gpm Overall Hydraulic Pump Flow 22.2 gpm PR/TSS: 18.2 gpm; eHydro: 29.6 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published 11.4 gpm at a single rear SCV No. of Standard Remote Valves 3 Pairs (Front), 2 Pairs (Rear) 1 No. of Optional Remote Valves Not Published 2 ▶ Fluid CapacityFuel Tank Capacity 30.4 gal OOS: 19 gal; Cab: 21 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published 9.0 qt (with filter) Transmission / Hydraulic System Capacity 14.5 gal Not Published Front Axle Fluid Capacity Not Published DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 / 750 / 1,000 540 rpm (SyncShuttle); 540/540E rpm (PowrReverser) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II, convertible to I Hitch Lift Capacity 7,275 lb 3,968 lb @ hitch points Hitch Lift Capacity (at 24”) 5,181 lb 3,192 lb Lift Control Type Position & Draft Position control, draft control, adjustable rate of drop ▶ Transmission & DrivetrainTransmission Type Power Shuttle SyncShuttle (standard); PowrReverser or eHydro (optional) No. of Speeds 24 X 24 9F/3R (SyncShuttle); 12F/12R (PowrReverser) Max Travel Speed (Forward) 20.8 mph 15.5 mph (SyncShuttle) Max Travel Speed (Reverse) Not Published Not Published Clutch Wet disks SyncShuttle: dry; PowrReverser: wet; eHydro: hydrostatic Differential Lock & Limited Slip Options Electro-Hydraulic Differential lock (EHD) Mechanical, rear ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Hydrostatic power steering Brakes Wet, Multi-disc Hydraulically actuated wet disc brakes, self-equalizing and self-adjusting Seat Suspension & Adjustability Air suspension seat Not Published Front Axle Type Not Published 2WD or MFWD Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Adjustable drawbar ▶ Dimensions & ManeuverabilityOverall Width 78.7 in Not Published Wheelbase 90 in 80.7 in Ground Clearance Not Published 2WD: 18.8 in; MFWD: 13.4 in Min. Turn Radius without Brakes Not Published 11.5 ft (2WD); 15.3 ft (MFWD) Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 105 in Not Published Overall Length 152.2 in (frame to link) 144.5 in ▶ WeightTractor Weight (Base) 7,827 lb OOS 2WD: 5,555 lb; OOS MFWD: 6,029 lb; Cab 2WD: 6,590 lb; Cab MFWD: 6,812 lb (shipping weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader 9,487 lb (7,827 + 1,660, computed; LL8100 loader without bucket) Not Published ▶ Tire OptionsTire Size & Options Ag 11.2-24 / 16.9-30; R14 320/85R24 / 460/85R30 Not Published R1 Agricultural - Front 11.2-24 MFWD: 11.2-24; 12.4-24 R1 Agricultural - Rear 16.9-30 16.9-28 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published 520M and H240 loaders (Loader Prep Package includes loader mounting frames and hood guard); not compatible with the 512 loader Loader Model LL8100 500E, 500M or 520M Loader Lift Height LL8100: 139.9 in 500M: 124 in Loader Lift Capacity (Full Height) LL8100: 5,139 lb (at pivot pin) 500M: 3,225 lb (at pivot, full height) Loader Breakout Force LL8100: 5,313 lb (at pivot pin) 500M: 4,354 lb (at pivot) ▶ WarrantyWarranty Length & Coverage Basic 2 years or 750 hours; powertrain 5 years or 1,500 hours Not Published
