Compare Tractors

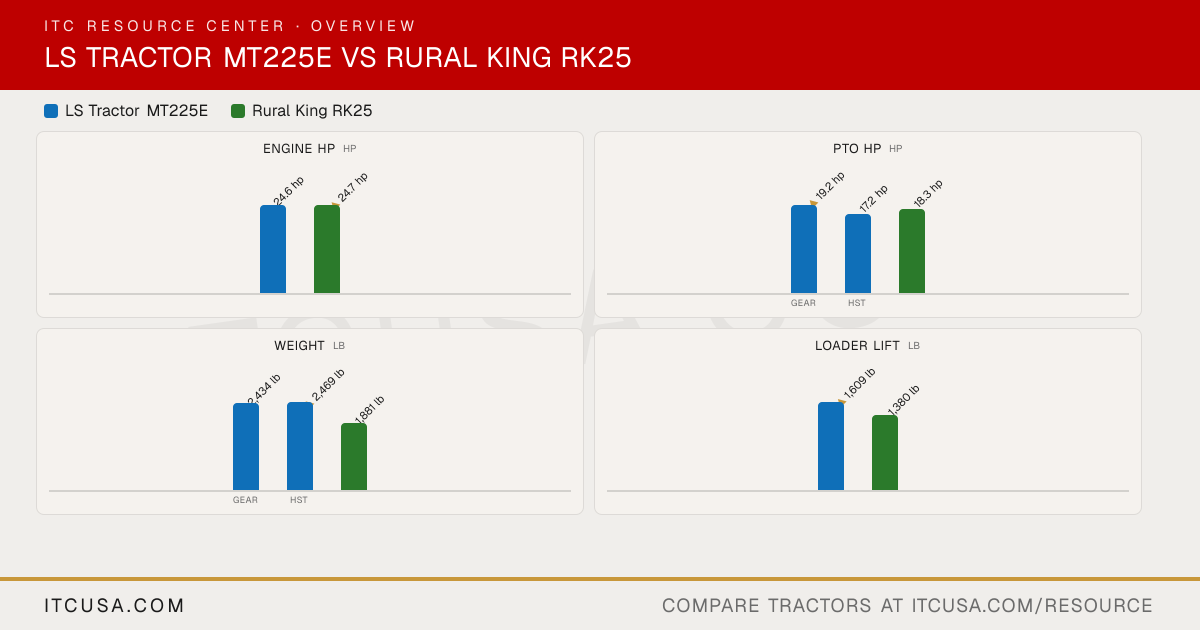

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
MT225E (gear): F12 x R12; MT225HE (HST): 3 ranges (HST)
2 Range
Max Travel Speed (Forward)
Not Published
13.7 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
MT225E (gear): dry single clutch; MT225HE (HST): n/a
Not Published
Differential Lock & Limited Slip Options
Mechanical differential lock (pedal)
4WD with mechanical rear differential lock
Frame Type
Not Published
Unit frame: engine, transmission and front axle support bolted together into a rigid assembly
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Wet, multi-disc
Wet disc
Seat Suspension & Adjustability
Not Published
Suspension seat with armrests & retractable seat belt
Front Axle Type
Not Published
4WD, center-pivot reverse Eliot type
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
54 in
52.8 in
Wheelbase
66 in
61 in
Ground Clearance
Not Published
7.71 in
Min. Turn Radius without Brakes
10.5 ft
109.5 in
Height to Top of ROPS
88 in
89.8 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Overall Length
118 in (frame to link)
107.8 in
Tractor Weight (Base)
MT225E (gear): 2,434 lb; MT225HE (HST): 2,469 lb
1,881 lb
Weight with ROPS and Loader
Not Published
2,560 lb (1,881 + 679, computed)
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Ag, industrial or turf tires at no additional cost
R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front
7-14
7x12-6
R1 Agricultural - Rear
11.2-24
11.2-16
R3 Turf - Front
25x8.5-14
23x8.5-12
R3 Turf - Rear
41x14-20
33x12.5-16.5
R4 Industrial - Front
25x8.5-14
23x8.5-12
R4 Industrial - Rear
43x16-20
12-16.5
Quick Attach Loader System
LL3300: quick attach loader with skid steer compatible bucket
L85: skid-steer compatible quick-attach
Loader Model
LL3300
L85
Loader Lift Height
LL3300: 91.1 in
L85: 87.2 in (maximum lift height to pivot pin)
Loader Lift Capacity (Full Height)
LL3300: 1,609 lb (at pivot pin)
L85: 1,380 lb (at pivot pin, to full height)
Loader Breakout Force
LL3300: 2,701 lb (at pivot pin)
L85: 2,059 lb (at ground level, pivot pin)
Warranty Length & Coverage
6-year limited warranty
Government and non-institutional: basic 24 months or 2,000 hours, powertrain 96 months or 3,000 hours; all other use: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours
