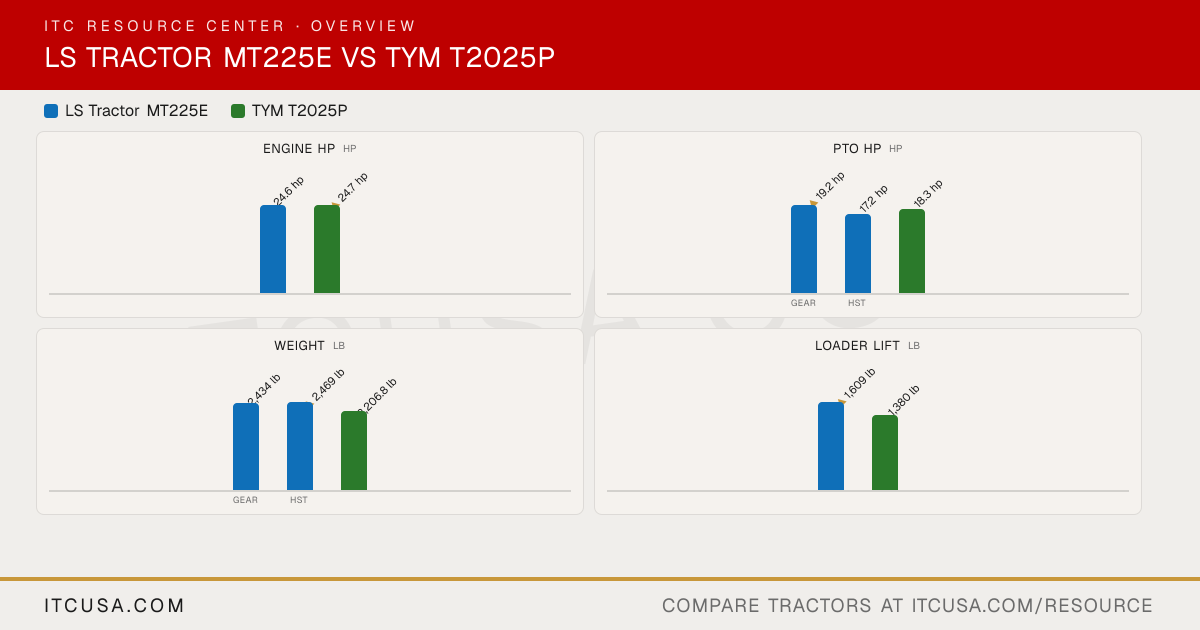

▶ EngineEngine Manufacturer Mitsubishi Yanmar Engine Model S3L2 3TNV80F-NXDKTFX Engine Type 3-cylinder, liquid-cooled, naturally aspirated IDI diesel 3-cylinder, naturally aspirated diesel No. of Cylinders 3 3 Displacement 80.4 in³ 77.3 in³ Rated Engine Speed 2500 rpm 3000 rpm Engine Power (Gross) 24.6 hp 24.7 hp PTO Power MT225E (gear): 19.2 hp; MT225HE (HST): 17.2 hp 18.3 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Not Published Air Cleaner Dry Single dry Fuel System Indirect injection (IDI) IDI Alternator 50 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Gear pump, engine driven Single gear pump Implement Flow 7.9 gpm 4.17 gpm Steering Flow 4.6 gpm 2.77 gpm Total Hydraulic Flow 12.5 gpm 6.94 gpm Overall Hydraulic Pump Flow 12.5 gpm 6.94 gpm Hydraulic System Type Not Published Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None standard Not Published No. of Optional Remote Valves 1 or 2 optional (double-acting, 2 or 4 quick couplers) Not Published ▶ Fluid CapacityFuel Tank Capacity 7.4 gal 8.4 gal Coolant Capacity 1.3 gal 0.95 gal Crankcase Capacity 1.1 gal Not Published Transmission / Hydraulic System Capacity 8.5 gal 4.49 gal Front Axle Fluid Capacity 1.7 gal 1.18 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional Available (Mid-PTO kit) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,808 lb 1,550 lb Hitch Lift Capacity (at 24”) 1,433 lb 560 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type MT225E (gear): Synchro shuttle; MT225HE (HST): HST HST No. of Speeds MT225E (gear): F12 x R12; MT225HE (HST): 3 ranges (HST) 2 Max Travel Speed (Forward) Not Published 13.57 mph Max Travel Speed (Reverse) Not Published Not Published Clutch MT225E (gear): dry single clutch; MT225HE (HST): n/a Not Published Differential Lock & Limited Slip Options Mechanical differential lock (pedal) Differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydraulic Brakes Wet, multi-disc Wet disc Seat Suspension & Adjustability Not Published Mechanical suspension seat Front Axle Type Not Published Four-wheel drive (standard) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 54 in 56.29 in Wheelbase 66 in 61.02 in Ground Clearance Not Published 10.23 in Min. Turn Radius without Brakes 10.5 ft 110.23 in Height to Top of ROPS 88 in 85.94 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 118 in (frame to link) 105.11 in (with 3-point hitch) ▶ WeightTractor Weight (Base) MT225E (gear): 2,434 lb; MT225HE (HST): 2,469 lb 2,207 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag, industrial or turf tires at no additional cost R3 Turf, R4 Industrial, Hybrid R1 Agricultural - Front 7-14 Not Published R1 Agricultural - Rear 11.2-24 Not Published R3 Turf - Front 25x8.5-14 23x8.5-12 R3 Turf - Rear 41x14-20 33x12.5-16.5 R4 Industrial - Front 25x8.5-14 23x8.5-14 R4 Industrial - Rear 43x16-20 14-17.5 ▶ Loader & AttachmentsQuick Attach Loader System LL3300: quick attach loader with skid steer compatible bucket L2025P: Quick attach mechanism Loader Model LL3300 L2025P Loader Lift Height LL3300: 91.1 in L2025P: 87.7 in Loader Lift Capacity (Full Height) LL3300: 1,609 lb (at pivot pin) L2025P: 1,380 lb (at pivot pin) Loader Breakout Force LL3300: 2,701 lb (at pivot pin) L2025P: 2,059 lb (at pivot pin, ground level) ▶ WarrantyWarranty Length & Coverage 6-year limited warranty Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months
