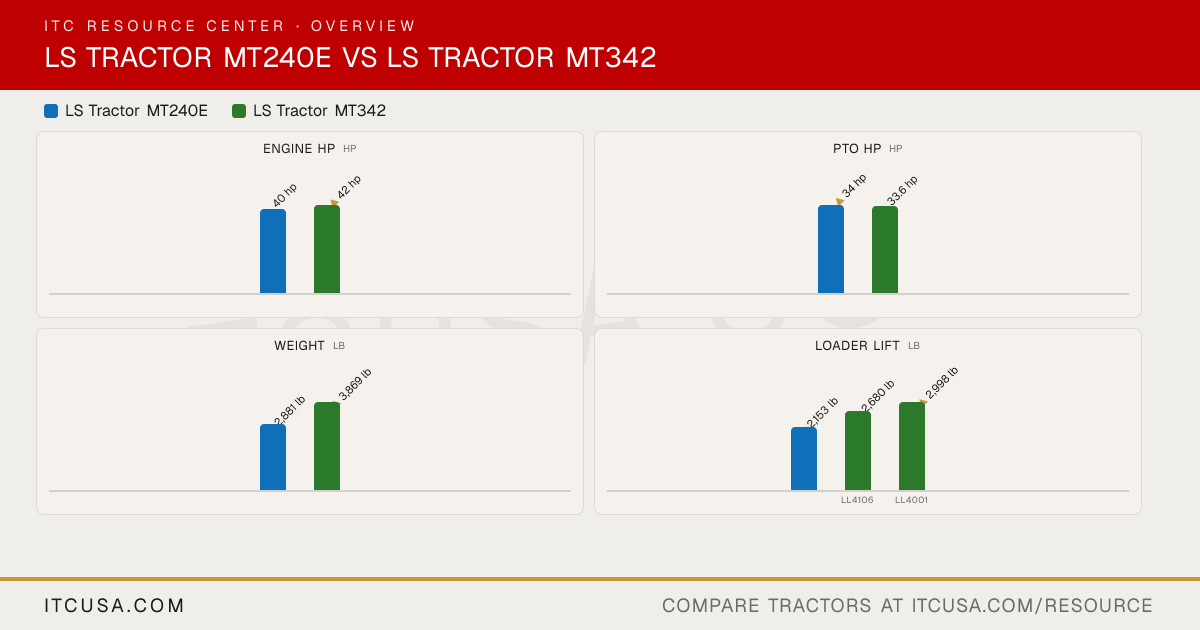

▶ EngineEngine Manufacturer LS LS Mtron Engine Model L3C19-T4 L3C19-T Engine Type 3-cylinder, liquid-cooled, diesel, turbocharged (TC), CRDI 3 Cylinder, Liquid-cooled, Diesel, TC, CRDI No. of Cylinders 3 3 Displacement 114.7 in³ 114.7 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 40 hp 42 hp PTO Power 34 hp 33.6 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry Dry Fuel System CRDI (Delphi common rail direct injection) Common rail direct injection (CRDI) Alternator 70 A, 12 V 70 A, 12 V ▶ HydraulicsPump Type Gear pump, engine driven Not Published Implement Flow 8.2 gpm 8.2 gpm Steering Flow 4.1 gpm 4.1 gpm Total Hydraulic Flow 12.3 gpm 12.3 gpm Overall Hydraulic Pump Flow 12.3 gpm 12.3 gpm Hydraulic System Type Open center system, position control Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None 2 Pair (1 Detent, 1 STD) No. of Optional Remote Valves 1 or 2 pairs (optional) Not Published ▶ Fluid CapacityFuel Tank Capacity 7.4 gal 10.6 gal Coolant Capacity 1.9 gal Not Published Crankcase Capacity 1.5 gal 1.6 gal Transmission / Hydraulic System Capacity 8.5 gal Not Published Front Axle Fluid Capacity 1.7 gal Not Published ▶ PTO & HitchPTO Type Independent (wet disc clutch) Independent PTO Rear Standard (540 rpm) 540 rpm Mid-PTO Availability Optional (2,000 rpm) Optional (2,000 rpm) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,808 lb 2,755 lb Hitch Lift Capacity (at 24”) 1,433 lb 2,469 lb Lift Control Type Position control Position & Draft ▶ Transmission & DrivetrainTransmission Type Synchro Shuttle Synchro shuttle No. of Speeds F12 x R12 F16 x R16 Max Travel Speed (Forward) 14.33 mph Not Published Max Travel Speed (Reverse) 13.63 mph Not Published Clutch Dry single clutch Not Published Differential Lock & Limited Slip Options Mechanical pedal type Mechanical rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Power Steering Brakes Wet, multi-disc Wet, Multi-disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Front wheel mechanical assist (4WD) Mechanical front-wheel drive (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 54 in 62.5 in Wheelbase 69 in 73.2 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 10.79 ft (left); 11.02 ft (right) Not Published Height to Top of ROPS 88 in 95 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Applicable Overall Length 121 in (frame to link) 133 in (frame to link) ▶ WeightTractor Weight (Base) 2,881 lb 3,869 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Applicable ▶ Tire OptionsTire Size & Options Ag, industrial or turf tires at no additional cost Agricultural, Turf, Industrial R1 Agricultural - Front 7-14 9.5-16 R1 Agricultural - Rear 11.2-24 13.6-24 R3 Turf - Front 25x8.50-14 28x8.5-15 R3 Turf - Rear 41x14-20 41x14-20 R4 Industrial - Front 27x8.50-14 12-16.5 R4 Industrial - Rear 43x16-20 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published LL4106, LL4001: 2-lever skid-steer coupler, fits universal skid-steer attachments Loader Model LL3302 LL4106; LL4001 Loader Lift Height LL3302: 94 in LL4106: 94.4 in; LL4001: 104.3 in Loader Lift Capacity (Full Height) LL3302: 2,153 lb (at pivot pin, full height) LL4106: 2,680 lb (at pivot pin); LL4001: 2,998 lb (at pivot pin) Loader Breakout Force LL3302: 3,579 lb (at pivot pin) LL4106: 4,063 lb (at pivot pin); LL4001: 4,295 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage 6-year limited warranty 6-year limited powertrain warranty
