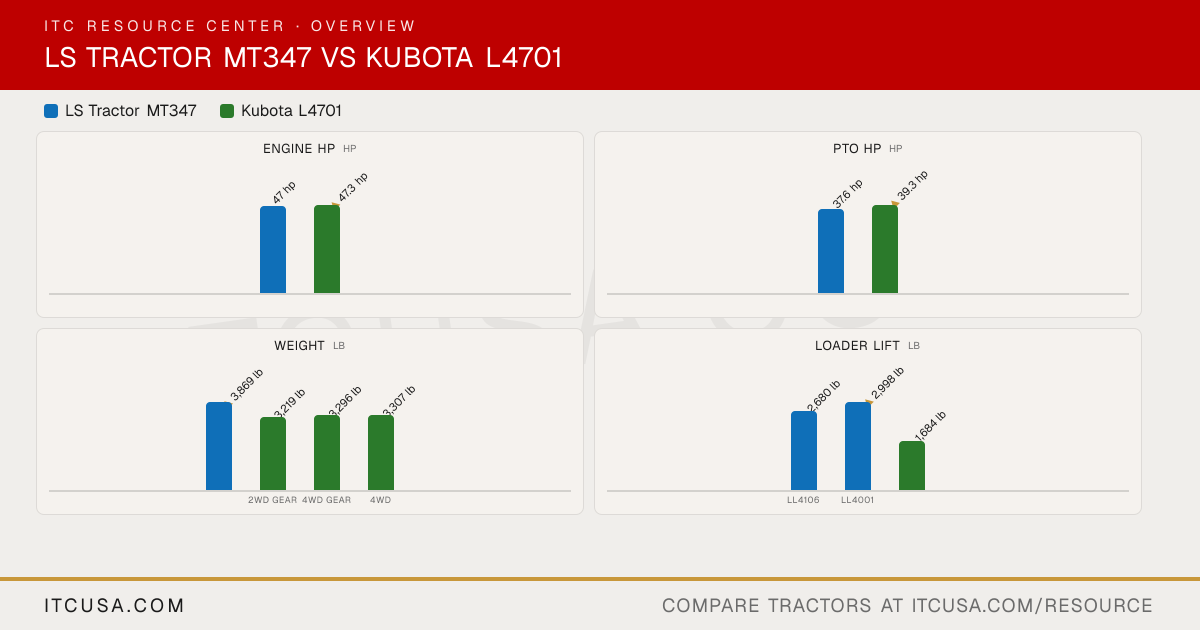

▶ EngineEngine Manufacturer LS Mtron Kubota Engine Model L3C19-T V2403-CR-E4-LB1 Engine Type 3 Cylinder, Liquid-cooled, Diesel, TC, CRDI 4-cylinder, multi-valve, naturally aspirated, common-rail, liquid-cooled diesel No. of Cylinders 3 4 Displacement 114.7 in³ 148.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 47 hp 47.3 hp PTO Power 37.6 hp F (2WD gear), DT (4WD gear): 39.3 hp; HST (4WD): 37.8 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled, water with pressurized radiator Air Cleaner Dry Dry paper dual element Fuel System Common rail direct injection (CRDI) Common-rail, direct injection, electronic control Alternator 70 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Not Published Open center tandem pump, gear type Implement Flow 8.2 gpm 7.8 gpm Steering Flow 4.1 gpm 4.7 gpm Total Hydraulic Flow 12.3 gpm 12.5 gpm Overall Hydraulic Pump Flow 12.3 gpm 12.5 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 Pair (1 Detent, 1 STD) Not Published No. of Optional Remote Valves Not Published Up to 3: self-canceling detent valve or float detent valve ▶ Fluid CapacityFuel Tank Capacity 10.6 gal 13.5 gal Coolant Capacity Not Published 6.9 qt Crankcase Capacity 1.6 gal 8.7 qt Transmission / Hydraulic System Capacity Not Published 10.6 gal Front Axle Fluid Capacity Not Published 6.9 qt ▶ PTO & HitchPTO Type Independent Live independent PTO with hydraulic clutch PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional (2,000 rpm) No mid-PTO offered Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,755 lb 2,870 lb Hitch Lift Capacity (at 24”) 2,469 lb 2,310 lb Lift Control Type Position & Draft Position control (draft control optional) ▶ Transmission & DrivetrainTransmission Type Synchro shuttle F (2WD gear), DT (4WD gear): synchronized shuttle, 8F/8R; HST (4WD): hydrostatic, 3-range No. of Speeds F16 x R16 F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range Max Travel Speed (Forward) Not Published F (2WD gear), DT (4WD gear): 14.9 mph; HST (4WD): 15.8 mph Max Travel Speed (Reverse) Not Published F (2WD gear), DT (4WD gear): 14.3 mph; HST (4WD): 14.2 mph Clutch Not Published F (2WD gear), DT (4WD gear): dry type, single plate; HST (4WD): no transmission clutch Differential Lock & Limited Slip Options Mechanical rear differential lock Rear differential lock standard ▶ Chassis, Steering & ControlsFrame Type Not Published Two-post foldable ROPS (factory certified) with retractable seat belt Steering Hydrostatic Power Steering Hydrostatic power steering Brakes Wet, Multi-disc Mechanical wet disc type, pedals can be locked together Seat Suspension & Adjustability Not Published Not Published Front Axle Type Mechanical front-wheel drive (4WD) F (2WD gear): tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): bevel-gear front axle, non-adjustable tread spacing Front Axle Rating Not Published F (2WD gear): 3,300 lb (at 50.4 in tread); DT (4WD gear), HST (4WD): 3,300 lb (at 45.5 in tread) Drawbar Capacity Not Published 1,430 lb ▶ Dimensions & ManeuverabilityOverall Width 62.5 in 62.4 in Wheelbase 73.2 in F (2WD gear): 72.8 in; DT (4WD gear), HST (4WD): 72.6 in Ground Clearance Not Published 15.2 in Min. Turn Radius without Brakes Not Published F (2WD gear): 10.2 ft; DT (4WD gear), HST (4WD): 11.5 ft Height to Top of ROPS 95 in 91.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Applicable Not Published Overall Length 133 in (frame to link) F (2WD gear): 130.3 in; DT (4WD gear), HST (4WD): 127.4 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 3,869 lb F (2WD gear): 3,219 lb; DT (4WD gear): 3,296 lb; HST (4WD): 3,307 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Applicable Not Published ▶ Tire OptionsTire Size & Options Agricultural, Turf, Industrial R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD) R1 Agricultural - Front 9.5-16 F (2WD gear): 7.5L-15, 6-16; DT (4WD gear), HST (4WD): 8.3-16 R1 Agricultural - Rear 13.6-24 14.9-24 R3 Turf - Front 28x8.5-15 27x8.5-15 (2WD and 4WD); 27x10.5-15 (4WD) R3 Turf - Rear 41x14-20 44x18-20 R4 Industrial - Front 12-16.5 10-16.5 (4WD) R4 Industrial - Rear 17.5L-24 17.5L-24 (4WD) ▶ Loader & AttachmentsQuick Attach Loader System LL4106, LL4001: 2-lever skid-steer coupler, fits universal skid-steer attachments 2-lever quick coupler, tool-free attach and detach Loader Model LL4106; LL4001 LA765 Loader Lift Height LL4106: 94.4 in; LL4001: 104.3 in LA765: 105.2 in Loader Lift Capacity (Full Height) LL4106: 2,680 lb (at pivot pin); LL4001: 2,998 lb (at pivot pin) LA765: 1,684 lb Loader Breakout Force LL4106: 4,063 lb (at pivot pin); LL4001: 4,295 lb (at pivot pin) LA765: 3,153 lbf ▶ WarrantyWarranty Length & Coverage 6-year limited powertrain warranty Not Published
