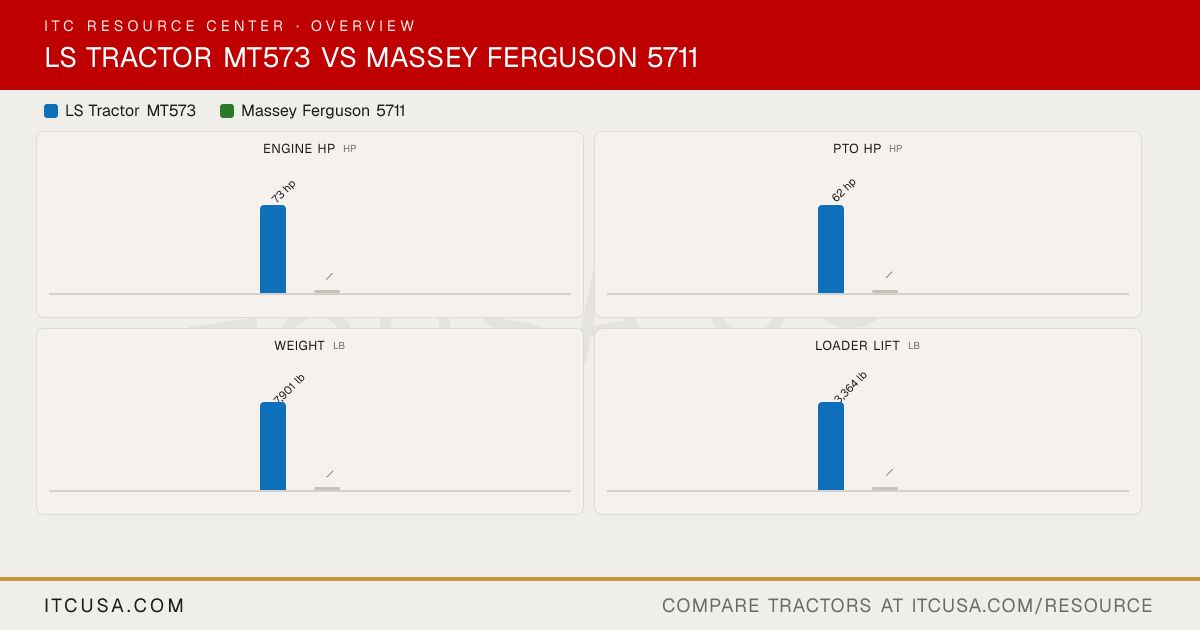

▶ EngineEngine Manufacturer LS Mtron AGCO Power Engine Model L4C25-T 44 AWFC Engine Type In-line vertical, water cooled 4-cycle diesel, CRDI 4-cylinder, intercooled turbocharged, liquid-cooled diesel No. of Cylinders 4 4 Displacement 152.9 in³ 268.5 in³ Rated Engine Speed 2500 rpm 2200 rpm Engine Power (Gross) 73 hp 110 hp PTO Power 62 hp Power Shuttle: 93 hp; Dyna-4: 86 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Liquid cooled Air Cleaner Dry Not Published Fuel System Not Published High-pressure common-rail direct injection (HPCR) Alternator 70 A, 12 V 80 A, 12 V ▶ HydraulicsPump Type Gear type, engine drive Two high-pressure gear pumps Implement Flow 13.2 gpm 15.1 gpm Steering Flow 6.6 gpm Not Published Total Hydraulic Flow 19.8 gpm 26 gpm Overall Hydraulic Pump Flow 19.8 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 26 gpm No. of Standard Remote Valves 3 Pairs (Front), 3 Pairs (Rear) 2 No. of Optional Remote Valves Not Published 1 ▶ Fluid CapacityFuel Tank Capacity 26.4 gal 38.3 gal Coolant Capacity 2.6 gal Not Published Crankcase Capacity 2.1 gal Not Published Transmission / Hydraulic System Capacity 14.5 gal Not Published Front Axle Fluid Capacity 1.5 gal Not Published ▶ PTO & HitchPTO Type Independent Independent, electro-hydraulic engagement via switch PTO Rear 540 / 750 / 1,000 540 / 540E / 1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity 6,614 lb Not Published Hitch Lift Capacity (at 24”) 4,718 lb 7,710 lb Lift Control Type Position & Draft Cab: electric controlled 3-point linkage with draft control; Platform: lever controlled 3-point linkage with draft control ▶ Transmission & DrivetrainTransmission Type MT573C: Synchro Shuttle; MT573CPS: Power Shuttle Power Shuttle: 12F x 12R, 2 ranges, electro-hydraulic shuttle; Dyna-4: 16F x 16R powershift No. of Speeds F20 x R20 Power Shuttle: 12 forward, 12 reverse; Dyna-4: 16 forward, 16 reverse Max Travel Speed (Forward) 19.4 mph 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch MT573C: Dry single clutch; MT573CPS: Wet clutch disks Wet clutch with easy shift knob and electrohydraulic power shuttle lever Differential Lock & Limited Slip Options Electro-hydraulic differential lock (EHD) Electro-hydraulic rear differential lock (rocker switch); hydraulic front differential lock on 4WD ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Cab: tilt and telescopic steering column; Platform: tilt steering column Brakes Not Published Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Seat Suspension & Adjustability Air suspension seat (10° swivel) Cab: air-suspension swivel seat; platform: mechanical spring-suspension seat with armrests Front Axle Type Not Published Heavy-duty 4WD front axle, center driveline Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 77.5 in 64.8 in Wheelbase 84.6 in 95.7 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 13.0 ft Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 104.4 in Not Published Overall Length 150 in (frame to link) Not Published ▶ WeightTractor Weight (Base) MT573C: 6,620 lb; MT573CPS: 6,669 lb 4WD ROPS: 9,195 lb; 4WD Cab: 10,011 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader MT573C: 7,852 lb (6,620 + 1,232, computed); MT573CPS: 7,901 lb (6,669 + 1,232, computed) Not Published ▶ Tire OptionsTire Size & Options Ag 11.2-24 / 16.9-30; R14 W320/85R24 122D / W460/85R30 145D Rear: 460/85R34 standard radial R1 Agricultural - Front 11.2-24 Not Published R1 Agricultural - Rear 16.9-30 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System LL6100: Bobcat-type quick attachment (ISO 24410), latch handle with latch pin Not Published Loader Model LL6100 941X; 946X; FL.3723; FL.3819 Loader Lift Height LL6100: 126.5 in 941X: 148 in; 946X: 148 in; FL.3723: 149 in; FL.3819: 149 in Loader Lift Capacity (Full Height) LL6100: 3,626 lb (at pivot pin) 941X: 2,220 lb; FL.3723: 2,840 lb (to full height, at 31.5 in forward of pivot pin) Loader Breakout Force LL6100: 6,644 lb (at pivot pin) FL.3723: 5,819 lb; FL.3819: 4,893 lb ▶ WarrantyWarranty Length & Coverage Basic 2 years or 750 hours; powertrain 6 years or 1,500 hours Not Published
