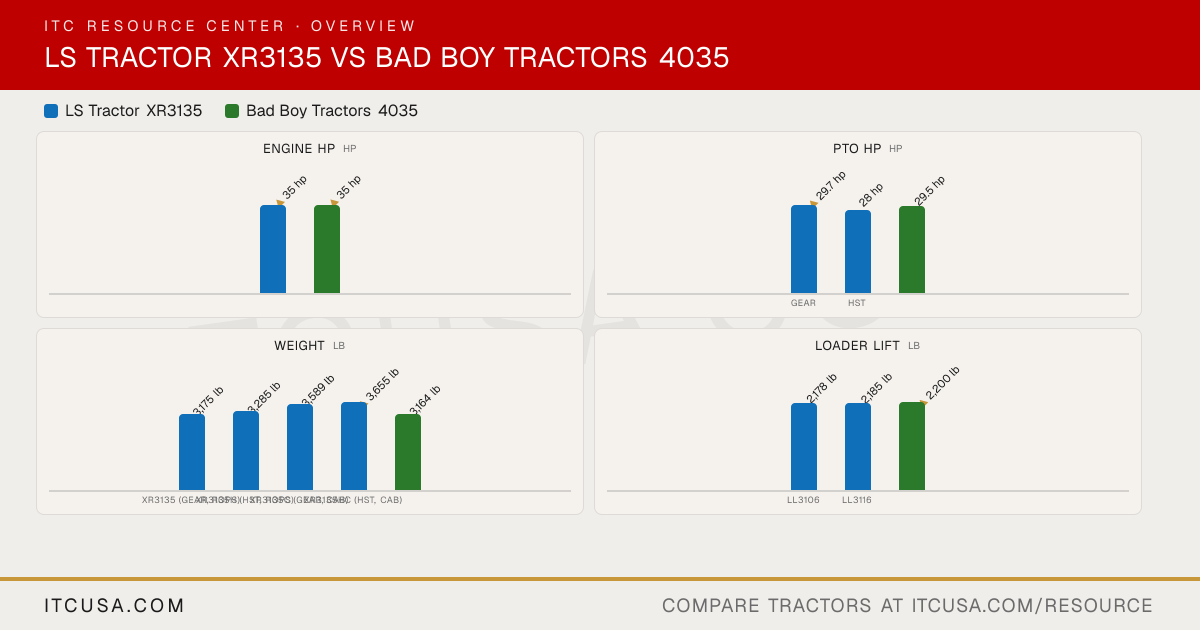

▶ EngineEngine Manufacturer LS TYM Engine Model L3C19-T5 A1700N4-BUTR_4 Engine Type Vertical, water-cooled, 4-cycle diesel Vertical, 4-stroke, water-cooled diesel No. of Cylinders 3 3 Displacement 114.7 in³ 104.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 35 hp 35 hp PTO Power XR3135, XR3135C (gear): 29.7 hp; XR3135H, XR3135HC (HST): 28 hp 29.5 hp Engine Emissions Constraints Tier 4 EPA Final Tier4 Cooling System Type Water-cooled Water-cooled Air Cleaner Dry Not Published Fuel System CRDI (common rail direct injection) Not Published Alternator 70 A, 12 V 50 A, 12 V ▶ HydraulicsPump Type Gear pump, engine driven Not Published Implement Flow 8.2 gpm 8.2 gpm Steering Flow XR3135, XR3135C (gear): 4.1 gpm; XR3135H, XR3135HC (HST): 5.5 gpm 4.4 gpm Total Hydraulic Flow XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm 12.6 gpm Overall Hydraulic Pump Flow XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm 12.6 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 pairs Not Published No. of Optional Remote Valves Optional (2 or 6 quick couplers) Up to 2 ▶ Fluid CapacityFuel Tank Capacity XR3135, XR3135H (ROPS): 10.6 gal; XR3135C, XR3135HC (cab): 12.4 gal 7.13 gal Coolant Capacity 1.9 gal 1.32 gal Crankcase Capacity 1.5 gal 1.14 gal Transmission / Hydraulic System Capacity 7.9 gal 9.77 gal Front Axle Fluid Capacity 1.7 gal 1.69 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm (3-speed 540/750/1000 optional) 540 rpm Mid-PTO Availability Optional, 2000 rpm Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,808 lb 3,307 lb Hitch Lift Capacity (at 24”) 1,433 lb 2,425 lb Lift Control Type Position and draft control Position control ▶ Transmission & DrivetrainTransmission Type XR3135, XR3135C (gear): Synchro shuttle; XR3135H, XR3135HC (HST): HST Hydrostatic (HST), 3-range No. of Speeds XR3135, XR3135C (gear): F12 x R12; XR3135H, XR3135HC (HST): 3 ranges (HST) 3 range (HST) Max Travel Speed (Forward) Not Published 19.08 mph Max Travel Speed (Reverse) Not Published 19.08 mph Clutch Mechanical: dry single clutch; HST: not applicable None (HST) Differential Lock & Limited Slip Options Mechanical differential lock (pedal) Rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet, multi-disc Wet, multi-disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published Selectable 4WD Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 62 in 56.7 in Wheelbase 69 in 65.7 in Ground Clearance Not Published 13.1 in Min. Turn Radius without Brakes 9.2 ft (with brake applied) Not Published Height to Top of ROPS 94 in 96.85 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 86.6 in Not Published Overall Length 128.3 in (bumper to link) 134.88 in ▶ WeightTractor Weight (Base) XR3135 (gear, ROPS): 3,175 lb; XR3135H (HST, ROPS): 3,285 lb; XR3135C (gear, cab): 3,589 lb; XR3135HC (HST, cab): 3,655 lb 3,164 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag, industrial or turf tires at no additional cost R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20 R1 Agricultural - Front 7-14 8.0-16 R1 Agricultural - Rear 11.2-24 12.4-24 R3 Turf - Front 25x8.5-14 Not Published R3 Turf - Rear 41x14-20 Not Published R4 Industrial - Front 25x8.5-14 28x8.50-15 R4 Industrial - Rear 43x16-20 43x16.00-20 ▶ Loader & AttachmentsQuick Attach Loader System LL3106, LL3116: quick attach, skid steer compatible SSQA Loader Model LL3106; LL3116 BBL400 Loader Lift Height LL3106: 92.7 in; LL3116: 94.4 in 104 in Loader Lift Capacity (Full Height) LL3106: 2,178 lb; LL3116: 2,185 lb (at pivot pin) 2,200 lb (at pivot pin) Loader Breakout Force LL3106: 3,450 lb; LL3116: 3,612 lb (at pivot pin) 3,660 lb ▶ WarrantyWarranty Length & Coverage 6-year limited warranty Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
