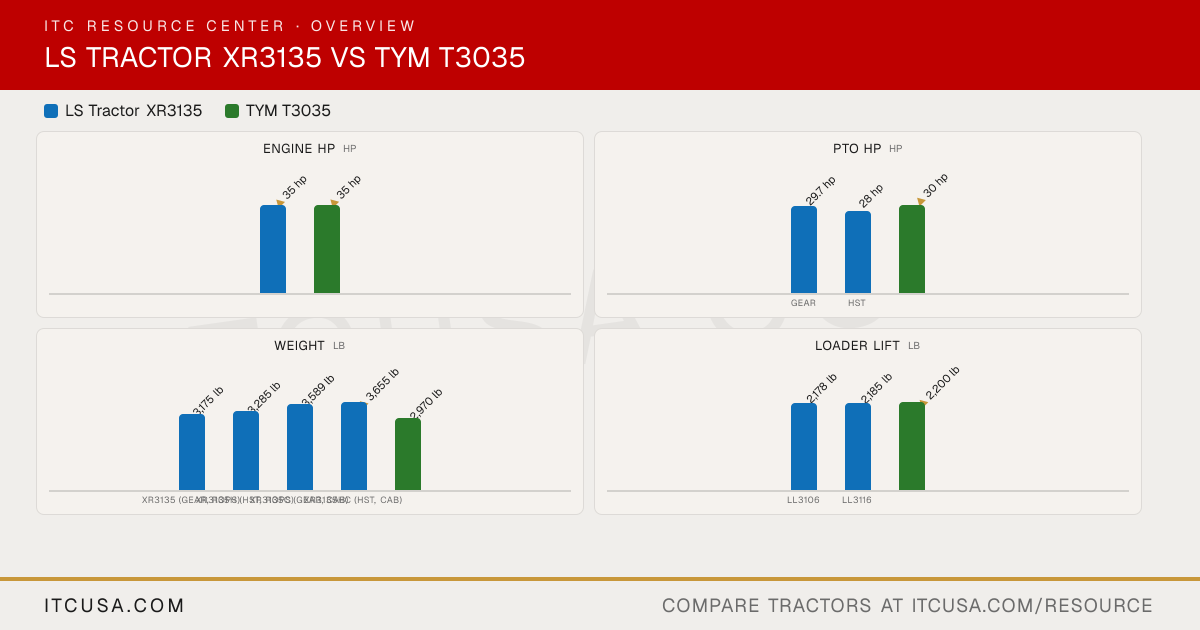

▶ EngineEngine Manufacturer LS TYM Engine Model L3C19-T5 T1700N6 Engine Type Vertical, water-cooled, 4-cycle diesel 3-cylinder, naturally aspirated diesel No. of Cylinders 3 3 Displacement 114.7 in³ 104.5 in³ Rated Engine Speed 2600 rpm 2100 rpm Engine Power (Gross) 35 hp 35 hp PTO Power XR3135, XR3135C (gear): 29.7 hp; XR3135H, XR3135HC (HST): 28 hp 30 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Not Published Air Cleaner Dry Dry element Fuel System CRDI (common rail direct injection) IDI (indirect injection) Alternator 70 A, 12 V 50 A, 12 V ▶ HydraulicsPump Type Gear pump, engine driven Dual gear pump Implement Flow 8.2 gpm 7.5 gpm Steering Flow XR3135, XR3135C (gear): 4.1 gpm; XR3135H, XR3135HC (HST): 5.5 gpm 4.0 gpm Total Hydraulic Flow XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm 11.5 gpm Overall Hydraulic Pump Flow XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm 11.5 gpm Hydraulic System Type Not Published Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 pairs Loader: 4 / Rear: 0 No. of Optional Remote Valves Optional (2 or 6 quick couplers) Up to 4 ▶ Fluid CapacityFuel Tank Capacity XR3135, XR3135H (ROPS): 10.6 gal; XR3135C, XR3135HC (cab): 12.4 gal 8.7 gal Coolant Capacity 1.9 gal 5.3 qt Crankcase Capacity 1.5 gal 4.5 qt Transmission / Hydraulic System Capacity 7.9 gal T3035R: 8.9 gal; T3035H: 9.8 gal Front Axle Fluid Capacity 1.7 gal 6.8 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm (3-speed 540/750/1000 optional) 540 rpm Mid-PTO Availability Optional, 2000 rpm Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,808 lb 3,307 lb Hitch Lift Capacity (at 24”) 1,433 lb 2,425 lb Lift Control Type Position and draft control Position control ▶ Transmission & DrivetrainTransmission Type XR3135, XR3135C (gear): Synchro shuttle; XR3135H, XR3135HC (HST): HST T3035R: Synchromesh; T3035H: HST No. of Speeds XR3135, XR3135C (gear): F12 x R12; XR3135H, XR3135HC (HST): 3 ranges (HST) T3035R: F12 x R12; T3035H: 3-Range Max Travel Speed (Forward) Not Published T3035R: 14.4 mph; T3035H: 18.8 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Mechanical: dry single clutch; HST: not applicable T3035R: Dry single plate; T3035H: None (HST) Differential Lock & Limited Slip Options Mechanical differential lock (pedal) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Brakes Wet, multi-disc Wet, multi-disc Seat Suspension & Adjustability Not Published Suspension seat Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 62 in 56.3 in Wheelbase 69 in 65.7 in Ground Clearance Not Published 14.4 in Min. Turn Radius without Brakes 9.2 ft (with brake applied) 105.5 in Height to Top of ROPS 94 in 97.3 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 86.6 in Not Published Overall Length 128.3 in (bumper to link) 120.9 in (with 3-point hitch) ▶ WeightTractor Weight (Base) XR3135 (gear, ROPS): 3,175 lb; XR3135H (HST, ROPS): 3,285 lb; XR3135C (gear, cab): 3,589 lb; XR3135HC (HST, cab): 3,655 lb 2,970 lb (with ROPS) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag, industrial or turf tires at no additional cost R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24 R1 Agricultural - Front 7-14 8-16 R1 Agricultural - Rear 11.2-24 12.4-24 R3 Turf - Front 25x8.5-14 27x8.5-15 R3 Turf - Rear 41x14-20 41x14.00 R4 Industrial - Front 25x8.5-14 10-16.5 R4 Industrial - Rear 43x16-20 420/70-24 ▶ Loader & AttachmentsQuick Attach Loader System LL3106, LL3116: quick attach, skid steer compatible Not Published Loader Model LL3106; LL3116 L3035 Loader Lift Height LL3106: 92.7 in; LL3116: 94.4 in L3035: 104.9 in Loader Lift Capacity (Full Height) LL3106: 2,178 lb; LL3116: 2,185 lb (at pivot pin) L3035: 2,200 lb (at pivot pin) Loader Breakout Force LL3106: 3,450 lb; LL3116: 3,612 lb (at pivot pin) L3035: 3,422 lb (at pivot pin, ground level) ▶ WarrantyWarranty Length & Coverage 6-year limited warranty Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
