Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

LSTractorXR3140

n/a

LSTractorMT240E

Comparison loaded for 2 tractors.

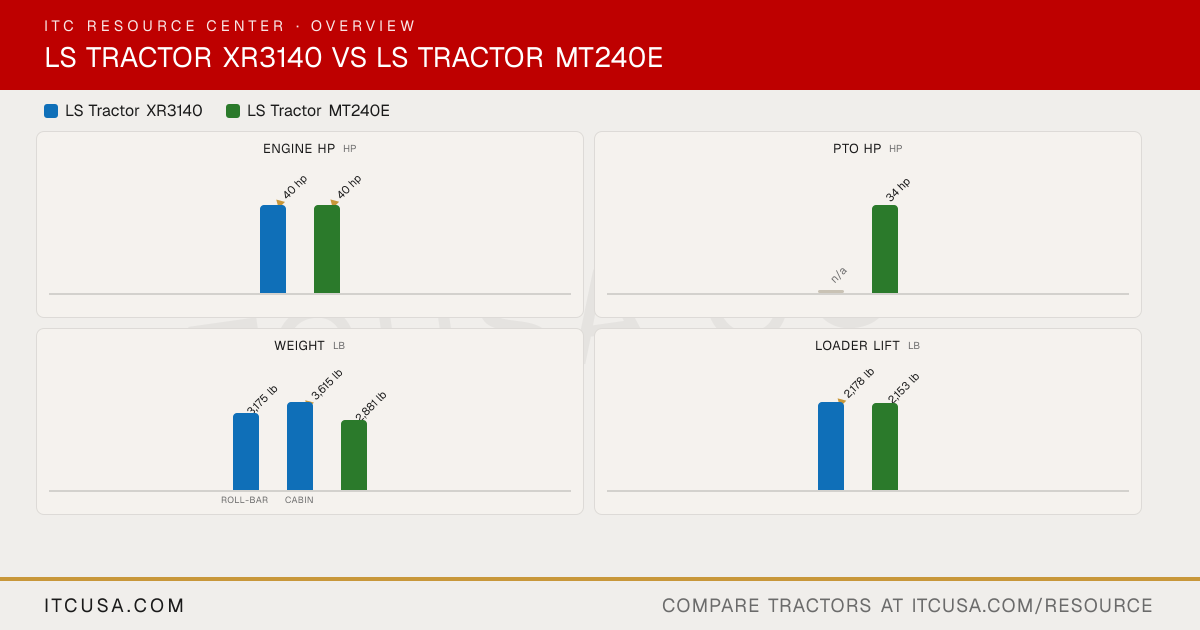

The headline numbers at a glance.

LS Tractor XR3140LS Tractor MT240E

Engine HPhp

▲40 hp

PTO HPhp

n/a

34 hp

Weightlb

3,175 lb

▲3,615 lb

2,881 lb

Roll-barCabin

Loader Liftlb

▲2,178 lb

2,153 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXR3140	LS TractorMT240E


Engine Manufacturer	LS	LS
Engine Model	L3C19-T4	L3C19-T4
Engine Type	4-stroke, vertical, water cooling, CRDI	3-cylinder, liquid-cooled, diesel, turbocharged (TC), CRDI
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	Not Published	34 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Dry
Fuel System	Delphi CRDI (Common Rail Direct Injection)	CRDI (Delphi common rail direct injection)
Alternator	70 A, 12 V	70 A, 12 V

Pump Type	Gear pump type, engine drive	Gear pump, engine driven
Implement Flow	7.8 gpm	8.2 gpm
Steering Flow	4.1 gpm (mechanical); 5.5 gpm (HST)	4.1 gpm
Total Hydraulic Flow	Not Published	12.3 gpm
Overall Hydraulic Pump Flow	Not Published	12.3 gpm
Hydraulic System Type	Not Published	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	None
No. of Optional Remote Valves	Not Published	1 or 2 pairs (optional)

Fuel Tank Capacity	10.6 gal (roll-bar); 12.4 gal (cabin)	7.4 gal
Coolant Capacity	1.9 gal	1.9 gal
Crankcase Capacity	1.5 gal	1.5 gal
Transmission / Hydraulic System Capacity	7.9 gal	8.5 gal
Front Axle Fluid Capacity	1.7 gal	1.7 gal

PTO Type	Independent PTO with wet disk clutch	Independent (wet disc clutch)
PTO Rear	540 (standard); 540 / 750 / 1,000 (optional 3-speed)	Standard (540 rpm)
Mid-PTO Availability	Optional, 2000 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Position and draft control	Position control

Transmission Type	Synchro-shuttle (mechanical)	Synchro Shuttle
No. of Speeds	F12 x R12	F12 x R12
Max Travel Speed (Forward)	14.33 mph	14.33 mph
Max Travel Speed (Reverse)	13.63 mph	13.63 mph
Clutch	Dry single clutch (mechanical only)	Dry single clutch
Differential Lock & Limited Slip Options	Mechanical pedal type differential lock	Mechanical pedal type

Frame Type	Not Published	Not Published
Steering	Hydrostatic	Hydrostatic power steering
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	62 in	54 in
Wheelbase	69 in	69 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	10.79 ft (left); 11.02 ft (right)
Height to Top of ROPS	Not Published	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	86.6 in	Not Published
Overall Length	128.3 in (bumper to link)	121 in (frame to link)

Tractor Weight (Base)	Roll-bar: 3,175 lb; Cabin: 3,615 lb	2,881 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag 7-14 / 11.2-24; Turf 25x8.5-14 / 41x14-20; Industrial 25x8.5-14 / 43x16-20	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	7-14 (4PR)	7-14
R1 Agricultural - Rear	11.2-24 (8PR)	11.2-24
R3 Turf - Front	25x8.5-14	25x8.50-14
R3 Turf - Rear	41x14-20	41x14-20
R4 Industrial - Front	25x8.5-14	27x8.50-14
R4 Industrial - Rear	43x16-20	43x16-20

Quick Attach Loader System	Not Published	Not Published
Loader Model	LL3106	LL3302
Loader Lift Height	LL3106: 92.7 in	LL3302: 94 in
Loader Lift Capacity (Full Height)	LL3106: 2,178 lb (at pivot pin)	LL3302: 2,153 lb (at pivot pin, full height)
Loader Breakout Force	LL3106: 3,450 lb (at pivot pin)	LL3302: 3,579 lb (at pivot pin)

Warranty Length & Coverage	General: 2 years or 750 hours (whichever occurs first). Extended powertrain: 6 years or 1,500 hours (whichever occurs first), for tractors retailed after January 1, 2017	6-year limited warranty
