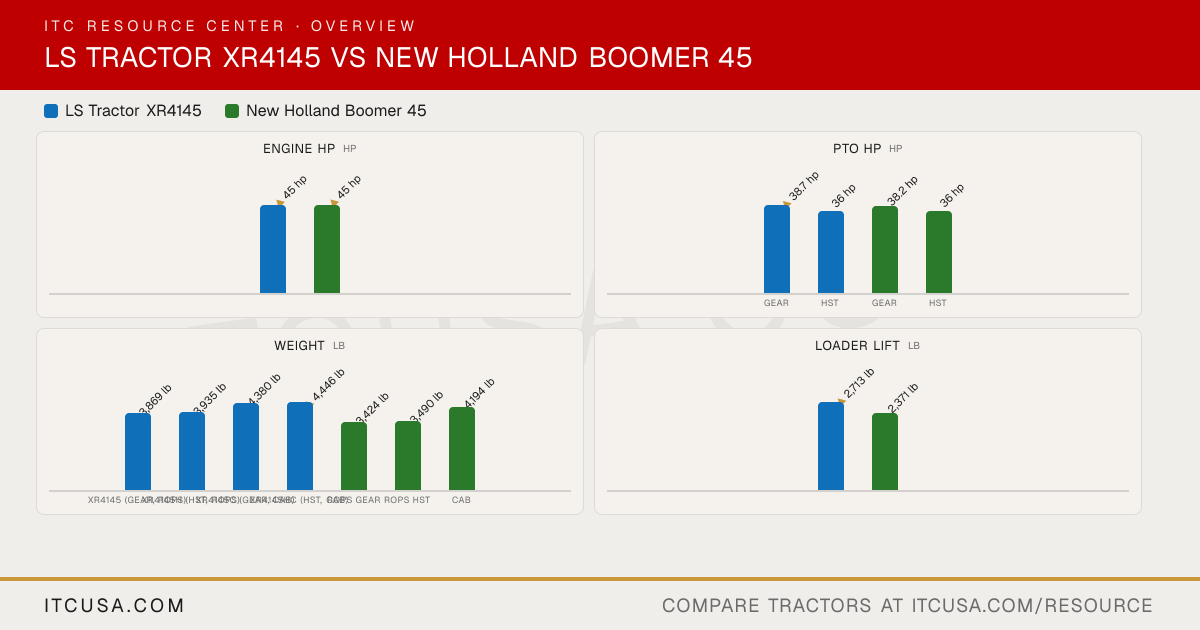

▶ EngineEngine Manufacturer LS LS Mtron Engine Model L3C19-T L3CRV-T9A Engine Type 3-cylinder in-line vertical, water-cooled, 4-cycle turbo diesel, CRDI 3-cylinder, turbocharged, liquid-cooled diesel No. of Cylinders 3 3 Displacement 114.7 in³ 114.7 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 45 hp 45 hp PTO Power XR4145, XR4145C (gear): 38.7 hp; XR4145H, XR4145HC (HST): 36 hp Gear: 38.2 hp; HST: 36 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Liquid cooled Air Cleaner Dry Replaceable primary and inner elements Fuel System CRDI (common rail direct injection) Electronically controlled common rail direct injection Alternator 70 A, 12 V ROPS: 70 A, 12 V; Cab: 85 A, 12 V ▶ HydraulicsPump Type Gear pump, engine driven Gear Implement Flow 8.2 gpm 8.2 gpm Steering Flow XR4145, XR4145C (gear): 4.1 gpm; XR4145H, XR4145HC (HST): 5.5 gpm Gear: 4.2 gpm; HST: 5.3 gpm Total Hydraulic Flow XR4145, XR4145C (gear): 12.3 gpm; XR4145H, XR4145HC (HST): 13.7 gpm Gear: 12.4 gpm; HST: 13.5 gpm Overall Hydraulic Pump Flow XR4145, XR4145C (gear): 12.3 gpm; XR4145H, XR4145HC (HST): 13.7 gpm Gear: 12.4 gpm; HST: 13.5 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 pairs 1 No. of Optional Remote Valves 1 or 3 optional (2 or 6 quick couplers) Up to 2 (second valve optional) ▶ Fluid CapacityFuel Tank Capacity XR4145, XR4145H (ROPS): 10.6 gal; XR4145C, XR4145HC (cab): 12.4 gal ROPS: 10.5 gal; Cab: 12.4 gal Coolant Capacity 2.3 gal 2.3 gal Crankcase Capacity 1.6 gal 5.8 qt Transmission / Hydraulic System Capacity 11.4 gal 11.4 gal Front Axle Fluid Capacity 2.1 gal 2.2 gal ▶ PTO & HitchPTO Type Independent Independent, electro-hydraulic engagement PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional, 2000 rpm Standard (2000 rpm) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,755 lb 2,756 lb Hitch Lift Capacity (at 24”) 2,469 lb 2,116 lb Lift Control Type Position and draft control Position control (draft control optional) ▶ Transmission & DrivetrainTransmission Type XR4145, XR4145C (gear): Synchro shuttle; XR4145H, XR4145HC (HST): HST Gear: 16x16 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal No. of Speeds XR4145, XR4145C (gear): F16 x R16; XR4145H, XR4145HC (HST): 3 ranges (HST) Gear: 16F/16R; HST: 3-range Max Travel Speed (Forward) Not Published Gear: 17.0 mph; HST: 17.9 mph Max Travel Speed (Reverse) Not Published Gear: 15.3 mph; HST: 11.37 mph Clutch Mechanical: dry single clutch; HST: not applicable Gear: dry single disc (10.8 in); HST: n/a Differential Lock & Limited Slip Options Mechanical differential lock (pedal) Mechanical rear differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Wet, multi-disc Wet multi-disc Seat Suspension & Adjustability Not Published ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests Front Axle Type Not Published Four-wheel drive (FWD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Short position: 2,317 lb; Regular position: 1,598 lb; Extended position: 1,091 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 133 in 128.1 in Overall Width 62.5 in 69.1 in Wheelbase 73.2 in 73.2 in Ground Clearance Not Published 15 in Min. Turn Radius without Brakes 9.5 ft (with brake applied) 111.8 in (right turn); 123.2 in (left turn) (with brake applied) Height to Top of ROPS 93 in 97.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 92 in 94 in ▶ WeightTractor Weight (Base) XR4145 (gear, ROPS): 3,869 lb; XR4145H (HST, ROPS): 3,935 lb; XR4145C (gear, cab): 4,380 lb; XR4145HC (HST, cab): 4,446 lb ROPS Gear: 3,424 lb; ROPS HST: 3,490 lb; Cab: 4,194 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag, industrial or turf tires at no additional cost R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 9.5-16 9.5-16 R1 Agricultural - Rear 13.6-24 13.6-24 R3 Turf - Front 28x8.5-15 28x8.50-15 R3 Turf - Rear 41x14-20 41x14.00-20 R4 Industrial - Front 12-16.5 12x16.5 R4 Industrial - Rear 17.5L-24 17.5Lx24 ▶ Loader & AttachmentsQuick Attach Loader System LL4104: quick attach, skid steer compatible New Holland Quick Mount loader; optional skid steer quick attach plates Loader Model LL4104 260TLA Loader Lift Height LL4104: 96.3 in 260TLA: 109 in Loader Lift Capacity (Full Height) LL4104: 2,713 lb 260TLA: 2,371 lb Loader Breakout Force LL4104: 3,802 lb 260TLA: 4,081 lb ▶ WarrantyWarranty Length & Coverage 5-year limited warranty Boomer Guard6 limited warranty: 2 years/750 hours full coverage plus 4 more years of powertrain coverage (6 years/1,500 hours total)
