LS Tractor XU6168 vs LS Tractor MT473CPS | Side-by-side comparison | ITC Resource Center
Compare Tractors

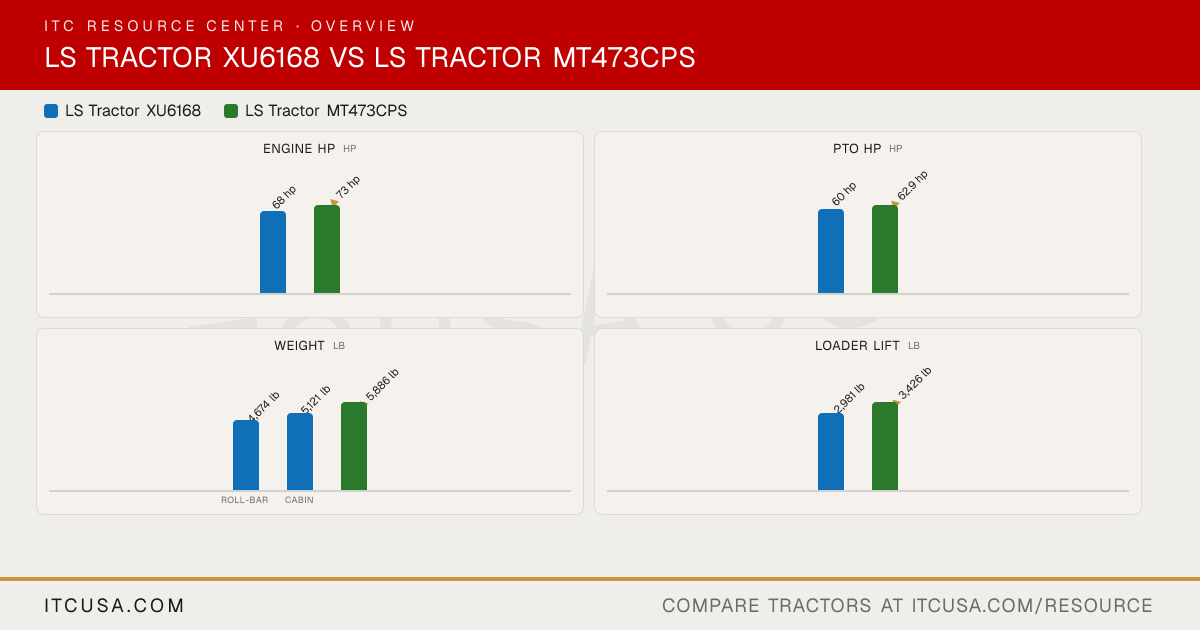

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Standard Ag 9.5-24 / 16.9-28; Industrial 10.5/80x18 10PR / 19.5Lx24 8PR; Large Ag 11.2-24 / 16.9-30; R14 320/85R20 119D / 420/75R34 142D
R1 Agricultural - Front
9.5-20
9.5-24 (Standard Ag); 11.2-24 (Large Ag)
R1 Agricultural - Rear
16.9-24
16.9-28 (Standard Ag); 16.9-30 (Large Ag)
R3 Turf - Front
36x13.5-15
Not Published
R3 Turf - Rear
16.9-24
Not Published
R4 Industrial - Front
10.5/80-18
10.5/80x18 10PR
R4 Industrial - Rear
19.5L-24
19.5Lx24 8PR
Quick Attach Loader System
Not Published
Not Published
Loader Model
LL5106
LL5001
Loader Lift Height
LL5106: 116.3 in
LL5001: 132.9 in (height position); 116.8 in (power position)
Loader Lift Capacity (Full Height)
LL5106: 2,981 lb (at pivot pin)
LL5001: 3,426 lb (height position, at pivot pin, max height); 3,488 lb (power position, at pivot pin, max height)
Loader Breakout Force
LL5106: 4,767 lb (at pivot pin)
Not Published
Warranty Length & Coverage
General: 2 years or 750 hours (whichever occurs first). Extended powertrain: 6 years or 1,500 hours (whichever occurs first), for tractors retailed after January 1, 2017
Basic 2 years or 750 hours; powertrain 6 years or 1,500 hours
