Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

LSXJ2025H

—

KubotaLX2610SU

Comparison loaded for 2 tractors.

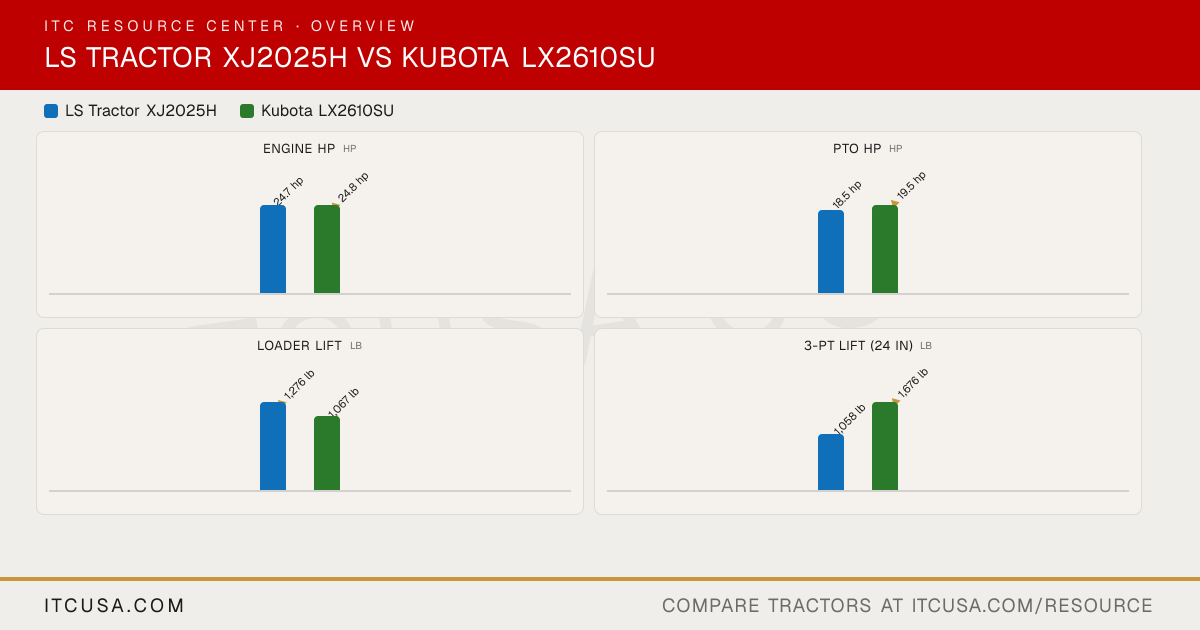

The headline numbers at a glance.

LS Tractor XJ2025HKubota LX2610SU

Engine HPhp

24.7 hp

▲24.8 hp

PTO HPhp

18.5 hp

▲19.5 hp

Weightlb

—

Loader Liftlb

▲1,276 lb

1,067 lb

3-Pt Lift (24 in)lb

1,058 lb

▲1,676 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXJ2025H	KubotaLX2610SU


PTO Power	18.5 hp	19.5 hp
Alternator	50 A, 12 V	Not Published
Air Cleaner	Dry	4.5 inch Dual paper element
Engine Type	3-cylinder, Indirect-injection (swirl chamber), Water-cooled	E-TVCS, liquid cooled, 3-cylinder, diesel
Fuel System	Indirect injection (in-line pump)	Not Published
Displacement	80.4 in³	77 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2500 rpm
Cooling System Type	Water-cooled	Pressurized radiator
Engine Manufacturer	Mitsubishi	Kubota
Engine Power (Gross)	24.7 hp	24.8 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Transmission drive pump	Dual pump
Steering Flow	2.6 gpm	Not Published
Implement Flow	5.9 gpm	Not Published
Total Hydraulic Flow	8.5 gpm	8.7 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	8.5 gpm	8.7 gpm
No. of Optional Remote Valves	1 pair (2 outlets; optional)	Not Published
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Electro-hydraulic rear PTO / mid-PTO	Independent
Lift Control Type	Position control	Position control valve
Hitch Lift Capacity	1,433 lb	2139 lb
Mid-PTO Availability	Standard (2000 rpm)	Not Applicable
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1,058 lb	1676 lb

R3 Turf - Rear	320/65-16.5	Not Published
R3 Turf - Front	23X8.50-12	Not Published
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	305/70-16.5 (6PR)	12.4-16 / 15-19.5
R4 Industrial - Front	23X8.50-12 (4PR)	23X8.50-14 / 25X8.50-14
R1 Agricultural - Rear	255/75-15.3	12.4-16
R1 Agricultural - Front	23X10.50-12	7.0-12

Coolant Capacity	1.0 gal	4.5 qt
Crankcase Capacity	1.1 gal	4.2 qt
Fuel Tank Capacity	6.6 gal	7.1 gal
Front Axle Fluid Capacity	0.8 gal	Not Published
Transmission / Hydraulic System Capacity	5.3 gal	4.0 gal

Loader Lift Height	85.7 in	84 in
Loader Breakout Force	1,687 lb	2245 lb
Quick Attach Loader System	LL2102: Quick-attach front end loader	Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Lift Capacity (Full Height)	1,276 lb	1067 lb

Clutch	Not Applicable	N/A
No. of Speeds	2 ranges	3 ranges
Transmission Type	Hydrostatic Drive	Hydrostatic transmission
Max Travel Speed (Forward)	Not Published	11.2 mph
Max Travel Speed (Reverse)	Not Published	8.4 mph
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Differential lock standard

Brakes	Wet, multi-disc	Multi-plate wet disc
Steering	Hydrostatic power steering	Hydraulic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Front wheel mechanical assist (4WD)	Not Published
Drawbar Capacity	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Standard seat

Wheelbase	59 in	65.6 in
Overall Width	44.9 in	53.7 in
Ground Clearance	Not Published	14.6 in
Height to Top of ROPS	84.5 in	88.4 in
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	103 in	Not Published
