Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

Mahindra1120HSTCab

n/a

KiotiCS2220

Comparison loaded for 2 tractors.

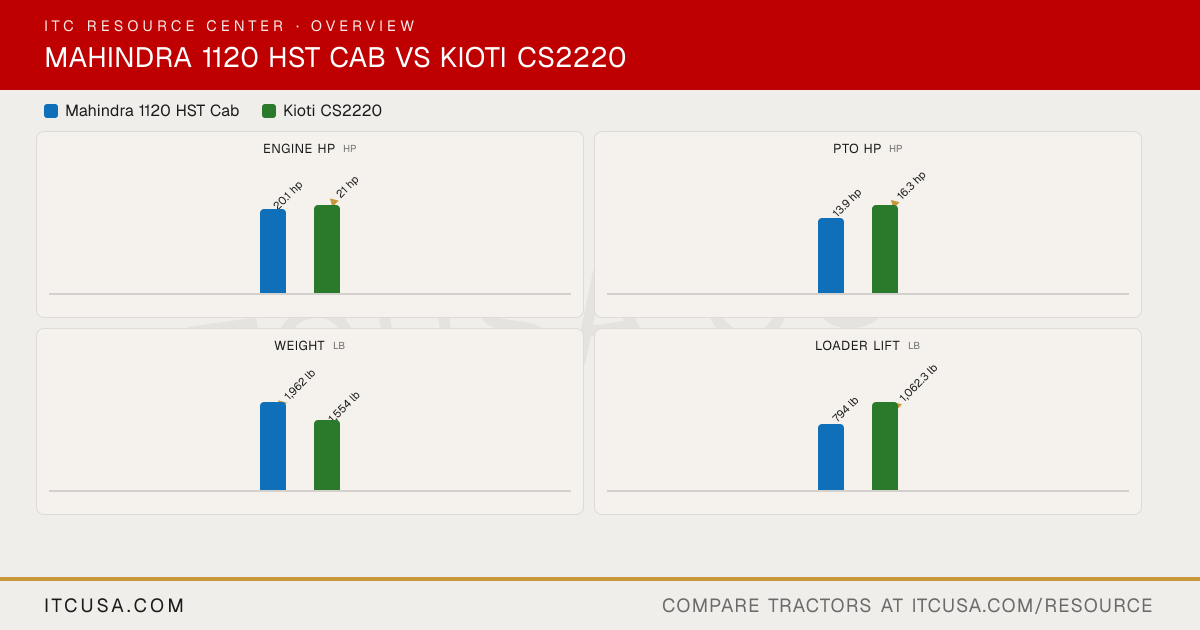

The headline numbers at a glance.

Mahindra 1120 HST CabKioti CS2220

Engine HPhp

20.1 hp

▲21 hp

PTO HPhp

13.9 hp

▲16.3 hp

Weightlb

▲1,962 lb

1,554 lb

Loader Liftlb

794 lb

▲1,062.3 lb

3-Pt Lift (24 in)lb

▲771 lb

700 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1120 HST Cab	KiotiCS2220


Engine Manufacturer	Mitsubishi	KIOTI (Daedong)
Engine Model	MVL3E3	3C100LWH-U3
Engine Type	Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine	In-Line Vertical, Water-Cooled 4-Cycle Diesel (3-cylinder)
No. of Cylinders	3	3
Displacement	67.2 in³	61.5 in³
Rated Engine Speed	2900 rpm	3200 rpm
Engine Power (Gross)	20.1 hp	21 hp
PTO Power	13.9 hp	16.3 hp
Engine Emissions Constraints	Not Published	U.S. EPA non-road emission regulation
Cooling System Type	Water-Cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect Injection	Injection pump
Alternator	55 A, 12 V	50 A, 12 V

Pump Type	Not Published	Gear
Implement Flow	7.6 gpm	7.0 gpm
Steering Flow	3.8 gpm	Not Published
Total Hydraulic Flow	11.2 gpm	7.0 gpm
Overall Hydraulic Pump Flow	11.2 gpm	7.0 gpm
Hydraulic System Type	Open Center, full-live hydraulic with position control	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Single or dual	Not Published

Fuel Tank Capacity	6.6 gal	6.7 gal
Coolant Capacity	Not Published	0.87 gal
Crankcase Capacity	Not Published	1.0 gal
Transmission / Hydraulic System Capacity	Not Published	2.75 gal
Front Axle Fluid Capacity	Not Published	0.53 gal

PTO Type	Independent Wet Clutch	Independent
PTO Rear	540 rpm @ 2837 rpm	540 rpm
Mid-PTO Availability	Optional; 2500 rpm @ 2837 rpm	Available (2,200 rpm)
Category, 3-Point Hitch	CAT I with check chains	Category I
Hitch Lift Capacity	Not Published	1,580 lb
Hitch Lift Capacity (at 24”)	771 lb	700 lb
Lift Control Type	Position Control	Position

Transmission Type	HST - 2 Range	Hydrostatic (HST)
No. of Speeds	Infinite forward and reverse (2 ranges)	Infinite, 2 range (High/Low)
Max Travel Speed (Forward)	7.3 mph	9.6 mph
Max Travel Speed (Reverse)	Not Published	6.6 mph
Clutch	Not Published	None (hydrostatic transmission)
Differential Lock & Limited Slip Options	Not Published	Rear differential lock (standard)

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic power steering
Brakes	Single Pedal	Wet multi disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	100.4 in	99.3 in
Overall Width	46.3 in	45.9 in
Wheelbase	55.1 in	55.1 in
Ground Clearance	6.7 in	6.4 in
Min. Turn Radius without Brakes	7.2 ft (with brake applied)	8.2 ft (with brake applied)
Height to Top of ROPS	Not Published	87.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	80.5 in	Not Published

Tractor Weight (Base)	1962 lb	1,554 lb
Weight with ROPS and Loader	Not Published	2,127 lb
Weight with Cab and Loader	2368 lb	Not Published

Tire Size & Options	R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear
R1 Agricultural - Front	Not Published	18x8.5-10
R1 Agricultural - Rear	Not Published	26x12.00-12
R3 Turf - Front	18x8.5-10	18x8.5-10
R3 Turf - Rear	26x12-12	26x12.00-12
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12-12	26x12.00-12

Quick Attach Loader System	L11: Front loader skid-steer couplers for superfast hookups	Quick attach (QA) bucket, 48 in
Loader Model	L11	SL2420
Loader Lift Height	L11: 68 in	SL2420: 73.7 in
Loader Lift Capacity (Full Height)	L11: 794 lb	SL2420: 1,062.3 lb
Loader Breakout Force	L11: 1433 lb	SL2420: 1,329.0 lb

Warranty Length & Coverage	7-Year Limited Powertrain Warranty	Tractors (Non-Commercial Application): 24 months, unlimited hours, parts & labor; Non-commercial powertrain (engine and driveline) on qualifying tractors: 72 months, unlimited hours, parts & labor

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection
